Goulds Water Technology

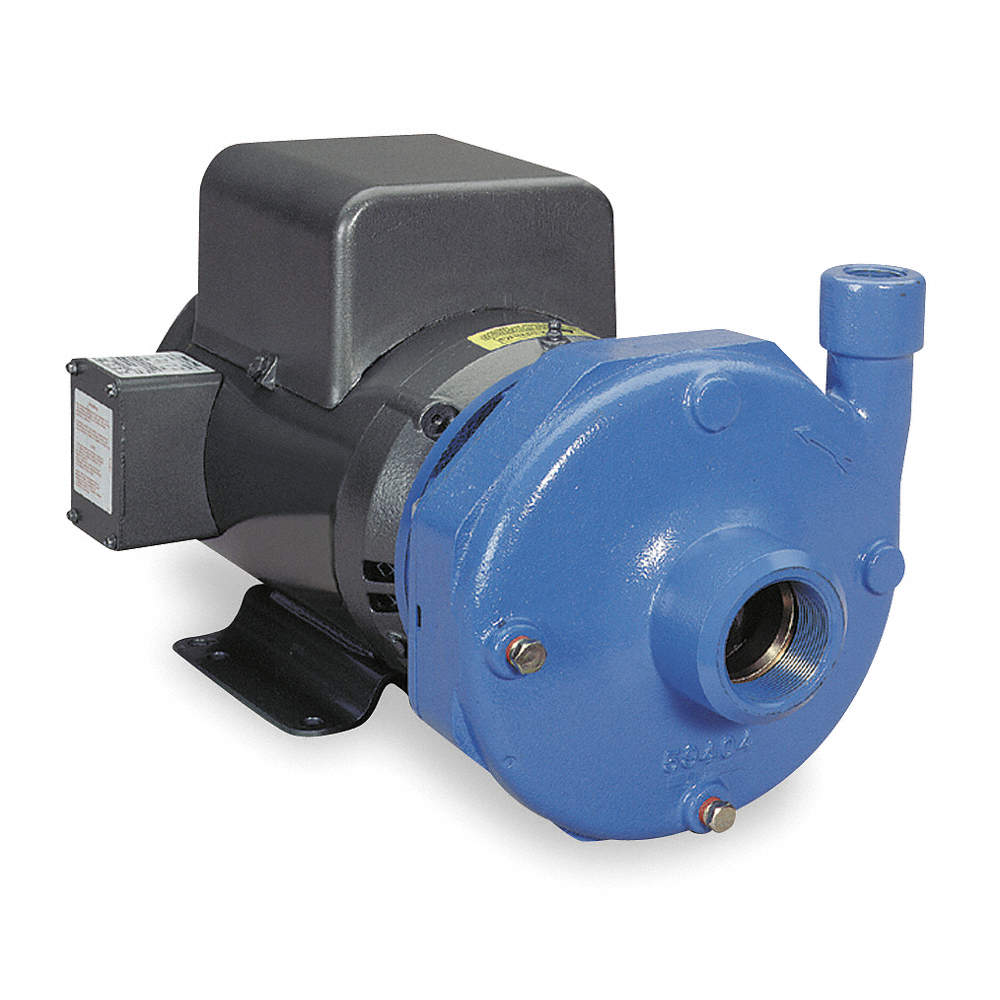

Pump Centrifugal Cast Iron 5 Hp 2 Inch x 1 1/2 In | 3CCV1 | Worldwide Delivery | +44 203 287 5224 | [email protected]

Goulds Water Technology . 5BF1K4D0

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameGoulds Water Technology
DimensionUnitinch
GraingerSku3CCV1
UPCNone
UnitOfMeasureEA
Voltage230VAC
Weight209
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
extendedLead26
extendedQty-2
height17.6
jsonUrlData924526ffbdad25e5923b
length24.8
moq, multiple, tierMinQty1, Phase - Pumps, Phase1
MPN5BF1K4D0
perItemShipping200.00
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG1359486
tierPrice15009.0
urlhttps://www.zoro.com/goulds-water-technology-cast-iron-7-12-hp-centrifugal-pump-230v-5bf1k4d0/i/G1359486/
width15
HP - Pumps, Horsepower7 1/2 hp
Voltage - Pumps240V AC
Housing Material - Pumps, Pump Housing MaterialCast Iron
Inlet Size - Pumps2 in NPT
Outlet Size - Pumps1-1/2 in NPT
Max Head, Maximum Feet of Head140 ft
Max Pressure - Pumps, Max Pressure61 psi
Motor Enclosure - PumpsTotally Enclosed Fan-Cooled
Hz60
GPM of Water @ 140 Ft of Head, GPM of Water @ 200 Ft of Head, GPM of Water @ 10 Ft of Head, GPM of Water @ 240 Ft of Head, GPM of Water @ 280 Ft of Head, GPM of Water @ 120 Ft of Head, GPM of Water @ 20 Ft of Head, GPM of Water @ 160 Ft of Head, GPM of Water @ 30 Ft of Head, GPM of Water @ 25 Ft of Head, GPM of Water @ 15 Ft of Head, GPM of Water @ 130 Ft of Head, GPM of Water @ 260 Ft of Head, Includes, GPM of Water @ 110 Ft of Head, GPM of Water @ 5 Ft of Head, GPM of Water @ 180 Ft of Head, GPM of Water @ 220 Ft of Head-
GPM of Water @ 80 Ft of Head173
Max Specific Gravity1.0
Max Liquid Temp, Maximum Media Temperature212 Degrees F
Frame, Motor Frame Designation184JM
GPM of Water @ 40 Ft of Head200
Inlet2" NPT
Max GPM @ Head195 @ 50 ft
HP7-1/2
Width16 1/4 in
GPM of Water @ 60 Ft of Head186
Motor TypeJM
Height11 1/4 in
Motor Enclosure, Motor Enclosure TypeTEFC
Outlet1-1/2" NPT
Wetted MaterialsStainless Steel, Carbon, Cast Iron, Bronze, Ceramic, Buna-N
Best Efficiency Range GPM @ Head105 to 135 gpm @ 115 to 135 ft
GPM of Water @ 70 Ft of Head180
GPM of Water @ 90 Ft of Head163
Port Rotation90 Increments
Impeller MaterialBronze
Max Case Pressure175 psi
Impeller TypeClosed
Seal MaterialBuna-N Elastomers, Carbon/Ceramic Face, 316 Stainless Steel Metal Parts
GPM of Water @ 100 Ft of Head152
Length, Length (Straight Wireway)22 5/16 in
DutyContinuous
ItemCentrifugal Pump
Inlet Pressure100 psi
Item - Straight Centrifugal PumpsStraight Centrifugal High Head Pump
Housing MaterialCast iron
Manufacturers Warranty Length1 yr
Amps21
GPM of Water @ 50 Ft of Head195
Max Dia Solids5/16 in
Motor RPM, Maximum RPM3,500 RPM
Min GPM @ Head50 @ 140 ft
Best Efficiency GPM @ Head125 @ 120 ft
FeaturesBack Pull Out to Reduce Maintenance Down Time, Dynamic Balancing, Renewable Wear Rings
Best Efficiency Flow125 gpm
Discharge TypeNPT
Intake and Discharge Size2 in , 1 1/2 in
Flow Rate @ 220 ft of Head (Maximum), Flow Rate @ 300 ft of Head (Maximum), Flow Rate @ 100 ft of Head (Maximum), Flow Rate @ 10 ft of Head (Maximum), Flow Rate @ 1 ft of Head (Maximum), Flow Rate @ 240 ft of Head (Maximum), Flow Rate @ 15 ft of Head (Maximum)Not Applicable
Frequency60 Hz
Overall Height9.5 in
For Use With Potable SystemsYes
Seal TypeMechanical Type 21
Overall Width8.6 in
Pump Housing Material BroadCI
Compatible Intake Pipe Size2 in
Nominal Voltage230V AC
StandardsANSI 61, NSF Certified
Maximum Flow Rate195 gpm
Compatible with Media TypeWater
Minimum Flow Rate40 gpm

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG1359486111 @ $5009.00
Grainger3CCV11111 @ $4043.00
Raptor SuppliesAC8LTB111 @ $6160.16
pumpproducts.com5BF1K4D01((Usually Ships 3-5 Days))11 @ $4809.00
