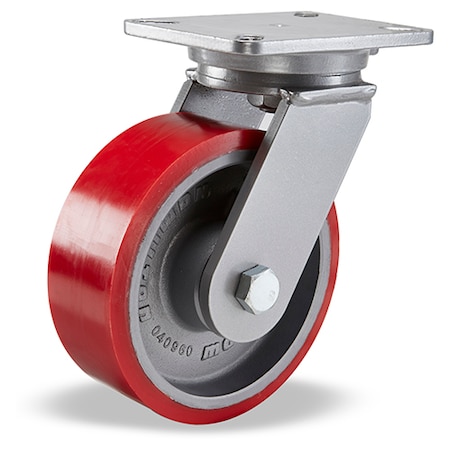

Champion Swivel Caster, 8" x 3" Ultralast Polyurethane (95A) on Forged Steel Wheel with 3/4" Precision Tapered Bearing

The Hamilton S-CH-83TRT features an 8-inch diameter by 3-inch wide ultralast polyurethane wheel with a -3/4 inch sealed precision tapered roller bearing and swivel design.

Champion Swivel Caster, 8" x 3" Ultralast Polyurethane (95A) on Forged Steel Wheel with 3/4" Precision Tapered Bearing

Hamilton . S-CH-83TRT

Gallery

Attributes

Brand name, Manufacturer name, ManHamilton
Manufacturer, Brand, Label, Publisher, StudioHamilton Hamilton Casters
CategoryId, CategoryIdL36740
CategoryIdL114394
CategoryIdL24473
CategoryL1Material Handling
CategoryL2Casters & Wheels
CategoryL3Casters
CategoryL4Plate Casters
DimensionUnitinch
GTIN, UPCNone
GraingerSku, MPN, Part Number, Model, Keyword, ModelNumber, Model_number, PartNumber, Part_numberS-CH-83TRT
UnitOfMeasureEA
Weight39 2.43 39.0 39.00
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabel, AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
countryOfOriginUS
height, length, moq, multiple, tierMinQty1, width, Number of Wheels, Case, Item_package_quantity, NumberOfItems, Number_of_items, PackageQuantity1
jsonUrlData924526ffbdad25e5923b
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG3733239
snippetChampion Swivel Caster, 8" x 3" Ultralast Polyurethane (95A) on Forged Steel Wheel with 3/4" Precision Tapered Bearing
tierPrice1469.99
urlhttps://www.zoro.com/hamilton-champion-swivel-caster-8-x-3-ultralast-polyurethane-95a-on-forged-steel-wheel-s-ch-83trt/i/G3733239/
Product GroupHome Improvement
Wheel Dia8
Wheel Width3
Plate Size5 1/4 x 7 1/4
Mounting Bolt Dia0.5
Mounting Height10.5
Caster Wheel ShapeStandard
Caster Wheel/Tread MaterialPolyurethane
Load Rating2500
Caster Temp Range-50 to 200 deg(F)
Thread Guards, Non-MarkingNo
Frame FinishPowder Coat
Inside Bolt Hole Spacing3 3/8 x 5 1/4
Outside Bolt Hole Spacing4 1/8 x 6 1/8
Caster Plate Hole PatternA
Core ColorGray
Caster Core MaterialCast iron
StandardsICWM
Caster Product Group, ItemSwivel Caster
Caster Frame MaterialForged Steel
Caster Wheel BearingsTapered
Replacement WheelW-830-TRT-3/4
ASIN, AsinB00UJOV6U0 B0876D1YD2
BindingMisc.
Bullet_point-3/4" Sealed Precision Tapered Roller Bearing Capacity: 3000 lbs. Overall Height: 10.5" Wheel Dia.xW: 8x3" Wheel Type: Polyurethane
CatTools & Home Improvement
CatId228013
CatTree228013 468240 551240
ClassificationId511228
DisplayNameHardware
FeatureWheel Type: Polyurethane
Height10.5 10.50 1000 3.0 3.00 500 75
IsDeadAsinTrue
ItemClassificationBASE_PRODUCT
ItemName, Item_name, TitleHamilton Casters Hamilton Champion Forged Swivel 8 x 3 Ultralast Tapered 3000 Lb. Caster Hamilton Champion Casters - 8"Dia.X3"W Ultralast Polyurethane Wheel - -3/4" Sealed Precision Tapered Roller Bearing - Swivel
Item_package_weight39.0
Item_type_keywordplate-casters
Item_weight2.43 39.0
Length0.0 0.00 10.5 10.50 8.0
Linkhttps://m.media-amazon.com/images/I/41lwwB1px+L._SL75_.jpg https://m.media-amazon.com/images/I/41lwwB1px+L.jpg https://m.media-amazon.com/images/I/51wwkStDcPL.jpg
Material, MaterialTypesteel
ProductGroupBISS Basic Home Improvement
ProductTypeADHESIVES_AND_SEALANTS INDUSTRIAL_CASTERS
ProductTypeNameADHESIVES_AND_SEALANTS INDUSTRIAL_CASTERS TOOLS
Product_descriptionHAMILTON Champion Casters offer superior performance and reliable service. A variety of wheel types to meet your needs. Features a 1" integrally-forged steel kingpin that is extremely durable and strong. -1/2" thick drop forged steel mounting plate with -3/8x3" plate steel legs are welded inside and outside to forged steel horn base. CNC-machined main load bearingA with 3-3/4" diameter raceway; 1" precision tapered thrust secondary load bearing counteracts radial thrust. Ball-check type lubrication fittings in swivel assembly and in wheel hubs with tapered or straight roller bearings. Hamilton Casters Hamilton Champion Forged Swivel 8 x 3 Ultralast Tapered 3000 Lb. Caster
Product_site_launch_date2015-03-11T14:01:00.081Z 2020-04-16T14:38:11.898Z
Supplier_declared_dg_hz_regulationunknown
URLhttp://ecx.images-amazon.com/images/I/41lwwB1px%2BL._SL75_.jpg https://images-na.ssl-images-amazon.com/images/I/01RmK+J4pJL._SL75_.gif https://m.media-amazon.com/images/I/41lwwB1px+L._SL75_.jpg
Unitinches pounds
Unitsinches pixels pounds
VariantMAIN
WebsiteDisplayGroupbiss_basic_display_on_website
WebsiteDisplayGroupNameBISS Basic
Width0.0 0.00 1000 3.0 500 75 8.0 8.00

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG3733239111 @ $469.99
motionindustries.com058665351Not in Stock, Available to Order11 @ $549.65
ZoroG908948811
National Supply Network172620211
ZoroG3282645111 @ $373.14

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Hamilton Champion Casters - 8"Dia.X3"W Ultralast Polyurethane Wheel - -3/4" Sealed Precision Tapered Roller Bearing - Swivel
Brand: Hamilton
HAMILTON Champion Casters offer superior performance and reliable service. A variety of wheel types to meet your needs. Features a 1" integrally-forged steel kingpin that is extremely durable and strong. -1/2" thick drop forged steel mounting plate with -3/8x3" plate steel legs are welded inside and outside to forged steel horn base. CNC-machined main load bearingA with 3-3/4" diameter raceway; 1" precision tapered thrust secondary load bearing counteracts radial thrust. Ball-check type lubrication fittings in swivel assembly and in wheel hubs with tapered or straight roller bearings.
Details
  • Wheel Type: Polyurethane
  • Wheel Dia.xW: 8x3"
  • Capacity: 3000 lbs.
  • Overall Height: 10.5"
  • -3/4" Sealed Precision Tapered Roller Bearing
