DANFOSS . 222AK00035A

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDANFOSS
Extra Product NameSunSource | 222AK00035A DANFOSS Industrial Hydraulics | SunSource.com
jsonUrlData191574e5-0dbc-4e3a-aa1f-ae280008e2fa
keywordsEC028R05AAA1A43140000200 222AK00035A
moq, multiple, tierMinQty11
MPN, SKU222AK00035A
qtyInStock, tierPrice10
snippet222AK00035A DANFOSS | Search our online catalog of Industrial Hydraulics. Start your quote online to connect with our team of technical experts for support.
ApplicationConstruction, Agriculture, Truck and Bus, Material Handling, Other Mobile
Auxiliary mounting, Control special features, Pump special features, Sub brandNone
Bearing life at rated pressure5850 hr

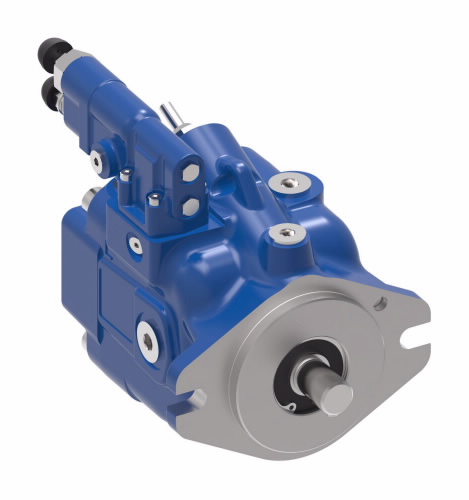

Code title220 Series Mobile Piston Pump
Continuous allowable case pressure19 psi
Controller typePressure Flow Compensator with .4375-20 SAE O-Ring Load Sense Port Left Side
Design code11First
Diagnostic pressure ports.4375-20 UNF-2B SAE O-Ring Ports - Suction and Pressure - Plugged
Displacement28 cubic centimetre per revolution
Drain port size location.875-14 UNF-2B O-Ring Port - Top (28Cc and 45Cc)
EccnEAR99
Fluid cleanliness21/18/13
Front mounting2 Bolt B
Housing materialCast Iron
Icc2Mobile - OC Piston Pumps
IdentificationMark Eaton Product Number and Full Model Code On Label
Inlet pressure64 psi
Input shaftStraight Shaft Diameter 22.2 [.88], Keyway (SAE J744-22-1 B)
Input speed at 0 8 bar absolute2700 revolutions per minute
Input speed at 1 0 bar absolute3000 revolutions per minute
Input speed maximum3600 revolutions per minute
Input speed minimum500 revolutions per minute
Main port size locationRear Ports; Suction - 1.625-12 UN-2B SAE O-Ring Port; Pressure - 1.0625-12 UN-2B SAE O-Ring Port
Maximum case pressure45 psi
Maximum displacement optionExternal Manual Stroke Adjustment (Set At Maximum)
Maximum flow compensator setting15 bar
Maximum input power39.2 kilowatt
Maximum input torque1106 inch pound (pound inch)
Maximum pressure compensator setting283 bar
Maximum recommended operating viscosity40 centistokes
Minimum flow compensator setting12 bar
Minimum pressure compensator setting276 bar
Minimum recommended operating viscosity16 centistokes
Model CodeAEC028R05AAA1A43140000200100CD1A
Nominal pressure rating4060 psi
PaintBlue Primer
Peak pressure rating5000 psi
Product height9.02
Product height uom, Product length uom, Product width uominch
Product length9.68
Product trade nameX20
Product weight35.90
Product weight uompound
Product width6.85
Shaft rotationRight
Shaft sealsFluorocarbon Rubber
Torque control setting0 inch pound (pound inch)
