Parker

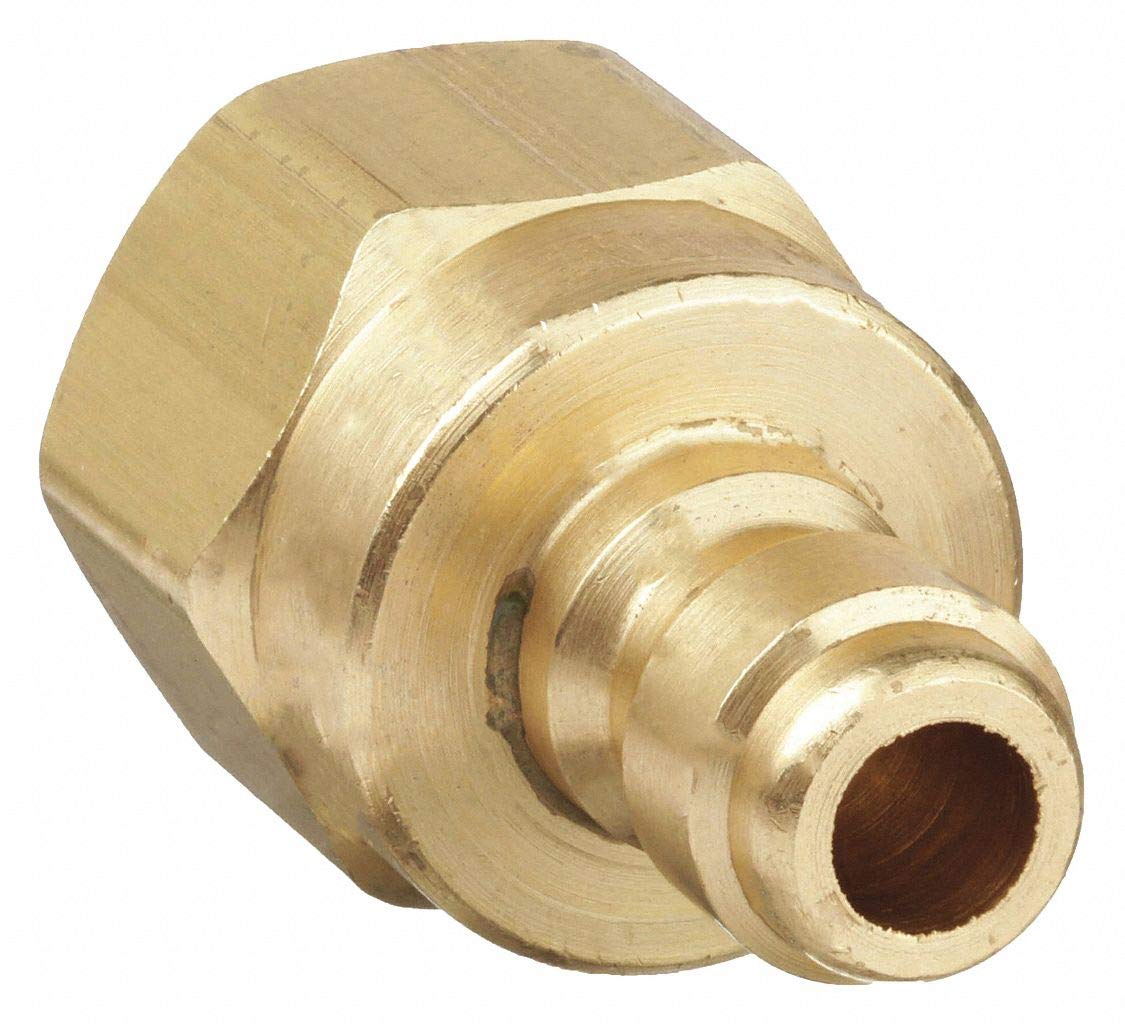

The Parker BST-N1 is a non-valved hydraulic quick coupler with a 1/8 Inch NPT female port connection. It features a 1/8 Inch body made of brass and is designed for use in systems where media isolation is not needed. This quick coupler is part of the Parker Series ST quick connect nipples and has a maximum operating pressure of 2500 PSI.

Nipple, 1/8 Inch Size, High Flow | 31A976 | Worldwide Delivery | +44 203 287 5224 | [email protected]

Parker . BST-N1

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameParker
DimensionUnitinch
GraingerSku31A976
UPCNone
UnitOfMeasureEA
Weight0.01
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
height, moq, multiple, tierMinQty11
jsonUrlData924526ffbdad25e5923b
length, width0.6
MPN, Parker InterchangeBST-N1
qtyInStock217
qtyInStockOverride-2
SKUG4679656
tierPrice14.78
urlhttps://www.zoro.com/parker-hydraulic-quick-connect-hose-coupling-brass-body-sleeve-lock-18-27-thread-size-st-series-bst-n1/i/G4679656/
Quick Coupler TypeHydraulic Coupler Nipple
ItemHydraulic Quick Connect Hose Coupling
Coupler Interchange Type, SeriesST
Connection TypeNPTF
Coupler Thread Size, Thread Size1/8"-27
Coupler Body Size1/8"
Coupler Flow Rate3.0 gpm
Max Pressure2500 psi
Coupler Body Material, Body MaterialBrass
Coupler Finish, Finish/CoatingPlain
Coupling Locking TypeSleeve
Locking MechanismBall
For Use WithParker ST Series
Coupler Connection TypeFNPT
Seal MaterialNitrile
Length63/64"
Bearing MaterialStainless Steel
Operating Temp Range-40 Degrees to 250 Degrees F
Overall Length63/64 in
Hose Fitting GenderFemale
Max Flow Rate11.36 lpm
Max Outside Dia21/32 in
Max Working Pressure @ 70 F2,500 psi
Includes Valve, Includes Shut OffNo
Fitting TypeFemale NPTF
Coupling Size1/8 in
Includes BearingYes
Coupling ComponentPlug
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG4679656121711 @ $4.78
Grainger31A97611
FinditParts1101413411
Raptor SuppliesAC4XVG111 @ $7.85
AmazonB00BKADBZK11
Misumi USABST-N111
simsupply.comZO-G467965615711 @ $11.24
MRO Stop6440213261Currently shipping in 2-4 weeks. Please contact us for further lead time information. Due to global manufacturing delays, lead times may vary.11 @ $3.96
Airline HydraulicsPARKER BST-N1111 @ $5.23
