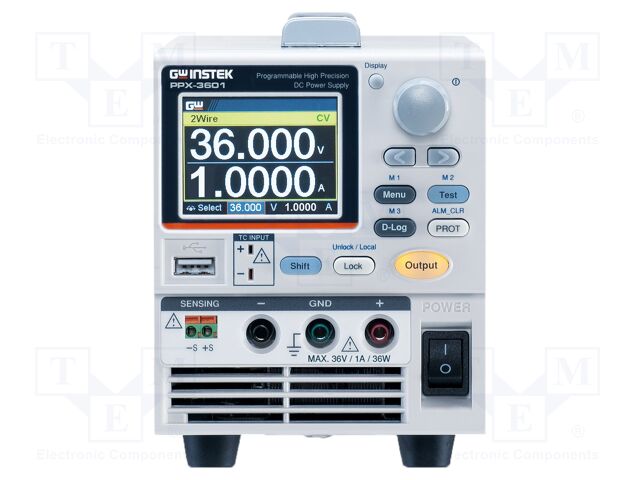

GW INSTEK PPX-3601(EU)(GPIB) | Power supply: programmable laboratory; Ch: 1; 36VDC; 1A; 36W; rack
GW INSTEK PPX-3601(EU)(GPIB) | Power supply: programmable laboratory; Ch: 1; 36VDC; 1A; 36W; rac
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | GW INSTEK |
|---|---|
| CategoryL1 | Workplace Equipment |
| CategoryL2 | Measuring Instruments |
| CategoryL3 | Laboratory Power Supplies |
| CategoryL4 | Programmable Power Supplies |
| Extra Product Name | GW INSTEK PPX-3601(EU)(GPIB) | Power supply: programmable laboratory; Ch: 1; 36VDC; 1A; 36W; rack |
| atoms, moq, multiple, Number of channels | 1 |
| jsonUrlData | bcff4739dd824d10395405e090d7b6a1. |
| jsonUrlData2 | af96f29b53db5b84d309 |
| keywords | GW INSTEK, PPX-3601(EU)(GPIB), PPX-3601-GPIB, Workplace Equipment, Measuring Instruments, Laboratory Power Supplies, Programmable Power Supplies |
| MPN | PPX-3601(EU)(GPIB) |
| qtyInStock | 0 |
| SKU | PPX-3601-GPIB |
| snippet | GW INSTEK PPX-3601(EU)(GPIB) | Power supply: programmable laboratory; Ch: 1; 36VDC; 1A; 36W; rac |
| Type of power supply | programmable laboratory |
| Kind of power supply | programmable, |
| Kind of display used | LCD TFT 2,4" |
| Output voltage | 36V DC |
| Output current | 1A |
| Maximum power | 36W |
| Mounting | rack |
| Current stabilisation | ?0.02%+ 50?A |
| Voltage stabilisation | ?0.01%+ 3mV |
| Voltage (regulated) ripple and noise | ?0.8mVrms, |
| Measurement | DC current, |
| Manufacturer series | PPX |
| Protection | anti-overload OPP, |
| Additional functions | data logger |
| Operating temperature | 0...40?C |
| Plug variant | EU |
| Dimensions | 107x124x313mm |
| Related items | GRA-441-E, |
| Display parameters | 5 digits |
| Alias | 01PX360130GT |
| Operating modes | constant current, |
