Where can I buy 254THEN8058?

254THEN8058 is available from Zoro, Grainger, Raptor Supplies, Dealers Electric, sustainablesupply.com. See pricing comparison above.

What is the price of 254THEN8058?

Pricing ranges from $7313.07 to $13727.03 depending on quantity and distributor.

Is 254THEN8058 in stock?

Yes, 254THEN8058 is currently in stock at multiple distributors with immediate availability.

Marathon Motors

Name: Marathon Motors
Brand: Marathon Motors
Price: 7326.00 USD
Availability: OutOfStock

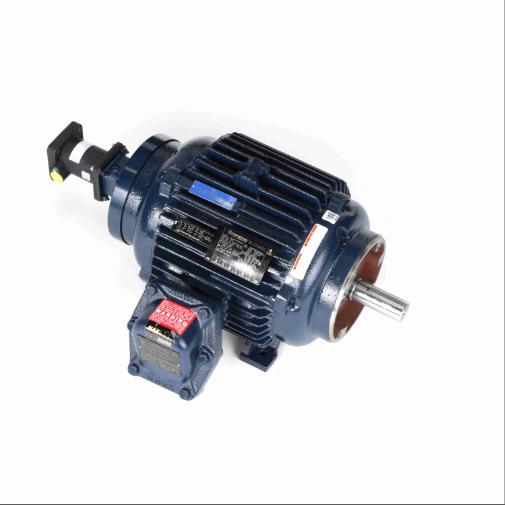

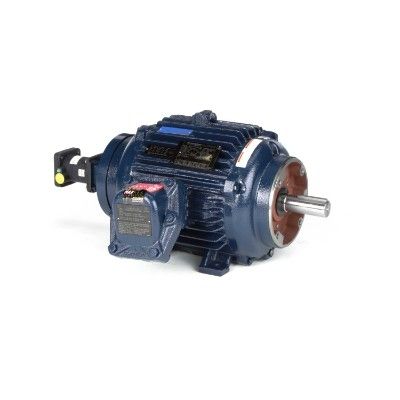

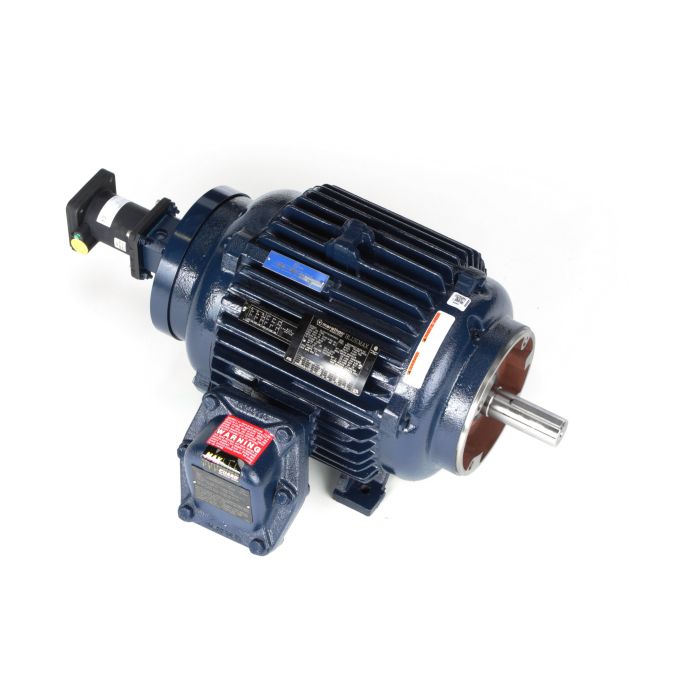

Vector Motor 7-1/2 Hp 3600 Rpm 230/460v | 26WC69 | Y982 | Worldwide Delivery | +44 203 287 5224 | [email protected]

Marathon Motors . 254THEN8058

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product Name	Marathon Motors
DimensionUnit	inch
GraingerSku	26WC69
UPC, Motor Thermal Protection	None
UnitOfMeasure	EA
Voltage	230/460V AC
Weight	344
WeightUnit	lbs
cali_prop65_orglabel, cali_prop65_whtlabel	False
countryOfOrigin	US
extendedLead, width	26
extendedQty	-2
height	20.41
jsonUrlData	924526ffbdad25e5923b
length	35
moq, multiple, tierMinQty1, Motor Service Factor, No of Speeds	1
MPN	254THEN8058
perItemShipping	350.00
qtyInStock	0
qtyInStockOverride	Drop Ship
SKU	G9922753
tierPrice1	7326.0
url	https://www.zoro.com/marathon-motors-vector-motor-7-12-hp-3600-rpm-230460v-254then8058/i/G9922753/
Item	Vector Motor
Motor Design	3-Phase
HP	7 1/2
Nameplate RPM	1,782
Speed Range	2,000:1
Max Speed	1,800 RPM
Frame	254TC
Overall Length	30 3/16 in
Warranty, Manufacturers Warranty Length	3 yr
Ins Class	F
Duty, Duty Cycle	Continuous
Motor Frame Material, Frame Material	Cast Iron
Encoder Shaft	1 in
Motor Application	Crane
Finish	Blue
Max Operating Frequency	120 Hz
Base	Rigid
Hz	60
Insulation Feature	Max Guard
Shaft Length	3 3/4 in
Motor Shaft Rotation	CW/CCW
Voltage Compatibility	200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor Shaft Design	Keyed
Phase	Three
Motor Mounting Position	Horizontal
Standards	CL I GR C&D, CL II GR E, CSA Certified (LR47504), F&G, UL Listed (E12044)
RPM Range	1,701-1,800
NEMA Design	A
Motor Mounting Type	Rigid Base
Encoder Acceptable	Yes
Nominal Efficiency	91.7 %
Full Load Amps	22.0/11.0
Shaft Dia	1 5/8 in
Motor Enclosure Design	Totally Enclosed Nonventilated
CC Number	CC003A
Motor Efficiency Group	NEMA Premium Efficient
Ambient Temperature, Max Ambient Temp	40 Degrees C
Motor Bearings	Ball
Green Certification or Other Recognition	NEMA Premium(R) Rated
Usable @ 208V, Usable @ 200V	No
Conduit Box Location	Exterior
Includes	BEI H38 Explosion Proof Encoder 1024 ppr
Conduit Box Position	F1, F2
Country of Origin (subject to change)	United States

Distributor offers

Seller	SKU	MOQ	In stock	Multiple	Prices
Zoro	G9922753	1		1	1 @ $7326.00
Grainger	26WC69	1		1
Raptor Supplies	AF8KVP	1		1	1 @ $12155.25
Dealers Electric	254THEN8058	1	12	1	1 @ $8142.97
sustainablesupply.com	C1513048	1	Add to Cart	1	1 @ $9856.73
motorsandcontrol.com	Y982	1		1	1 @ $0.00
pumpproducts.com	254THEN8058	1	-2	1	1 @ $13727.03
mecampbell.com	254THEN8058	1	Est Lead Time: 12 Bus Days	1	1 @ $7313.07
Galco	254THEN8058-MARA	1		1	1 @ $7505.24
