Boneham

Drill Bushing - Head Press Fit H1316CY#40 Drill Size with STEEL Finish.RC 62-64 to RC 62-64 with 0.098" 0.096"H-TYPE Technical Specs*Please contact [email protected] for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*Full DescriptionDrill B

Boneham . H1316CY

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameBoneham
DimensionUnitinch
GraingerSku11U685
UPCNone
UnitOfMeasureEA
Weight0.01
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginGB
extendedLead15
extendedQty-2
height1.09
jsonUrlData924526ffbdad25e5923b
length, width0.09
moq, multiple, tierMinQty11
MPNH1316CY
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG6296166
tierPrice112.57
urlhttps://www.zoro.com/boneham-drill-bushing-type-h-drill-size-40-h1316cy/i/G6296166/

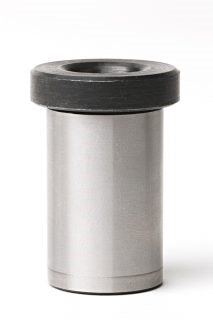

ItemHeaded Press-Fit Drill Bushing (H)
Concentricity Tolerance.0003" T.I.R. Max
HardnessRc 62-64
Outside Dia Tolerance+0.0015 in /+0.0012 in
Head Thickness3/32"
Size- Decimal#40 (0.0980)
Decimal Equivalent0.0980
Heat TreatmentThrough Hardened
Rockwell HardnessRC 62-64
Inside Dia Tolerance+0.0001 in /+0.0004 in
Finish, Head Material, Material - MachiningHigh Speed Steel
Bushing Head TypeHeaded
Length under Head1"
Material52100 Thru Hardened
Head Dia19/64 in
Drill Size, Inside Dia#40
Overall Length1 in
Outside Dia13/64 in
Drill Bushing Wall TypeStandard Wall
Bushing TypeHead Press Fit
Measurement SystemWire
Head TypeYes
Bushing CodeH
Size - DecimalO - 0.3160
Country of Origin (subject to change)United Kingdom

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG6296166111 @ $12.57
National Supply Network076402611-211 @ $31.52
freertool.comBH-H1316CY111 @ $19.29
National Supply Network76402611-211 @ $35.46
