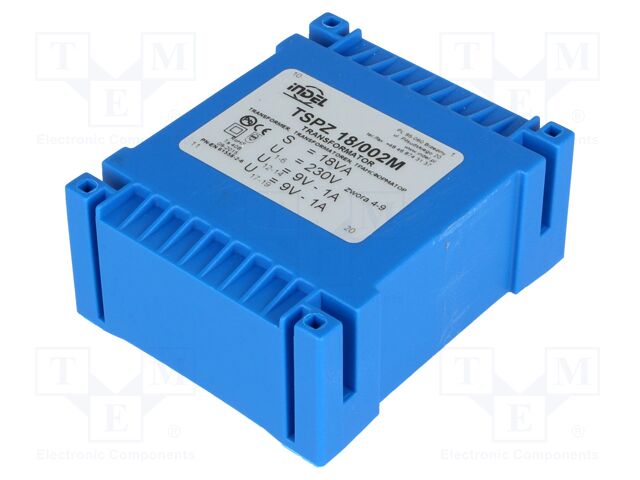

INDEL TSPZ18/002 | Transformer: encapsulated; 18VA; 230VAC; 9V; 9V; 1A; 1A; PCB; IP00
INDEL TSPZ18/002 | Transformer: encapsulated; 18VA; 230VAC; 9V; 9V; 1A; 1A; PCB; IP0
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | INDEL |
|---|---|
| CategoryL1 | Transformers and Ferrite Cores |
| CategoryL2 | PCB transformers |
| Extra Product Name | INDEL TSPZ18/002 | Transformer: encapsulated; 18VA; 230VAC; 9V; 9V; 1A; 1A; PCB; IP00 |
| atoms, moq, multiple, tierMinQty1 | 1 |
| jsonUrlData | 2787691aeb30f302c579cf433e99d045. |
| jsonUrlData2 | 90f6468b80f1965f07b8 |
| keywords | INDEL, TSPZ18/002, TSPZ18/2X9V |
| MPN | TSPZ18/002 |
| qtyInStock | 0 |
| SKU | TSPZ18/2X9V |
| snippet | INDEL TSPZ18/002 | Transformer: encapsulated; 18VA; 230VAC; 9V; 9V; 1A; 1A; PCB; IP0 |
| tierMinQty2 | 5 |
| tierMinQty3 | 25 |
| tierMinQty4 | 100 |
| tierPrice1 | 21.49 |
| tierPrice2 | 20.19 |
| tierPrice3 | 18.89 |
| tierPrice4 | 17.58 |
| Type of transformer | encapsulated |
| Power | 18VA |
| Primary voltage | 230V AC |
| Secondary voltage 1, Secondary voltage 2 | 9V |
| Secondary winding current 1, Secondary winding current 2 | 1A |
| Mounting | PCB |
| IP rating | IP00 |
| Conform to the norm | PN EN 61558 |
| Thermal class | Ta40B |
| Insulation class | II |
| A dimension | 57.2mm |
| A1 dimension | 50mm |
| B dimension | 68mm |
| B1 dimension | 62.5mm |
| C dimension | 27.1mm |
| P dimension | 5mm |
| Electrical insulation strength | 4kV/60s |
| m dimension | 45mm |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| TSPZ18/2X9V | 1 | 1 | 1 @ $21.49, 5 @ $20.19, 25 @ $18.89, 100 @ $17.58 |
