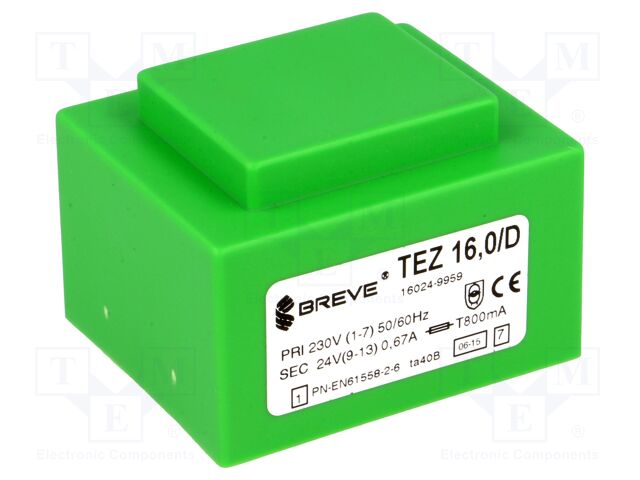

BREVE TUFVASSONS TEZ16/D230/24V | Transformer: encapsulated; 16VA; 230VAC; 24V; 666.6mA; PCB; IP00
BREVE TUFVASSONS TEZ16/D230/24V | Transformer: encapsulated; 16VA; 230VAC; 24V; 666.6mA; PCB; IP0
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | BREVE TUFVASSONS |
|---|---|
| CategoryL1 | Transformers and Ferrite Cores |
| CategoryL2 | PCB transformers |
| Extra Product Name | BREVE TUFVASSONS TEZ16/D230/24V | Transformer: encapsulated; 16VA; 230VAC; 24V; 666.6mA; PCB; IP00 |
| atoms, moq, multiple | 1 |
| jsonUrlData | c7651db8557a475eb9fd7b012fa2ad59. |
| jsonUrlData2 | d98690a6f7544de171ef |
| keywords | BREVE TUFVASSONS, TEZ16/D230/24V, TEZ16/D/24V, Transformers and Ferrite Cores, PCB transformers |
| MPN | TEZ16/D230/24V |
| qtyInStock | 202 |
| SKU | TEZ16/D/24V |
| snippet | BREVE TUFVASSONS TEZ16/D230/24V | Transformer: encapsulated; 16VA; 230VAC; 24V; 666.6mA; PCB; IP0 |
| Type of transformer | encapsulated |
| Power | 16VA |
| Primary voltage | 230V AC |
| Secondary voltage 1 | 24V |
| Secondary winding current 1 | 666.6mA |
| Mounting | PCB |
| IP rating | IP00 |
| Conform to the norm | PN EN 61558-1:2000 |
| Thermal class | Ta40B |
| Secondary winding terminals | 9-13 |
| Primary winding terminals | 1-7 |
| A dimension | 47mm |
| A1 dimension, A2 dimension | 30mm |
| B dimension | 57mm |
| C dimension | 39mm |
| Manufacturer series | TEZ |
| Electrical insulation strength | 4kV/60s |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| TEZ16/D/24V | 1 | 202 | 1 |
