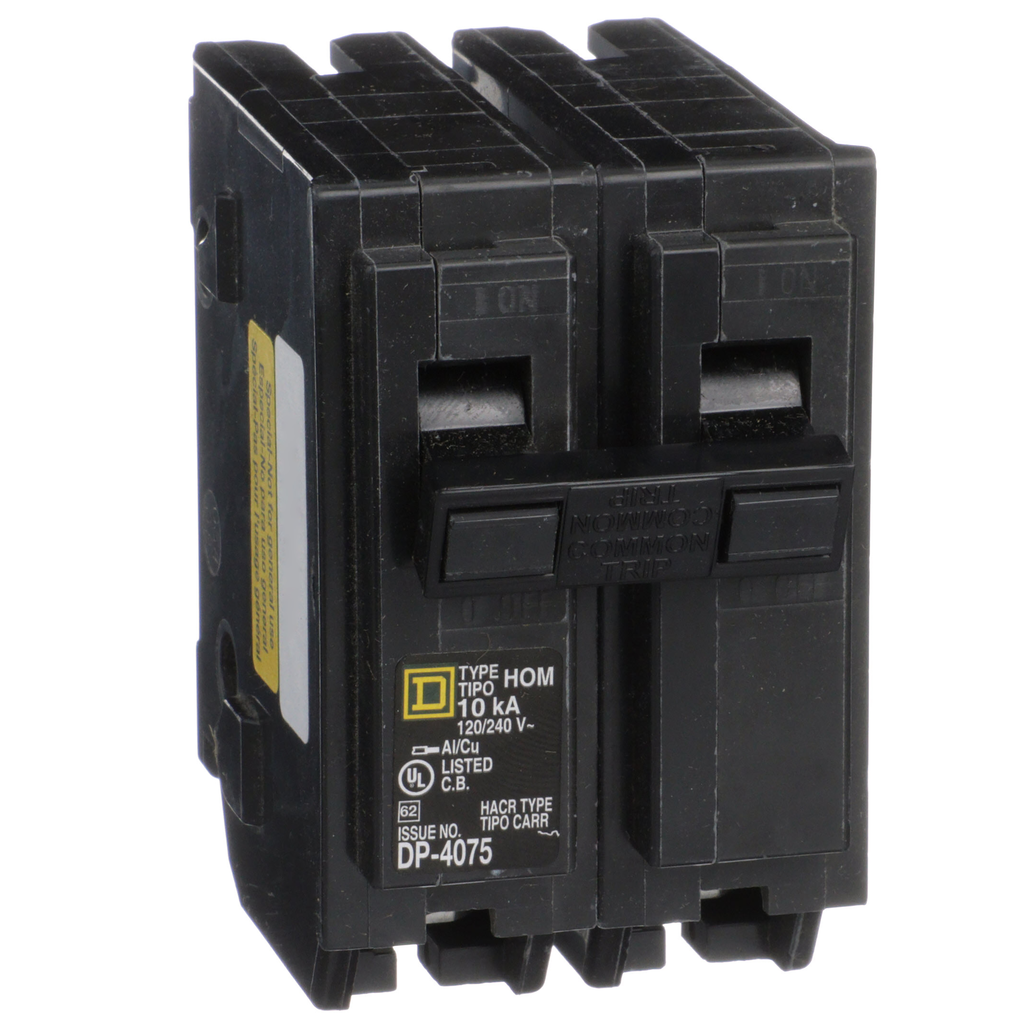

Mini circuit breaker, Homeline, 25A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, high amp lug, UL | Mayer Electric

Mayer Electric Supply . HOM2255219

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
Extra Product NameMini circuit breaker, Homeline, 25A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, high amp lug, UL | Mayer Electric
UPC785901213031
jsonUrlData/Product/SQUARE-D-Square-D-Homeline-Miniature-Circuit-Breakers-Homeline-Plug-on-Circuit-Breakers-HOM2255219-785901213031
jsonUrlData29fa3bb70-68b7-4b88-9349-abd200624019
moq, multiple, tierMinQty11
MPNHOM2255219
qtyInStock0
SKUSQDHOM2255219
tierPrice124.0
Product CertificationsUL Listed
Circuit Breaker ApplicationHACR rated
Mounting Modeplug-in
Circuit Breaker Typestandard
Short-Circuit Current10 kA
Range Of ProductHomeline
Poles Description2P
Electrical Connectionbox lugs
Number Of Spaces Required2
Line Rated Current25 A
Product Or Component Typeminiature circuit-breaker
[Ue] Rated Operational Voltage120/240 V AC
Awg GaugeAWG 8...AWG 2 aluminium/copper)1
Warranty18 months
Tightening Torque4.0-4.0 N.m 2.5-10 mm? (AWG 16...AWG 14) || 4.0-4.0 N.m 4-20 mm? (AWG 12...AWG 4)
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Rohs Exemption Information, Mercury Free, Toxic Heavy Metal Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP1308001
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
Reach RegulationFree of Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation40 ?C

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDHOM2255219111 @ $24.00
