SunSource | 273166 GRACO Lubrication | SunSource.com

273166 GRACO | Search our online catalog of Lubrication. Start your quote online to connect with our team of technical experts for support.

GRACO . 273166

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerGRACO
Extra Product NameSunSource | 273166 GRACO Lubrication | SunSource.com
Weight, Metering gun weight (kg)2.4
WeightUnitkg
Weight_AttribMetering gun weight (kg)
jsonUrlDataf3d02b06-aec2-4aea-b2c3-ae4e00ec12ce
keywordsVALVE, PM20, 1/2"NPT, FLEX 273166
moq, multiple, tierMinQty11
MPN, SKU273166
qtyInStock, tierPrice10
snippet273166 GRACO | Search our online catalog of Lubrication. Start your quote online to connect with our team of technical experts for support.
Calibration typeFactory Calibrated
Compatible materialPetroleum-Based Oil;Synthetic-Based Oil;Antifreeze
Dimension uom codeIN
Dispense typePreset
Display TypeElectronic
Division codeLED
Extension typeFlexible
Fluid inlet thread gender, Fluid outlet thread genderFemale
IncludesNozzle;Extension
Inlet size (cm)1.27
Inlet size (in)1/2
Inlet size (mm)12.7
Inlet thread typeNPT
Ip rating69K
Maximum flow rate (cc/min)75708
Maximum flow rate (cc/sec)1262
Maximum flow rate (gpm)20
Maximum flow rate (l/min)75.7
Maximum operating temperature (?c)52
Maximum operating temperature (?f)125
Maximum recorded dispense, Maximum totalizer19999
Maximum storage temperature (??c)85
Maximum storage temperature (??f)185
Maximum working pressure (bar)102
Maximum working pressure (kpa)10340
Maximum working pressure (mpa)10
Maximum working pressure (psi)1500
Meter accuracy, Meter accuracy (%)??0.5
Meter pressure loss (bar)10.3 Bar at 12 GPM
Meter pressure loss (psi)150 PSI at 12 GPM
Meter technologyOval Gear
Metering gun weight (lb)5.2
Minimum flow rate (gpm)0.25
Minimum operating temperature (?c)-29
Minimum operating temperature (?f)-20
Nozzle typeManual
Outlet size (cm)1.905
Outlet size (in)3/4
Outlet size (mm)19.05
Outlet thread typeORB
Overall height (cm)18.3
Overall height (in)7.2
Overall height (mm)183
Overall length (cm)78
Overall length (in)30.7
Overall length (mm)780
Overall width (cm)10.4
Overall width (in)4.1
Overall width (mm)103.5
Recommended environmentIndoor/Outdoor
Trigger lockLocking
Trigger protection typeLock Off Button

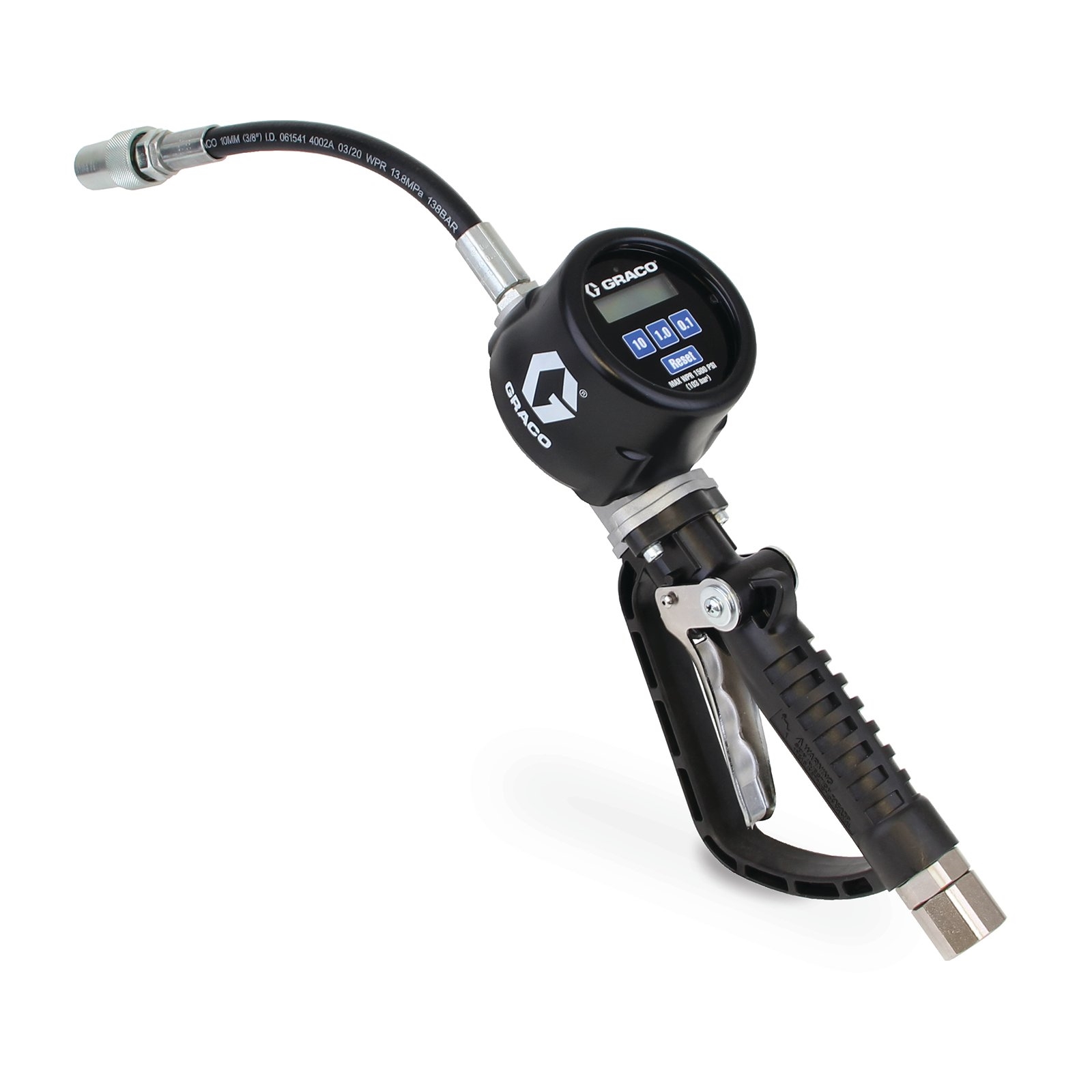

TypeElectronic Metered Dispense Valve
Unit of measureQuart;Pint;Liter;Gallon
Valve TypeMetered
Wetted MaterialAluminum;Stainless Steel;Carbon Steel;Acetal;Nitrile Rubber;Geolast?

Distributor offers

SellerSKUMOQIn stockMultiplePrices
sun-source.com273166111 @ $0.00
