2-328996-1 TE Connectivity AMP Connectors | Connectors, Interconnects | DigiKey

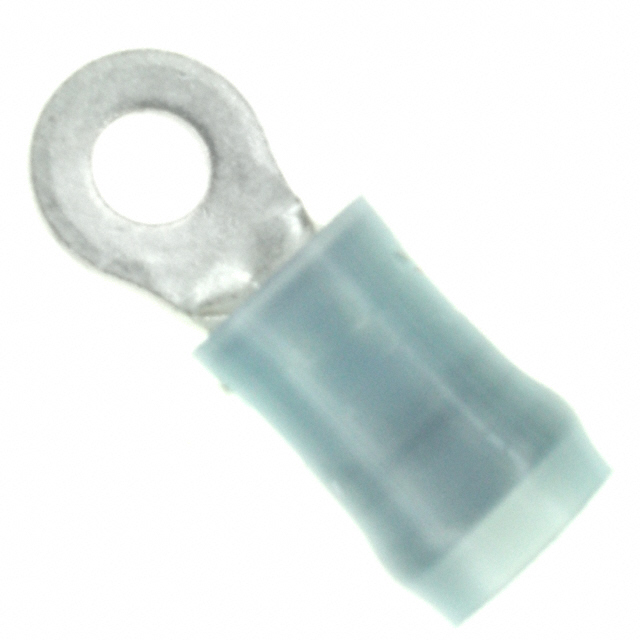

Ring Terminal Connector 4 Stud Circular 14-16 AWG Crimp
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | TE Connectivity AMP Connectors |
|---|---|
| CategoryL1, Category | Connectors, Interconnects |
| CategoryL2 | Terminals |
| CategoryL3 | Ring Connectors |
| DimensionUnit | inch |
| Extra Product Name | 2-328996-1 TE Connectivity AMP Connectors | Connectors, Interconnects | DigiKey |
| atoms, moq, multiple, tierMinQty1 | 1 |
| color, Color | Blue |
| diameter, height | 0.115 |
| extraShipping, qtyInStock | 0 |
| height_Attrib | Insulation Diameter |
| length | 0.703 |
| length_Attrib | Length - Overall |
| MPN, Manufacturer Product Number | 2-328996-1 |
| packaging | Cut Tape (CT) |
| SKU | 291983 |
| snippet, Detailed Description | Ring Terminal Connector 4 Stud Circular 14-16 AWG Crimp |
| tariff | 1.2 |
| tierMinQty10 | 5,000 |
| tierMinQty2 | 10 |
| tierMinQty3 | 25 |
| tierMinQty4 | 50 |
| tierMinQty5 | 100 |
| tierMinQty6 | 250 |
| tierMinQty7 | 500 |
| tierMinQty8 | 1,000 |
| tierMinQty9 | 2,500 |
| tierPrice1 | 0.612 |
| tierPrice10 | 0.27693 |
| tierPrice2 | 0.57 |
| tierPrice3 | 0.5136 |
| tierPrice4 | 0.45624 |
| tierPrice5 | 0.43728 |
| tierPrice6 | 0.399312 |
| tierPrice7 | 0.380304 |
| tierPrice8 | 0.31374 |
| tierPrice9 | 0.23768 |
| width | 0.25 |
| width_Attrib | Width - Outer Edges |
| Digi-Key Part Number | A1091TR-ND - Tape & Reel (TR) |
| Description | CONN RING CIRC 14-16AWG #4 CRIMP |
| Manufacturer Standard Lead Time | 34 Weeks |
| Series | PIDG |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Terminal Type | Circular |
| Stud/Tab Size | 4 Stud |
| Thickness | 0.031" (0.79mm) |
| Width - Outer Edges | 0.250" (6.35mm) |
| Length - Overall | 0.703" (17.86mm) |
| Mounting Type | Free Hanging (In-Line) |
| Termination | Crimp |
| Wire Gauge | 14-16 AWG |
| Insulation | Insulated |
| Features | Serrated Termination |
| Contact Material | Copper |
| Contact Finish | Tin |
| Insulation Diameter | 0.115" ~ 0.170" (2.92mm ~ 4.32mm) |
| Material - Insulation | Polyamide (PA), Nylon |
| Base Product Number | 328996 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| 291983 | 1 | 1 | 1 @ $0.61, 10 @ $0.57, 25 @ $0.51, 50 @ $0.46, 100 @ $0.44, 250 @ $0.40, 500 @ $0.38, 1000 @ $0.31, 2500 @ $0.24, 5000 @ $0.28 | ||
| Hotenda | H1657796 | 1 | 1 | ||
| Newark | 95Y9750 | 2500 | 2500 | 1000 @ $0.29 | |
| Allied Electronics | 71995535 | 5000 | 5000 | ||
| Digi-Key | 388634 | 1 | 6105 | 1 | 1 @ $0.61, 10 @ $0.57, 25 @ $0.51, 50 @ $0.46, 100 @ $0.44, 250 @ $0.40, 500 @ $0.38, 1000 @ $0.31, 2500 @ $0.24, 5000 @ $0.26 |
 Arrow | 2-328996-1 | 1 | 4970 | 1 | 1 @ $0.49, 10 @ $0.37, 100 @ $0.32, 1000 @ $0.24, 10000 @ $0.24 |
| Mouser | 571-2-328996-1 | 1 | 4699 | 1 | 1 @ $0.51, 10 @ $0.38, 100 @ $0.33, 1000 @ $0.26, 10000 @ $0.21 |
| Newark | 98X4784 | 5000 | 5000 | 5000 @ $0.32 | |
 Zoro | G300927486 | 1 | 1 | 1 @ $487.50 | |
| us.rs-online.com | 71995535 | 5000 | 5000 | 5000 @ $0.36, 10000 @ $0.35 |
