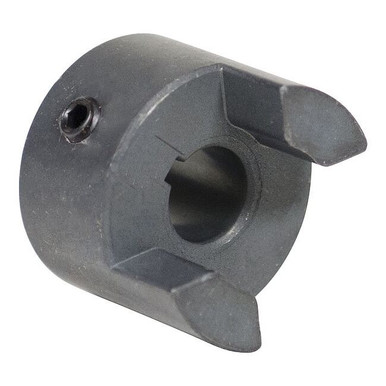

L07058 L070X5/8 L-JAW HUB

L07058 L070X5/8 L-JAW HUB

TB Woods . L07058

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerTB Woods
CategoryL1Shaft Couplings and Collars
CategoryL2Jaw Couplings
CategoryL3Components
CategoryL4Hub Halves
Extra Product Name, snippetL07058 L070X5/8 L-JAW HUB
moq, multiple11
MPNL07058
qtyInStock0
SKU336966
tierMinQty11
tierPrice16.41
Bore size5/8
Keyway3/16 in x 3/32 in
Product familyL-jaw hub
Size code70
Dimension (in) (S)0.38
Overall length2
Dimension (in ) (OD)1.360
Max compatible bore size, Dimension (in) (LTB), Length-through-bore0.75
Setscrew length (in)1/4
Hub material, Material typeSinter carbon steel
Max speed, Max RPM14000
Setscrew length, Min compatible bore size0.25
Bore shapeFinish with keyway
Setscrew size1/4 20 UNC - 2B
Jaw typeStraight
Dimension (in) (HD)NA
Max parallel misalignment0.015
Dimension (in) (L)1.21
Center0.5
O D1.36
Bore tolerance (in)+0.0005 to +0.0015
Bore tolerance+.0005 to +.0015
Coupling sizeL070
Keyseat3/16 x 3/32

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MRO Supply33696611111 @ $6.41
Grainger4X17911
Applied Industrial10081277311
sustainablesupply.comC16892241-211 @ $7.35
ZoroG0629675183511 @ $5.85
simsupply.comZO-G0629675179711 @ $13.25
