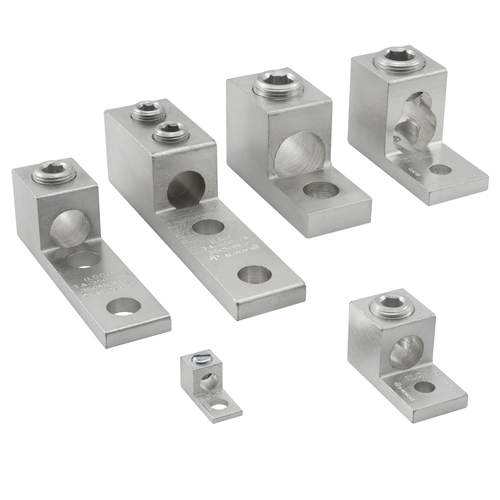

Aluminum Mechanical Lug, Conductor Range 4-14, 1 Port, 1 Hole, 1/4in Bolt Size, Tin Plated, UL, CSA | Mayer Electric

Mayer Electric Supply . TA-6-S

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitinch
Extra Product NameAluminum Mechanical Lug, Conductor Range 4-14, 1 Port, 1 Hole, 1/4in Bolt Size, Tin Plated, UL, CSA | Mayer Electric
UPC783669888386
Weight0.043
WeightUnitlbs
Weight_AttribWeight
color, ColorSilver
height, width, Tang Width (IN)0.5
height_AttribHeight
jsonUrlData/Product/ILSCO-Aluminum-Mechanical-Lug-Conductor-Range-4-14-1-Port-1-Hole-1-4in-Bolt-Size-Tin-Plated-UL-CSA-783669888386
jsonUrlData2612ee265-82c4-4773-9a6d-abb200c8ee80
length1.062
length_AttribLength
moq, multiple, tierMinQty1, Number of Conductors, Number of Mounting Holes, Number of Poles, Number of Ports / Wireways, Number of Wire Binding Screws per Port, Bag Quantity1
MPNTA-6-S
qtyInStock, Mounting Hole Spacing (mm)0
SKUILSTA6S
tierPrice13.2
width_AttribWidth
Height, Width0.5 in
Length1.062 in
ConnectionMechanical
Contains DE-OX?, Direct BurialNo
Mounting Hole TypeThru
Conductor TypeStranded, Solid
Dimension G (IN)0.25
Dimension G (mm)6.35
Drive Type MainSlotted
Height BX (IN)2.25
Mounting Hole Diameter (IN)0.265
Mounting Hole Diameter (mm)6.731
Tang Length (IN)0.687
Tang Length (mm)17.4498
Tang Thickness (IN)0.093
Tang Thickness (mm)2.3622
Tang Width (mm)12.7
Weight BX (LB)2.7
Width BX (IN)5
Conductor MaterialAluminum, Copper
Connector FinishTin
MaterialAluminum
Wire Binding Hardware FinishZinc Clear Trivalent Chromate
Wire Binding Hardware MaterialSteel
Mounting Bolt/Stud Size1/4
Wire Binding Screw Size5/16
Wire Binding Torque4 - 6 AWG = 45, 2/0 - 2 AWG = 50, 10 - 14 AWG = 35, 8 AWG = 40
Temperature Rating90?C
Conductor Range AL Stranded (Primary, run, main, line), Conductor Range CU Stranded (Primary, run, main, line)4 Str - 14 Str
Conductor Range CU Solid (Primary, run, main, line), Conductor Range AL Solid (Primary, run, main, line)10 Sol - 14 Sol
Voltage Rating35 kV
CSA File NumberLR-29601
CSA StandardC22.2 No. 65-03
Prop65 ComplianceThis product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
ROHS IndicatorIND
UL Control Number453G
UL / CULUS SpecificationUL 467 Listed, UL 486A/B Listed
UL File NumberE6207
Carton Quantity DescriptionSTD PACK QTY 100
Dual RatedYes
NEMA CodeS-588-3
UPC Code78366988838

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comILSTA6S111 @ $3.20
