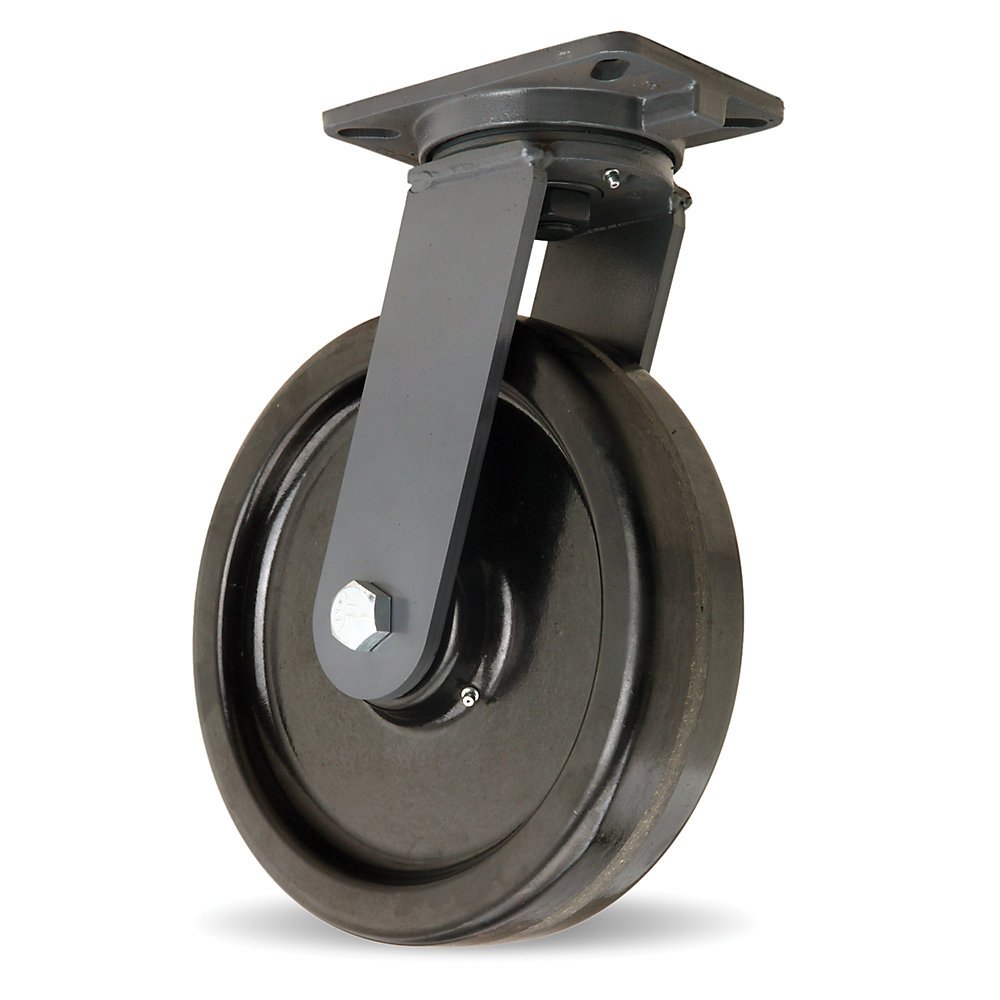

Champion Swivel Caster, 12" x 3" Phenolic Wheel, 3/4" Precision Tapered Bearing

The Hamilton Champion Casters feature a 12-inch diameter Plastex wheel and a 3-inch wide wheel. They are equipped with a -3/4 inch precision tapered roller bearing and a swivel mechanism.

HAMILTON Champion Casters offer superior performance and reliable service. A variety of wheel types to meet your needs. Features a 1" integrally-forged steel kingpin that is extremely durable and strong. -1/2" thick drop forged steel mounting plate with -3/8x3" plate steel legs are welded inside and outside to forged steel horn base. CNC-machined main load bearingA with 3-3/4" diameter raceway; 1" precision tapered thrust secondary load bearing counteracts radial thrust. Ball-check type lubrication fittings in swivel assembly and in wheel hubs with tapered or straight roller bearings.

Hamilton . S-CH-12PT

Gallery

Attributes

Brand name, Manufacturer name, Brand, Label, Man, Publisher, StudioHamilton
ManufacturerHamilton Hamilton Caster & Mfg Co
CategoryId6740
DimensionUnitinch
GraingerSku, MPN, Part Number, Model, Keyword, ModelNumber, Model_number, PartNumber, Part_number, SkuS-CH-12PT
Extra Product NameChampion Swivel Caster, 12" x 3" Phenolic Wheel, 3/4" Precision Tapered Bearing
UPCNone
UnitOfMeasureEA
Weight33 33.0 33.00
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabel, AdultProduct, Autographed, Memorabilia, TradeInEligibleFalse
countryOfOriginUS
extendedLead15
extendedQty-2
height, length, moq, multiple, tierMinQty1, width, Number of Wheels, Case, NumberOfItems, Number_of_items1
jsonUrlData924526ffbdad25e5923b
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG3710559
tierPrice1290.99
urlhttps://www.zoro.com/hamilton-champion-swivel-caster-12-x-3-phenolic-wheel-34-precision-tapered-bearing-s-ch-12pt/i/G3710559/
Product Group, ProductGroupHome Improvement
Wheel Dia12
Wheel Width3
Plate Size5 1/4 x 7 1/4
Mounting Bolt Dia0.5
Mounting Height15.5
Caster Wheel ShapeStandard
Caster Wheel/Tread Material, Caster Core MaterialPhenolic
Load Rating3500
Frame FinishPowder Coat
Caster Product Group, ItemSwivel Caster
Caster Frame MaterialForged Steel
Caster Plate Hole PatternA
Caster Wheel BearingsTapered
Inside Bolt Hole Spacing3 3/8 x 5 1/4
StandardsICWM
Non-Marking, Thread GuardsNo
Replacement WheelW-1230-PT-3/4
Core ColorBlack
Outside Bolt Hole Spacing4 1/8 x 6 1/8
Caster Temp Range-50 to 300 deg(F)
ASIN, AsinB00UJOQZWO
BindingMisc.
Bullet_point-3/4" Precision Tapered Roller Bearing Capacity: 3500 lbs. Overall Height: 15.5" Wheel Dia.xW: 12x3" Wheel Type: Plastic
CatTools & Home Improvement
CatId228013
CatTree228013 468240 551240
ClassificationId511228
DisplayNameHardware
FeatureWheel Type: Plastic
Height1000 15.5 15.50 3.0 3.00 500 75
ItemClassificationBASE_PRODUCT
ItemName, Item_nameHamilton® Champion™ Forged Swivel 12 x 3 Plastex Tapered 3500 Lb. Caster
Item_package_weight, Item_weight33.0
Item_type_keywordplate-casters
Length0.0 0.00 12.0 15.5 15.50
Linkhttps://m.media-amazon.com/images/I/41Bfge5OOuL._SL75_.jpg https://m.media-amazon.com/images/I/41Bfge5OOuL.jpg https://m.media-amazon.com/images/I/61uaXlWQKKL.jpg
ProductTypeINDUSTRIAL_CASTERS
ProductTypeNameTOOLS
Product_descriptionHAMILTON Champion Casters offer superior performance and reliable service. A variety of wheel types to meet your needs. Features a 1" integrally-forged steel kingpin that is extremely durable and strong. -1/2" thick drop forged steel mounting plate with -3/8x3" plate steel legs are welded inside and outside to forged steel horn base. CNC-machined main load bearingA with 3-3/4" diameter raceway; 1" precision tapered thrust secondary load bearing counteracts radial thrust. Ball-check type lubrication fittings in swivel assembly and in wheel hubs with tapered or straight roller bearings.
Product_site_launch_date2015-03-11T13:56:52.261Z
TitleHamilton Champion Casters - 12"Dia.X3"W Plastex Wheel - -3/4" Precision Tapered Roller Bearing - Swivel
URLhttp://ecx.images-amazon.com/images/I/41Bfge5OOuL._SL75_.jpg
Unitinches pounds
Unitsinches pixels pounds
VariantMAIN
WebsiteDisplayGroupbiss_basic_display_on_website
WebsiteDisplayGroupNameBISS Basic
Width0.0 0.00 1000 12.0 12.00 3.0 500 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG3710559111 @ $290.99
motionindustries.com023233791Not in Stock, Available to Order11 @ $341.06
AmazonB00UJOQZWO11
ZoroG9087622111 @ $236.20
National Supply Network17197021-211 @ $316.56

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Hamilton® Champion™ Forged Swivel 12 x 3 Plastex Tapered 3500 Lb. Caster
Brand: Hamilton
HAMILTON Champion Casters offer superior performance and reliable service. A variety of wheel types to meet your needs. Features a 1" integrally-forged steel kingpin that is extremely durable and strong. -1/2" thick drop forged steel mounting plate with -3/8x3" plate steel legs are welded inside and outside to forged steel horn base. CNC-machined main load bearingA with 3-3/4" diameter raceway; 1" precision tapered thrust secondary load bearing counteracts radial thrust. Ball-check type lubrication fittings in swivel assembly and in wheel hubs with tapered or straight roller bearings.
Details
  • Wheel Type: Plastic
  • Wheel Dia.xW: 12x3"
  • Capacity: 3500 lbs.
  • Overall Height: 15.5"
  • -3/4" Precision Tapered Roller Bearing
Listing
BindingMisc.
Product groupHome Improvement
Product typeTOOLS
ModelS-CH-12PT
Part numberS-CH-12PT
Items per pack1
LabelHamilton
ManufacturerHamilton
Catalog
FeatureWheel Type: Plastic
CategoryTools & Home Improvement
MPNS-CH-12PT
Product groupHome Improvement
Product typeTOOLS
ManufacturerHamilton
