Hydraulic Quick Connect Hose Coupling, Socket, ST Series, Brass, Coupling Size 1/2 in, Male, Max. Working Pressure @ 70 F 2,200 psi, Max. Flow Rate 45.42 lpm

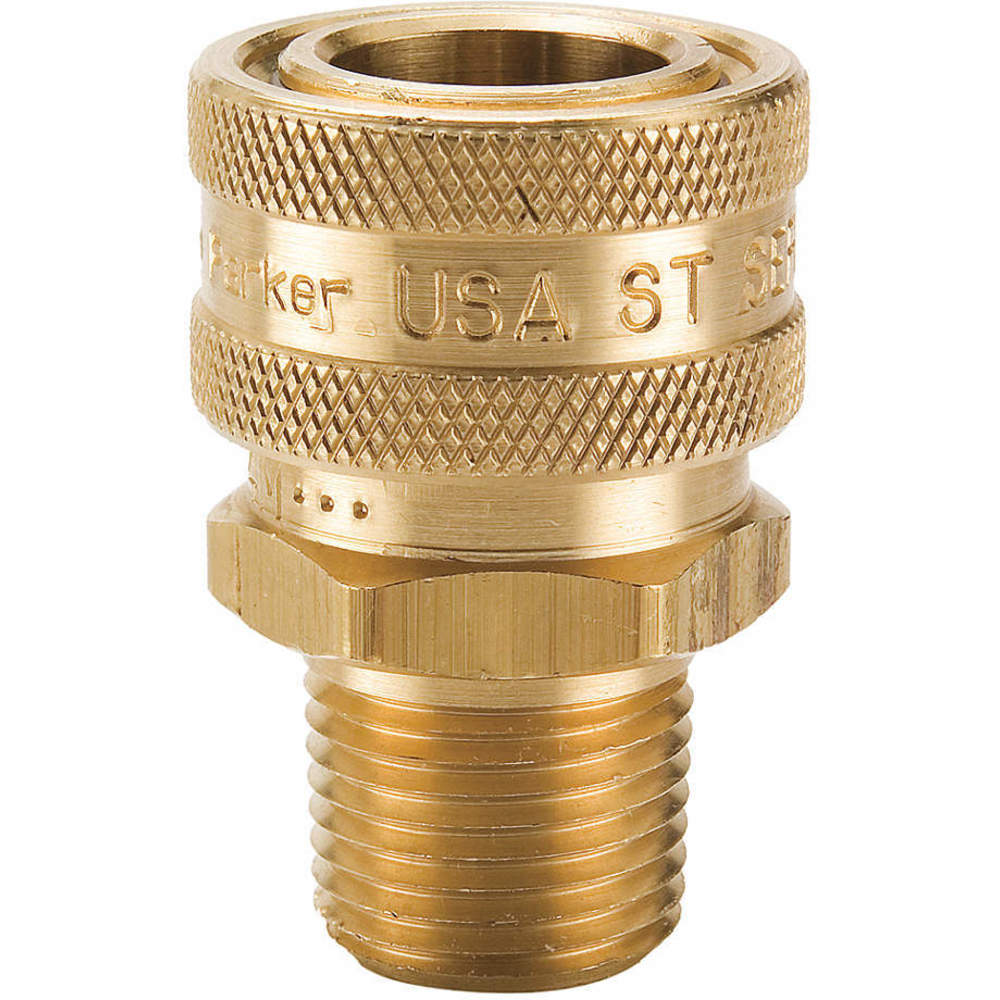

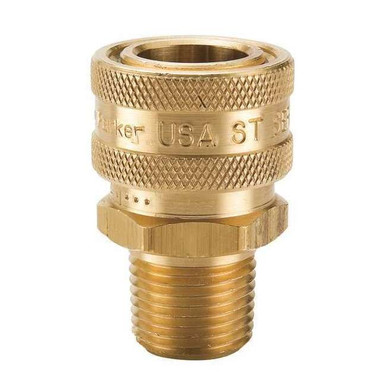

The Parker BST-4M is a non-valved hydraulic quick coupler with a 1/2 inch body and 1/2 inch NPT male port connection. It features a brass construction and is designed for use with Parker Series ST quick connect nipples in systems where media isolation is not required. The coupler is rated for a maximum pressure of 2200 PSI and is suitable for manual sleeve operation.

Hydraulic Quick Connect Hose Coupling, Socket, ST Series, Brass, Coupling Size 1/2 in, Male, Max. Working Pressure @ 70 F 2,200 psi, Max. Flow Rate 45.42 lpm

Parker . BST-4M

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerParker
CategoryId, CategoryIdL35403
CategoryIdL132
CategoryIdL210615
CategoryL1Power Transmission
CategoryL2Hydraulic Cylinders & Equipment
CategoryL3Hydraulic Hoses & Fittings
CategoryL4Hydraulic Quick Couplers
DimensionUnitinch
GTIN, UPCNone
GraingerSku31A959
UnitOfMeasureEA
Weight0.35
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
height2
jsonUrlData924526ffbdad25e5923b
length, width1.3
moq, multiple, tierMinQty11
MPN, Parker InterchangeBST-4M
qtyInStock213
qtyInStockOverride-2
SKUG4666821
snippetHydraulic Quick Connect Hose Coupling, Socket, ST Series, Brass, Coupling Size 1/2 in, Male, Max. Working Pressure @ 70 F 2,200 psi, Max. Flow Rate 45.42 lpm
tierPrice134.05
urlhttps://www.zoro.com/parker-hydraulic-quick-connect-hose-coupling-brass-body-sleeve-lock-12-14-thread-size-st-series-bst-4m/i/G4666821/
Coupler Thread Size, Thread Size1/2"-14
Coupler Body Size1/2"
Length1-61/64"
Overall Length1 15/16 in
Max Outside Dia1 19/64 in
Coupling Size1/2 in
ItemHydraulic Quick Connect Hose Coupling
Quick Coupler TypeHydraulic Coupler Body
Coupler Interchange Type, SeriesST
Connection TypeNPTF
Coupler Flow Rate12.0 gpm
Max Pressure2200 psi
Coupler Body Material, Sleeve Material, Body MaterialBrass
Coupler FinishPlain
Coupling Locking TypeSleeve
For Use WithParker ST Series
Seal MaterialNitrile
IncludesSleeve Lock
Coupler Connection TypeFNPT
