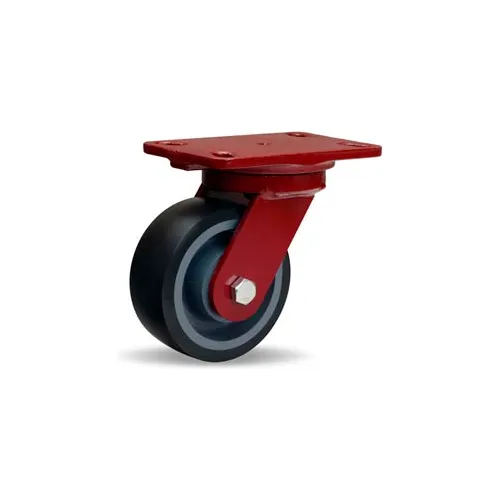

Heavy Service Swivel Caster, 5" x 2" Duralast XC Polyurethane (70D) on Cast Iron Wheel

The Hamilton Heavy Service Caster features a 5-inch diameter x 2-inch wide Duralast XC polyurethane wheel, with a capacity of 1360 pounds. It is equipped with -3/4" precision tapered roller bearings and a swivel design. The caster is manufactured by Hamilton and has a part number of S-HS-5DT70.

Heavy Service Swivel Caster, 5" x 2" Duralast XC(R); Polyurethane (70D) on Cast Iron Wheel with 3/4" Precision Tapered Roller Bearings

Hamilton . S-HS-5DT70

Gallery

Attributes

Brand name, Manufacturer name, Label, Man, Publisher, StudioHamilton
ManufacturerHamilton Hamilton Caster & Mfg Co
CategoryId, CategoryIdL36740
CategoryIdL114394
CategoryIdL24473
CategoryL1Material Handling
CategoryL2Casters & Wheels
CategoryL3Casters
CategoryL4Plate Casters
DimensionUnitinch
GraingerSku, MPN, Part Number, Model, Keyword, ModelNumber, Model_number, PartNumber, Part_number, SkuS-HS-5DT70
Extra Product NameHeavy Service Swivel Caster, 5" x 2" Duralast XC Polyurethane (70D) on Cast Iron Wheel
UPCNone
UnitOfMeasureEA
Weight13 13.0 13.00
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabel, AdultProduct, Autographed, Memorabilia, TradeInEligibleFalse
countryOfOriginUS
height, length, moq, multiple, tierMinQty1, width, Number of Wheels, Case, NumberOfItems, Number_of_items1
jsonUrlData924526ffbdad25e5923b
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG3737332
snippetHeavy Service Swivel Caster, 5" x 2" Duralast XC(R); Polyurethane (70D) on Cast Iron Wheel with 3/4" Precision Tapered Roller Bearings
tierPrice1193.99
urlhttps://www.zoro.com/hamilton-heavy-service-swivel-caster-5-x-2-duralast-xc-polyurethane-70d-on-cast-iron-wheel-s-hs-5dt70/i/G3737332/
Product Group, ProductGroupHome Improvement
Wheel Dia5
Wheel Width2
Plate Size4 1/2 x 6 1/2
Mounting Bolt Dia0.5
Mounting Height6.75
Caster Wheel ShapeStandard
Caster Wheel/Tread Material, MaterialTypePolyurethane
Load Rating, Load_capacity1360
Caster Frame MaterialForged Steel
Caster Plate Hole PatternA
Non-Marking, Thread GuardsNo
Caster Temp Range-50 to 200 deg(F)
Caster Wheel BearingsTapered
Outside Bolt Hole Spacing3 3/8 x 5 1/4
StandardsICWM
ItemSwivel Caster
Caster Core MaterialCast iron
Inside Bolt Hole Spacing2 7/16 x 4 15/16
Replacement WheelW-520-DT70-3/4
Frame FinishPowder Coat
Core ColorGray
SeriesHeavy Service
ASIN, AsinB00U2ND0NY
BrandHamilton HamiltonBuhl
Bullet_pointCapacity: 1360 lbs. Overall Height: 6-3/4" Wheel Dia.xW: 5x2" Wheel Type: Polyurethane
CatTools & Home Improvement
CatId228013
CatTree228013 468240 551240
ClassificationId511228
Colorblack
Decimal_value5.0
DisplayNameHardware
FeatureWheel Dia.xW: 5x2"
Height1000 2.00 500 6.75 75
IsDeadAsinTrue
ItemClassificationBASE_PRODUCT
ItemName, Item_nameHamilton® Heavy Service Swivel 5 x 2 Duralast™ XC Tapered 1360 Lb. Caster
Item_type_keywordplate-casters
Item_weight13.0
Length0.0 0.00 6.75
Linkhttps://m.media-amazon.com/images/I/41-idrG0izL._SL75_.jpg https://m.media-amazon.com/images/I/41-idrG0izL.jpg https://m.media-amazon.com/images/I/61LR8ajjKuL.jpg
MaterialPolyurethane Steel
Mounting_typePlate Mount
ProductTypeINDUSTRIAL_CASTERS
ProductTypeNameHARDWARE
Product_descriptionHAMILTON Heavy Service CastersA feature drop forged steel construction placing them among the toughest caster on the market today. -5/16" thick drop forged steel mounting plate on swivel casters; -1/4" thick on rigid casters. -1/4x2" plate steel legs are robotically welded inside and outside to forged steel horn base. Sturdy -3/4" diameter integrally forged kingpin with mounting plate. Main load bearing is 3-1/4" diameter CNC-machined raceway; secondary load bearing has -3/4" precision tapered thrust bearing that counteracts radial thrust. -1/2" diameter axle. Ball check type lubrication fittings in swivel assembly and wheel hubs.
Product_site_launch_date2015-02-27T14:46:30.811Z
Size1360 pound
Surface_recommendationMulti-Surface
TitleHamilton Heavy Service Casters - 5"Dia.X2"W Duralast Xc Polyurethane Wheel - 1360-Lb. Capacity - -3/4" Precision Tapered Roller Bearings - Swivel - Black
TypeSwivel
URLhttp://ecx.images-amazon.com/images/I/41-idrG0izL._SL75_.jpg
Unitinches pound pounds
Unitsinches pixels pounds
VariantMAIN
WebsiteDisplayGroupbiss_basic_display_on_website
WebsiteDisplayGroupNameBISS Basic
Width0.0 0.00 1000 2.0 5.00 500 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG3737332111 @ $193.99
AmazonB00U2ND0NY111 @ $195.37
National Supply Network17140021-211 @ $219.44
motionindustries.com05867306111 @ $805.54
ZoroG3284596111 @ $224.49
Global IndustrialWBB3583131Ships in 14 Business Days11 @ $196.95
