LM2991SX/NOPB Texas Instruments | Integrated Circuits (ICs) | DigiKey

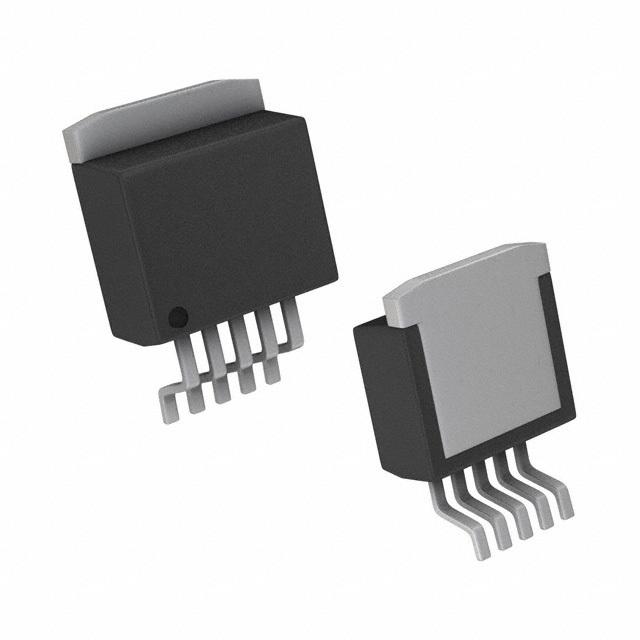

Linear Voltage Regulator IC Negative Adjustable 1 Output 1A DDPAK/TO-263-5
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Texas Instruments |
|---|---|
| CategoryL1, Category | Integrated Circuits (ICs) |
| CategoryL2 | Power Management (PMIC) |
| CategoryL3 | Voltage Regulators - Linear |
| Extra Product Name | LM2991SX/NOPB Texas Instruments | Integrated Circuits (ICs) | DigiKey |
| atoms, moq, multiple, tierMinQty1, Number of Regulators | 1 |
| extraShipping, qtyInStock | 0 |
| MPN, Manufacturer Product Number | LM2991SX/NOPB |
| packaging | Cut Tape (CT) & Digi-Reel? |
| SKU | 366996 |
| snippet, Detailed Description | Linear Voltage Regulator IC Negative Adjustable 1 Output 1A DDPAK/TO-263-5 |
| tierMinQty2 | 10 |
| tierMinQty3 | 25 |
| tierMinQty4 | 100 |
| tierMinQty5 | 250 |
| tierMinQty6 | 500 |
| tierMinQty7 | 1,000 |
| tierMinQty8 | 2,500 |
| tierMinQty9 | 5,000 |
| tierPrice1 | 3.41000 |
| tierPrice2 | 3.06700 |
| tierPrice3 | 2.89920 |
| tierPrice4 | 2.51270 |
| tierPrice5 | 2.38384 |
| tierPrice6 | 2.13900 |
| tierPrice7 | 1.80398 |
| tierPrice8 | 1.71378 |
| tierPrice9 | 1.64936 |
| Digi-Key Part Number | LM2991SX/NOPBTR-ND - Tape & Reel (TR) |
| Description | IC REG LIN NEG ADJ 1A DDPAK |
| Manufacturer Standard Lead Time | 12 Weeks |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Output Configuration | Negative |
| Output Type | Adjustable |
| Voltage - Input (Max) | -26V |
| Voltage - Output (Min/Fixed) | -3V |
| Voltage - Output (Max) | -24V |
| Voltage Dropout (Max) | 1V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 0.7 mA |
| Current - Supply (Max) | 5 mA |
| PSRR | 60dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | -40?C ~ 125?C |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-6, D?Pak (5 Leads + Tab), TO-263BA |
| Supplier Device Package | DDPAK/TO-263-5 |
| Base Product Number | LM2991 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| 366996 | 1 | 1 | 1 @ $3.41, 10 @ $3.07, 25 @ $2.90, 100 @ $2.51, 250 @ $2.38, 500 @ $2.14, 1000 @ $1.80, 2500 @ $1.71, 5000 @ $1.65 | ||
 Newark | 31AH1982 | 1 | 54 | 1 | 1 @ $4.70, 10 @ $4.49, 25 @ $4.26, 50 @ $4.08, 100 @ $3.91, 250 @ $3.79, 500 @ $3.69 |
 iodParts | LM2991SX/NOPB | 1 | 1 | ||
| Win Source | LM2991SX/NOPB | 1 | 1084 | 1 | |
| Hotenda | H2783907 | 500 | 500 | 500 @ $1.91 | |
| AmazonSC | B011NE2MNY | 1 | 1 | ||
| Digi-Key | 2139029 | 1 | 1 | 1 @ $3.96, 10 @ $3.55, 25 @ $3.36, 100 @ $2.91, 250 @ $2.76 | |
| Digi-Key | 2139033 | 1 | 1 | 1 @ $3.96, 10 @ $3.55, 25 @ $3.36, 100 @ $2.91, 250 @ $2.76, 500 @ $2.48, 1000 @ $2.25 | |
| RS Delivers | 208-8562 | 1 | 1 | 1 @ $2.86 | |
 jotrin.com | JT24-LM2991SX/NOPB | 1 | 1 | ||
| Newark | 28X3473 | 1 | 1 | ||
| LM2991SXNOPB | 1 | 1 |
