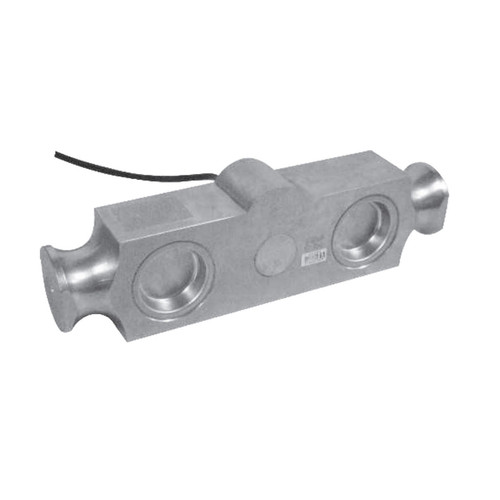

Keli KL-40 QSEC-50Klb SE 50,000 lb Double Ended Beam Load Cell, NTEP - Scales Plus
Scales Plus offers free product support from experienced technicians. Have questions about the Keli QSEC-50Klb SE? Contact us for free product support!
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | Keli |
|---|---|
| DimensionUnit | foot |
| Extra Product Name | Keli KL-40 QSEC-50Klb SE 50,000 lb Double Ended Beam Load Cell, NTEP - Scales Plus |
| keywords | Industrial Scales, Digital Scales, Laboratory Balances, Calibration Weights, Cannabis Scales, Jewelry Scales, NTEP Certified Scales, Load Cells |
| length | 40.0 |
| length_Attrib | Cable Length |
| moq, multiple, tierMinQty1 | 1 |
| MPN, SKU | QSEC-50KLB SE |
| qtyInStock | 0 |
| snippet | Scales Plus offers free product support from experienced technicians. Have questions about the Keli QSEC-50Klb SE? Contact us for free product support! |
| tierPrice1 | 360 |
| Model | QSEC-50Klb SE |
| Capacity | 50,000 lb |
| Safe Overload | 150% capacity |
| Ultimate Overload | 200% capacity |
| Construction | Alloy steel |
| Finish | Nickle plating |
| Cable Color Code | Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield |
| Rated Excitation | 10-12 VDC (maximum of 15 V) |
| Full Scale Output | 3 mV/V |
| Output Resistance | 702 (+/- 3) ohms |
| Input Resistance | 750 (+/-10) ohms |
| Operating Temperature Range | -10 to +40????? |
| IP Rating | IP68 |
| Insulation Resistance | 5000 megohms |
| Cable Length | Approximately 40 ft |
| Dimensions LxWxH (mm) | 209.6 x 49.3 x 75.5 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| scalesplus.com | QSEC-50KLB SE | 1 | 1 | 1 @ $360.00 |
