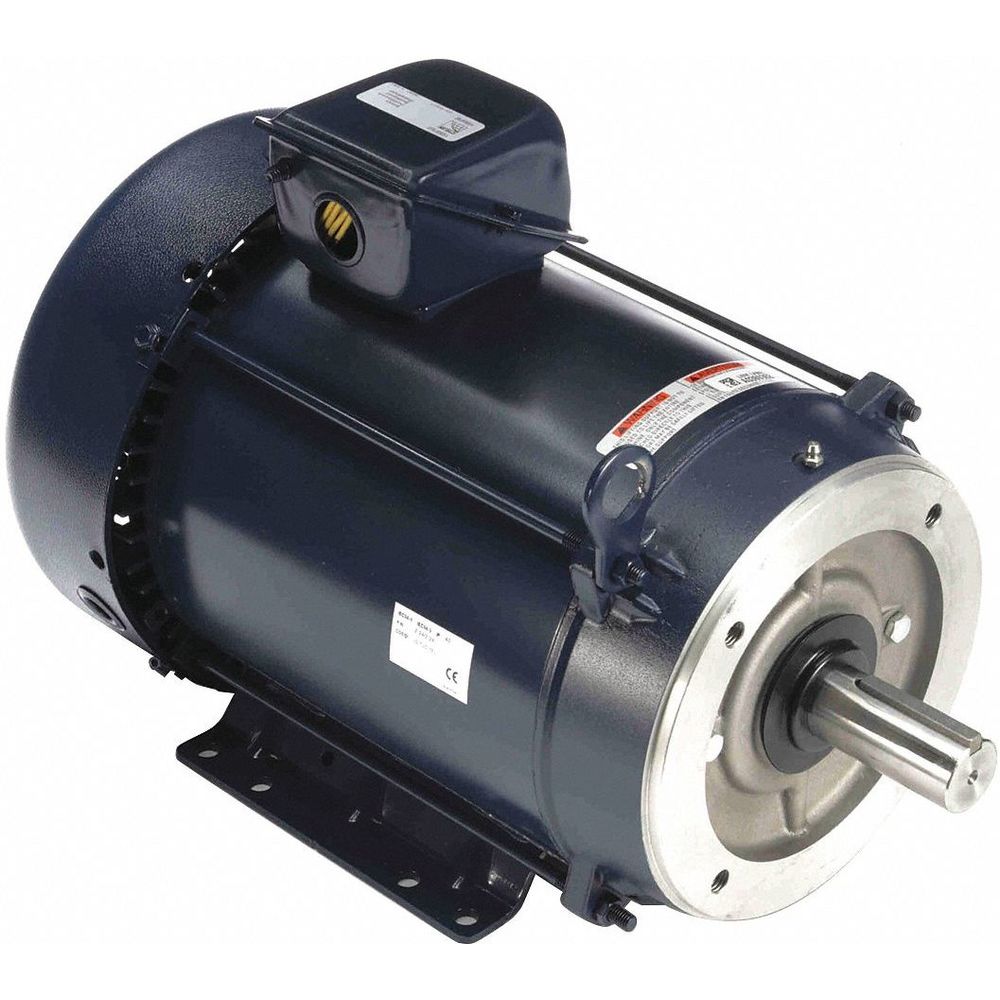

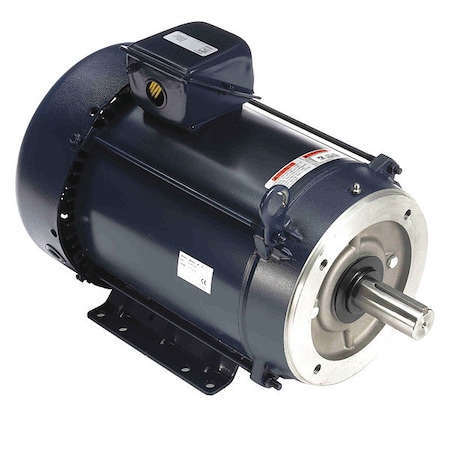

General Purpose Motor, Three Phase, 3 HP, 1,175 Nameplate RPM, 208-230/460V AC, 213TC Frame

213TTFWD6076 | General Purpose Motor, 3-Phase, Voltage 208-230/460, 3 HP | CD3TCL | Worldwide Delivery | +44 203 287 5224 | [email protected]

Marathon Motors . 213TTFWD6076

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMarathon Motors
DimensionUnitinch
Extra Product NameGeneral Purpose Motor, Three Phase, 3 HP, 1,175 Nameplate RPM, 208-230/460V AC, 213TC Frame
UnitOfMeasureEA
Voltage, Voltage @ 50Hz208-230/460V AC
Weight117
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
extendedLead25
extendedQty-2
height14
jsonUrlData924526ffbdad25e5923b
length22.19
moq, multiple, tierMinQty1, No of Speeds1
MPN213TTFWD6076
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG6546193
tierPrice11212.18
urlhttps://www.zoro.com/marathon-motors-general-purpose-motor-three-phase-3-hp-1-175-nameplate-rpm-208-230460v-ac-213tc-frame-213ttfwd6076/i/G6546193/
width16.5
ItemGeneral Purpose Motor
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP, HP @ 50Hz3
Nameplate RPM, RPM @ 50Hz1,175
Frame213TC
Motor Shaft RotationCW/CCW
Full Load Amps, Full Load Amps @ 50Hz9.2-8.8/4.4
Nominal Efficiency89.5 %
Voltage Compatibility200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
StandardsCE, CSA, UL Recognized
PhaseThree
Shaft Length3 1/8 in
Motor Mounting PositionHorizontal
Motor Service Factor, Service Factor @ 50Hz1.15
Motor BearingsBall
Motor Frame MaterialSteel
Shaft Dia1 3/8 in
RPM Group1101-1200
RPM Range1,101-1,200
Length Less Shaft16 3/8 in
Inverter Rated, Usable @ 208VYes
CC NumberCC003A
Hz60/50
Motor Thermal ProtectionNone
Manufacturers Warranty Length1 yr
Max Ambient Temp40 Degrees C
Overall Length19 1/2 in
Duty, Duty CycleContinuous
Motor ApplicationGeneral Application
Motor Mounting TypeRigid Base
Motor Shaft DesignKeyed
Ins ClassF
Green Certification or Other RecognitionNEMA Premium(R) Rated
Usable @ 200VNo
NEMA DesignB
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG6546193111 @ $1212.18
Raptor SuppliesCD3TCL111 @ $2242.82
Dealers Electric213TTFWD60761Backordered11 @ $1187.48
motorsandcontrol.comE2011A111 @ $0.00
Galco213TTFWD6076-MARA111 @ $970.50
