Parker

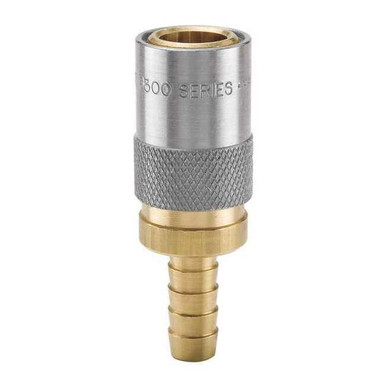

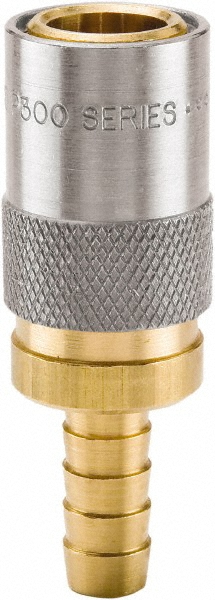

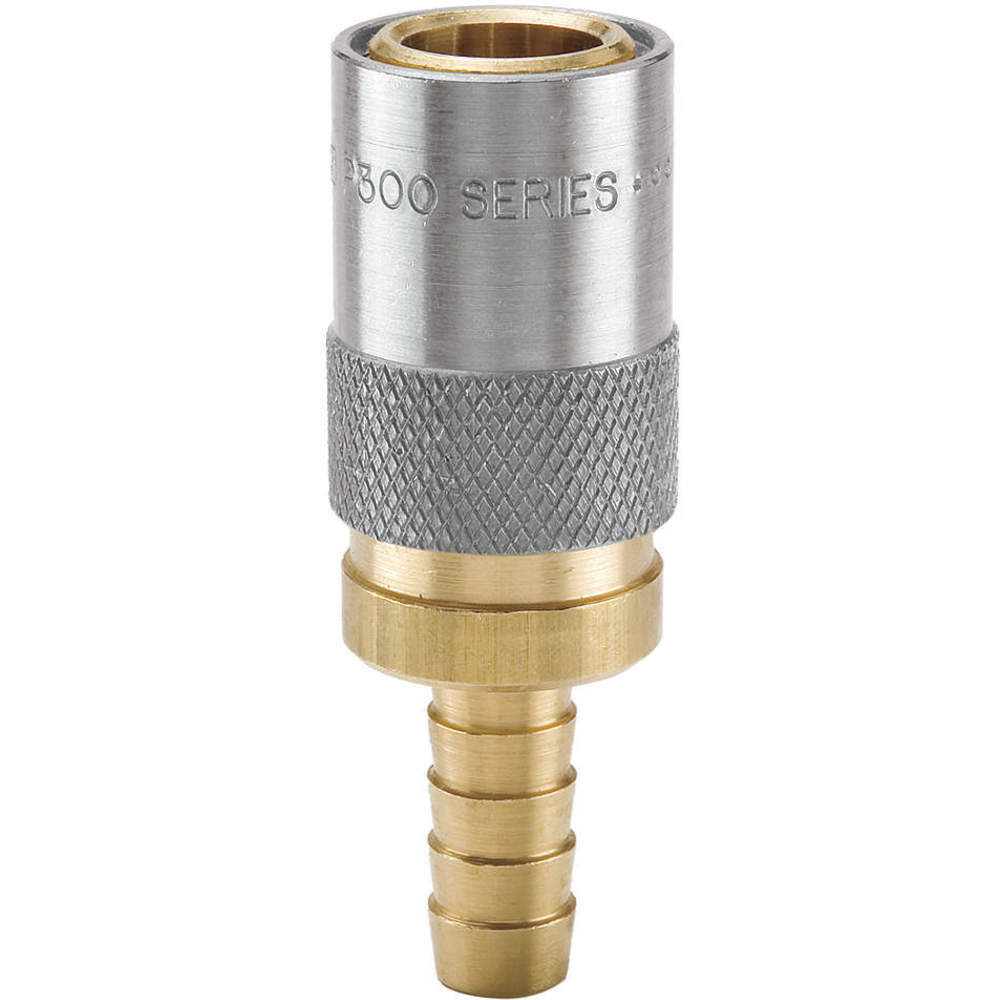

Quick Coupling, 3/8 Inch Size, Mold Coolant | 48C256 | Worldwide Delivery | +44 203 287 5224 | [email protected]

Parker . PC308V

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameParker
DimensionUnitinch
GraingerSku48C256
UPCNone
UnitOfMeasureEA
Weight0.28
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
height, width1.5
jsonUrlData924526ffbdad25e5923b
length3.4
moq, multiple, tierMinQty11
MPNPC308V
qtyInStock295
qtyInStockOverride-2
SKUG5131576
tierPrice126.00
urlhttps://www.zoro.com/parker-hydraulic-quick-connect-hose-coupling-brass-body-sleeve-lock-moldmate-series-pc308v/i/G5131576/
Quick Coupler TypeHydraulic Coupler Body
ItemHydraulic Quick Connect Hose Coupling
Coupler Interchange Type, SeriesMoldmate
Connection TypeHose Barb
Coupler Body Size3/8"
Coupler Flow Rate40.0 gpm
Max Pressure, Max Working Pressure @ 70 F200 psi
Coupler Body Material, Body MaterialBrass
Sleeve MaterialSteel
Coupling Locking TypeSleeve
Seal MaterialFluorocarbon, Silicone
Bearing Material440 Stainless Steel
Locking MechanismBall
Hose Inside Dia1/2"
Operating Temp Range-20 Degrees to 400 Degrees F
Seal TypeTubular Valve
Coupler Connection TypeStandard Hose Barb
Shut OffPoppet Shut Off
Overall Length3 11/64 in
Hose Fitting GenderMale
Max Flow Rate22.71 lpm
Coupling Size3/8 in
Valve TypePoppet
Includes Bearing, Includes Shut Off, Includes ValveYes
Fitting TypeMale Hose Barb
Coupling ComponentSocket
Finish/CoatingPlain
Max Outside Dia1 1/64 in
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG5131576129511 @ $26.00
Grainger48C25611
Raptor SuppliesAG6UDK111 @ $57.64
simsupply.comZO-G513157615711 @ $36.24
Airline Hydraulics1685269111 @ $34.53
MRO Stop9644008756111 @ $26.15
National Supply Network921840761-211 @ $38.14
Airline HydraulicsPARKER PC308V111 @ $34.53
