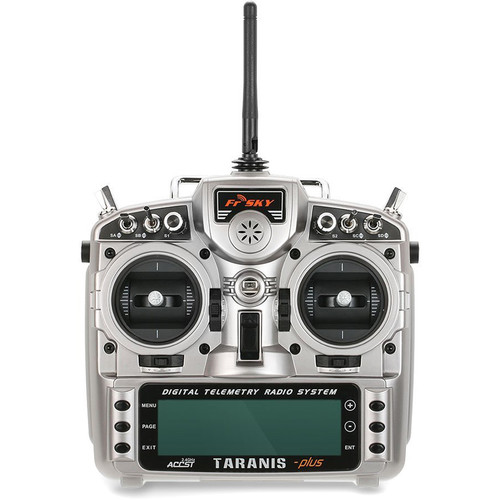

FrSky Taranis X9D Plus Mode-2 Transmitter with X8R Receiver

Model Name:Taranis X9D Plus Specifications: Model Name: Taranis X9D Plus Number of Channels: Up to 16 channels Operating Voltage Range:6~15V (2S, 3S Lipos are acceptable) Operating Current: 260mA maximum (both RF module and backlit are on) Operating Temperature: -10~60 Backlight LCD Screen: 212*64, 2 color combinations for select Model Memories: 60 (extendable by SD card) Compatibility: FrSky X series, D series and V8-II series receivers (plus other receivers if an external module is used) Taranis X9D Plus-EU version is only compatible with X series receiver EU version. Features: Quad Ball Bearing Gimbals Receiver Match Audio Speech Outputs (values, alarms, settings, etc.) Real-time Flight Data Logging Receiver Signal Strength Indicator (RSSI) Alerts Super Low Latency Smart Port Supported Vibration Alerts Model Name: X8R-PCB Specifications: Dimension: 46.47*26.78*14.12mm (L *W *H) Weight: 16.6g Number of Channels: 16CH (1~8ch from conventional channel outputs, 1~16ch from SBUS port or combine two X8R to become a 16 channels receiver) With RSSI PWM output (0~3.3V) Operating Voltage Range: 4.0~10V Operating Current: 100mA@5V Operating Range: full range (>1.5km) Firmware Upgradeable Compatibility: FrSky DFT/DJT/DHT/DHT-U in D_mode FrSky Taranis X9D Plus/XJT in D8 mode FrSky Taranis X9D Plus/XJT in D16 mode X8R-EU version only works with FrSky Taranis X9D Plus-EU version/XJT-EU version in D16-EU mode. Features: 1)More number of channels: 1~8ch from conventional channel outputs, 1~16ch from SBUS port, or combine two X8R to become a 16 channels receiver. 2)Parallel two X8R to become a 16 channel receiver. 3)With RSSI PWM output (0~3.3V) 4)Smart Port enabled, realizing two-way full duplex transmission. Includes Aluminum Travel Case
