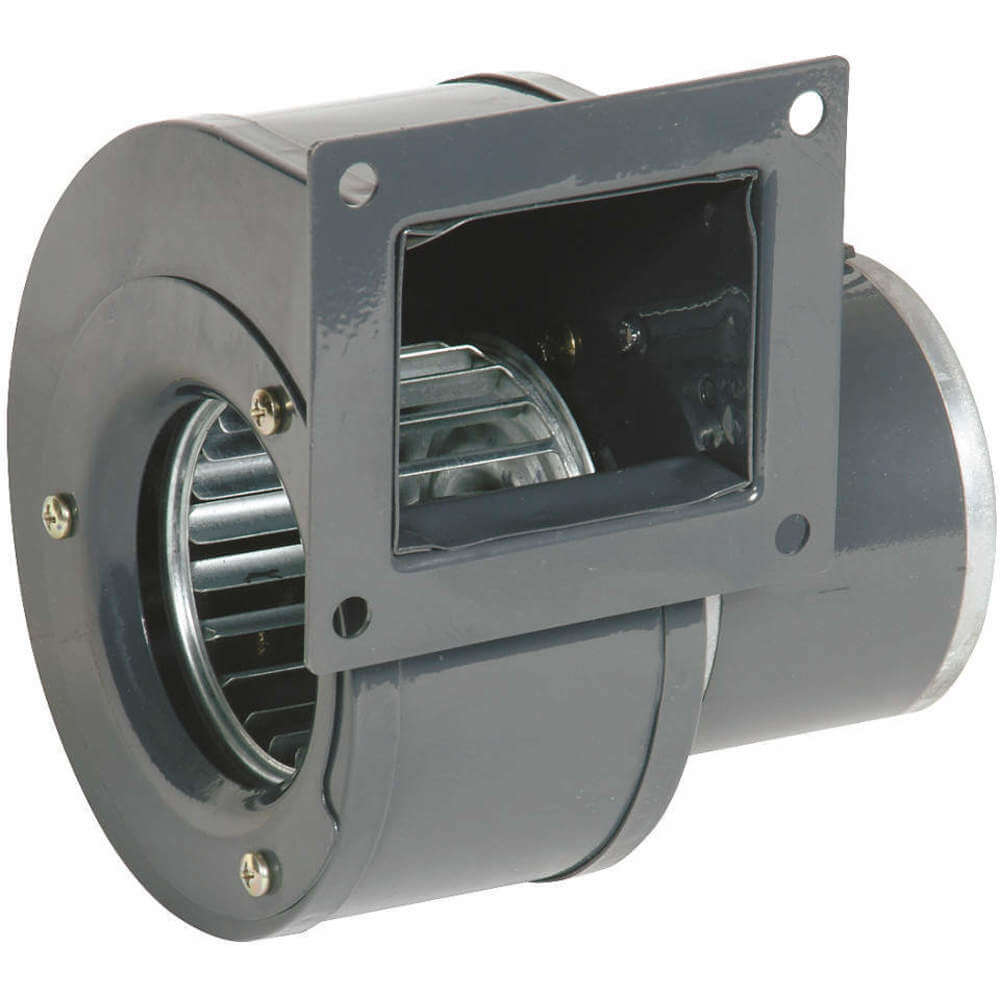

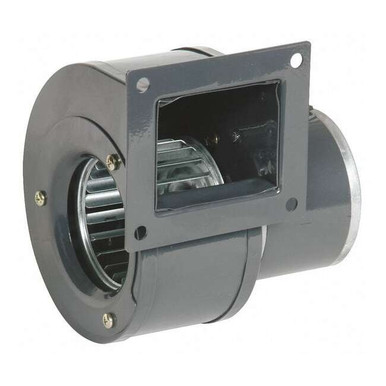

Rectangular OEM Blower, 3270 RPM, 1 Phase, Direct, Rolled Steel

The Dayton 3FRG8 DC Blower features a dynamically balanced design for smooth and quiet operation. It provides a flow rate of 149 CFM at 3270 RPM and operates within a temperature range of -20°F to 104°F. The blower is a direct replacement for many OEM blowers and is designed for use with 12 VDC power. Its compact design makes it suitable for a variety of industrial applications.

Blower 149 Cfm 12vdc 5.50a 3270 Rpm | AC9CZZ | Worldwide Delivery | +44 203 287 5224 | [email protected]

Dayton . 3FRG8

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDayton
CategoryId, CategoryIdL35000
CategoryIdL130
CategoryIdL24581
CategoryL1Heating & Cooling
CategoryL2Blowers
CategoryL3OEM Specialty Blowers
DimensionUnitinch
GraingerSku, MPN3FRG8
Extra Product NameRectangular OEM Blower, 3270 RPM, 1 Phase, Direct, Rolled Steel
UPC190735285572
UnitOfMeasureEA
Weight5.5
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginZZ
height9.6
jsonUrlData924526ffbdad25e5923b
length8.4
moq, multiple, tierMinQty1, Number of Speeds, Phase, Number of Inlets1
qtyInStock53
qtyInStockOverride-2
SKUG1449384
tierPrice1113.25
urlhttps://www.zoro.com/dayton-rectangular-oem-blower-3270-rpm-1-phase-direct-rolled-steel-3frg8/i/G1449384/
width7.2
Inlet Dia, Dimension F, Inlet Diameter3 1/8 in
Overall Height, Dimension E, Housing Height5 3/4 in
Overall Width, Dimension C, Housing Width8 3/4 in
Blower Wheel Diameter3 15/16 in
Dimension K3 1/2 in
Dimension J5 5/8 in
Dimension M2 7/8 in
Dimension B6 3/8 in
Outlet Height2 3/16 in
Dimension A, Overall Depth, Housing Depth5 3/8 in
Outlet Width3 1/4 in
Dimension L4 in
Lead Length13 in
Dimension D3 5/16 in
Blower Wheel Width1 7/8 in
Wheel Dimensions3 7/8 in Dia. x 2 1/2 in W
Wheel Diameter3 7/8 in
Shaft Diameter, Wheel Bore Diameter8 mm
Flange Size4 7/16 in W x 3 1/2 in H
Manufacturer Warranty Length1 yr Limited
Outlet Size2 1/8 in x 3 1/4 in
Outlet Diameter, Includes Drive Package, Airflow @ 13 00 in SP, Airflow @ 5 000 in SP, Airflow @ 3 000 in SP, Airflow @ 8 000 in SP, Airflow @ 4 000 in SP, Airflow @ 2 000 in SP, Frequency, Airflow @ 7 000 in SPNot Applicable
Wheel Width2 1/2 in
CFM @ 0 100-In SP140
Drive TypeDirect
Full Load Amps5.50
Housing MaterialSteel
IncludesDischarge Mounting Flange
Blower ItemOEM Specialty Blower
Blower Outlet ShapeRectangular
With Flange, Blower Conduit Box, Includes MotorYes
Blower Motor TypeDC
Blower Voltage12V DC
Blower Thermal ProtectionNo Thermal Protection
CFM @ 0 300-In SP124
Mounting PositionAll Position
Housing FinishEnamel
RPM3300
CFM @ 0 400-In SP120
CFM @ 0 000-In SP149
Bearing TypeBall
CFM @ 0 500-In SP110
Agency ComplianceUL Recognized US and Canada (E47479)
Housing ColorGray
ItemOEM Blower
Max Inlet Temp, Max Ambient Temp, Maximum Inlet Air Temperature104 Degrees F
Motor InsulationClass B
Motor EnclosureOpen
CFM @ 0 200-In SP126
Wheel TypeForward Curve
Motor Speed3,300 RPM
Current5.5 A
Motor Enclosure Design_TableOpen Motor
Brake Horsepower1/25 hp
MarketCommercial, Industrial, Residential
For Fan Speed (Dependent on Motor)0 RPM to 3,300 RPM
Airflow @ Static Pressures149 cfm @ 0.000 in SP / 132 cfm @ 0.250 in SP
Airflow @ 0 250 in SP132 cfm
Housing Material GradeSPCC
RotationCW
Speed Controllable, For High-Static Pressure Applications, Corrosion Resistant, High-Efficiency MotorNo
Mounting OrientationMultiposition
Electrical ConnectionWire Leads
Airflow @ 2 500 in SP RangeMore than 5000 cfm
For Air TypeClean Air
Airflow @ 0 000 in SP149 cfm
Spark Resistant Construction TypeNot Rated
Motor Frame Designation12 VDC motor
MaterialSteel Wheel & Steel Housing
Wheel Material FinishGalvanized

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG144938415311 @ $113.25
Grainger3FRG8111 @ $133.23
Raptor SuppliesAC9CZZ111 @ $186.08
sustainablesupply.comC11357731-211 @ $126.95
emotorpro.com3FRG81-211 @ $193.16
simsupply.comZO-G144938413911 @ $131.47
ptacsolutions.com20622119211 @ $129.01
