QSE-014-01-L-D-DP-A-K-TR Samtec Inc. | Connectors, Interconnects | DigiKey

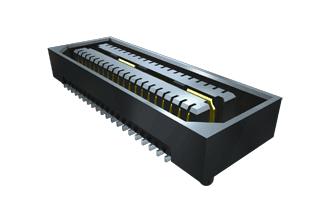

28 Position Connector Differential Pair Array, Female Surface Mount Gold
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Samtec Inc. |
|---|---|
| DimensionUnit | mm |
| Extra Product Name | QSE-014-01-L-D-DP-A-K-TR Samtec Inc. | Connectors, Interconnects | DigiKey |
| atoms, tierMinQty1 | 1 |
| extraShipping, qtyInStock | 0 |
| height | 5.0 |
| height_Attrib | Mated Stacking Heights |
| moq, multiple, tierMinQty5 | 100 |
| MPN | QSE-014-01-L-D-DP-A-K-TR |
| SKU | 6561624 |
| tierMinQty2 | 10 |
| tierMinQty3 | 25 |
| tierMinQty4 | 50 |
| tierPrice1 | 8.22000 |
| tierPrice2 | 7.42800 |
| tierPrice3 | 7.01720 |
| tierPrice4 | 6.84600 |
| tierPrice5 | 6.50370 |
| Category | Connectors, Interconnects |
| Series | Q Strip? QSE |
| Package | Tape & Reel (TR) |
| Part Status | Active |
| Connector Type | Differential Pair Array, Female |
| Number of Positions | 28 |
| Pitch | 0.031" (0.80mm) |
| Number of Rows | 2 |
| Mounting Type | Surface Mount |
| Features | Board Guide, Ground Bus (Plane), Pick and Place |
| Contact Finish | Gold |
| Contact Finish Thickness | 10.0?in (0.25?m) |
| Mated Stacking Heights | 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm |
| Height Above Board | 0.128" (3.25mm) |
| Base Product Number | QSE-014 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | 6561624 | 100 | 100 | 1 @ $8.22, 10 @ $7.43, 25 @ $7.02, 50 @ $6.85, 100 @ $6.50 | |
| Newark | 96P2760 | 1 | 1 | 1 @ $7.63, 1000 @ $6.65, 2500 @ $6.33 | |
 Radwell | QSE-014-01-L-D-DP-A-K-TR | 125 | 125 | 1 @ $9.00 | |
| Digi-Key | 9594524 | 1 | 314 | 1 | 1 @ $7.58, 10 @ $7.27, 25 @ $6.64, 50 @ $6.32, 100 @ $6.00 |
| Digi-Key | 9596079 | 1 | 94 | 1 | 1 @ $8.22, 10 @ $7.43, 25 @ $7.02, 50 @ $6.85, 100 @ $6.50, 475 @ $5.73, 950 @ $5.06 |
| Samtec | QSE-014-01-L-D-DP-A-K-TR | 1 | 474 | 1 | 1 @ $6.50, 10 @ $6.00, 25 @ $5.68, 50 @ $5.47, 100 @ $4.20, 500 @ $3.78, 1000 @ $2.93, 4750 @ $2.09, 12825 @ $1.93, 28025 @ $1.79 |
 Newark | 30AJ6980 | 1 | 13 | 1 | 1 @ $5.42 |
