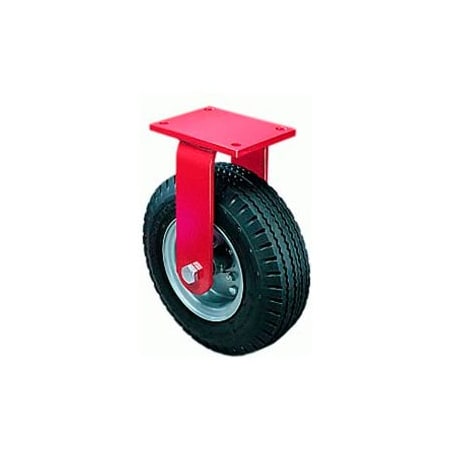

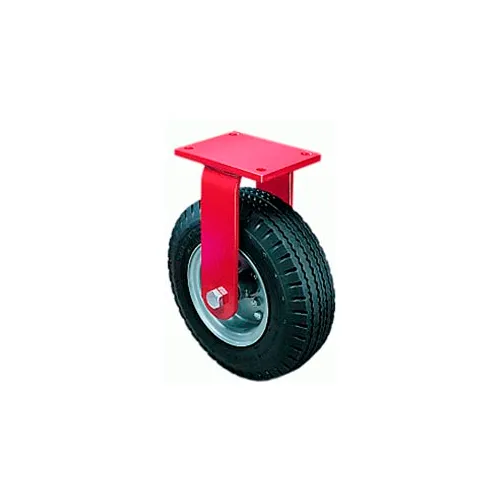

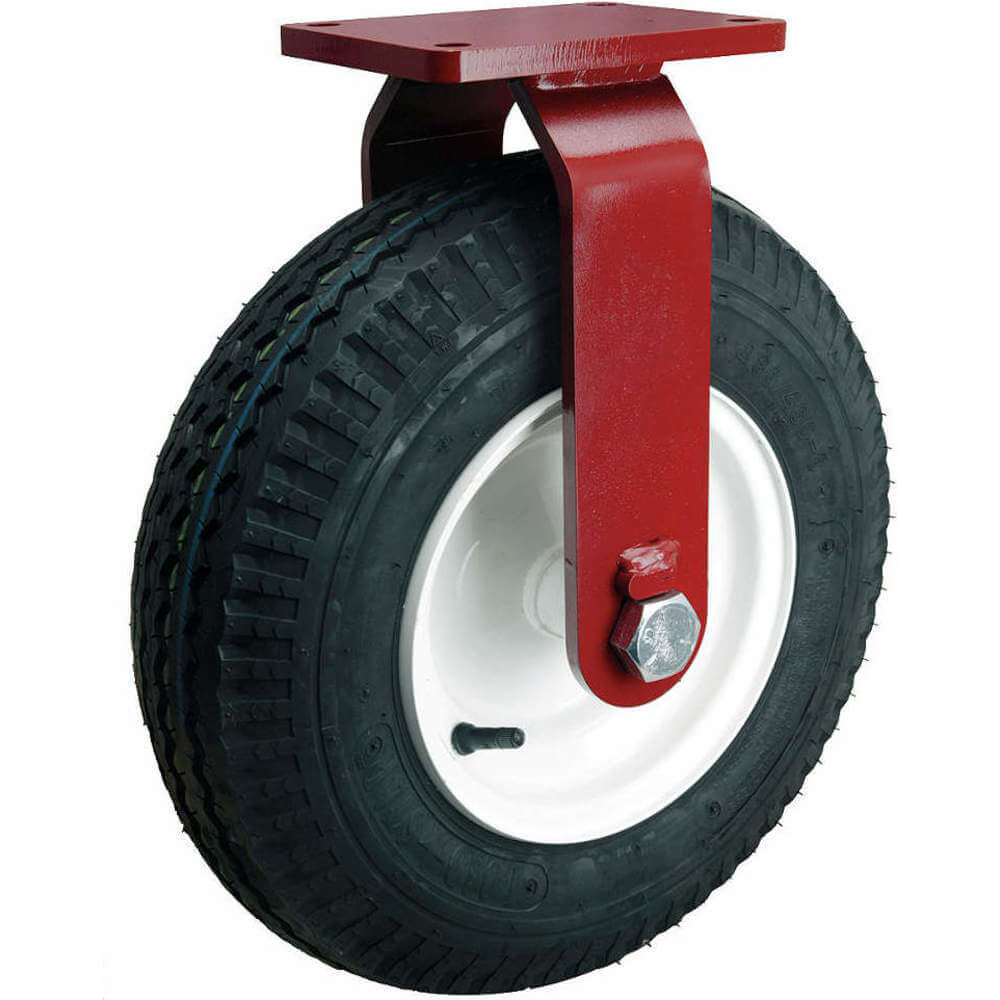

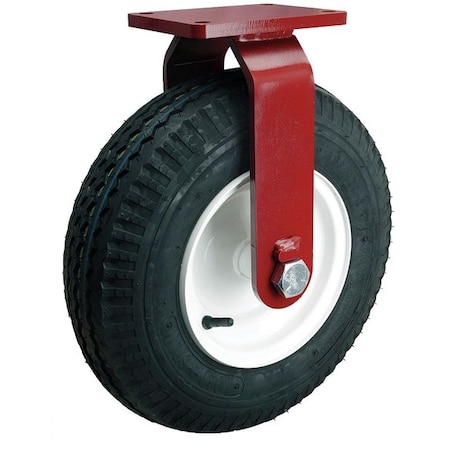

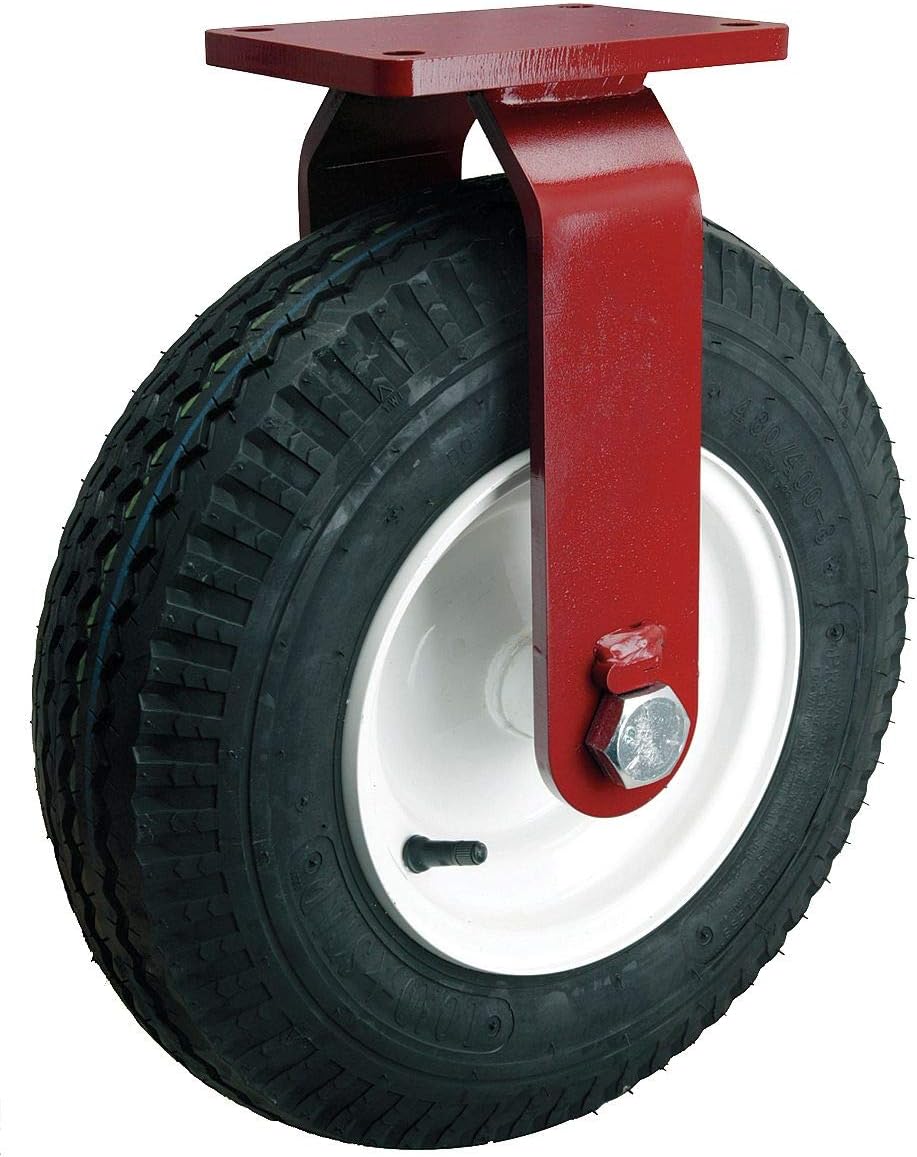

Rigid Pneumatic Caster,16 in.,1220 lb.
Plate Caster with Pneumatic Wheels, Load Rating Range 1000 to 2999 lb, Load Rating 1220 lb, Tread Sawtooth, Wheel Dia. 16 in, Wheel Width 4 7/8 in, Inside Bolt Hole Spacing 4-1/8 in x 6-1/8 in, Outside Bolt Hole Spacing 4-1/8 in x 6-1/8 in, Caster Brake Type No Brake Included, Caster Product Group Rigid Caster, Caster Sub-Type Rigid, Operating Temperature Range -30 Degrees to 120 Degrees F, Non-Marking No, Wheel/Tread Material Rubber, Tire Rim Dia. 8 in, Frame Finish Enamel, Tread Color Black
Gallery
Attributes
| Brand name, Manufacturer name | Hamilton |
|---|---|
| Manufacturer, Label, Man, Publisher, Studio | Hamilton Hamilton Caster & Mfg. Co. |
| CategoryId, CategoryIdL3 | 6740 |
| CategoryIdL1 | 14394 |
| CategoryIdL2 | 4473 |
| CategoryL1 | Material Handling |
| CategoryL2 | Casters & Wheels |
| CategoryL3 | Casters |
| CategoryL4 | Plate Casters |
| DimensionUnit | inch |
| GraingerSku | 5VF84 |
| Extra Product Name | Rigid Pneumatic Caster,16 in.,1220 lb. |
| UPC | None |
| UnitOfMeasure | EA |
| Weight | 34.5 32 32.0 32.00 32.1 |
| WeightUnit | lbs |
| cali_prop65_orglabel, cali_prop65_whtlabel, AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligible | False |
| countryOfOrigin | ZZ |
| height | 21.5 |
| jsonUrlData | 924526ffbdad25e5923b |
| length, width | 13.7 |
| moq, multiple, tierMinQty1, Number of Wheels, Case, Item_package_quantity, NumberOfItems, Number_of_items, PackageQuantity | 1 |
| MPN, Part Number, Model, Keyword, ModelNumber, Model_number, PartNumber, Part_number | R-70166-PR |
| qtyInStock | 0 |
| qtyInStockOverride | Drop Ship |
| SKU | G6182251 |
| tierPrice1 | 275.99 |
| url | https://www.zoro.com/hamilton-rigid-pneumatic-caster-16-in-1220-lb-r-70166-pr/i/G6182251/ |
| Product Group | BISS |
| Wheel Dia | 16 in |
| Wheel Width | 4 7/8 in |
| Overall Height | 18-3/4" |
| Mounting Height | 18 3/4 in |
| Mounting Plate Size | 5-1/2 in x 7-1/2 in |
| Mounting Bolt Dia | 1/2 in |
| Tire Rim Dia | 8 in |
| Plate Size | 5-1/8" x 7-1/2" |
| Hub Width | 4-7/8" |
| Item | Plate Caster with Pneumatic Wheels |
| Caster Sub-Type | Rigid |
| Caster Load Rating Range | Medium-Duty |
| Caster Product Group | Rigid Caster |
| Load Rating | 1220 lb |
| Wheel/Tread Material | Rubber |
| Wheel/Tread Hardness Rating | Soft |
| Wheel Bearing Type | Roller |
| Mounting Plate Bolt Hole Pattern | D |
| Inside Bolt Hole Spacing, Outside Bolt Hole Spacing | 4-1/8 in x 6-1/8 in |
| Number of Mounting Holes | 4 |
| Caster Brake Type | No Brake Included |
| Non-Marking | No |
| ASIN, Asin | B000LA0DYM B007I9WDE2 |
| Amount | 315.45 |
| Binding | Misc. |
| Brand | Hamilton HamiltonBuhl |
| Bullet_point | Capacity: 1220 lbs. For the past 100 years, we've earned a reputation for building the industry's most durable casters and wheels Manufactured in united states Overall Height: 18-3/4" Tapered The economic" kingpin less caster featured an unconventional upper raceway for added vertical load handling Wheel Dia.: 16" |
| Cat | Industrial & Scientific Tools & Home Improvement |
| CatId | 16310091 228013 |
| CatTree | 16310091 16310161 228013 468240 551240 |
| ClassificationId | 511228 |
| Color | Red red |
| CurrencyCode | USD |
| DisplayName | Hardware |
| Feature | "For the past 100 years, we've earned a reputation for building the industry's most durable casters and wheels" Wheel Dia.: 16" |
| Generic_keyword | C & H Casters & Wheels Material Handling Plate Casters |
| Height | 0.0 0.00 1200 18.75 250 5.5 500 75 |
| Identifier | 6962732435052 |
| IdentifierType | EAN |
| IsBrandQuery, IsDeadAsin | True |
| ItemClassification | BASE_PRODUCT |
| ItemName, Item_name | Hamilton Cush-N-Aire Pneumatic Caster - 16"Dia. Wheel - Tapered Bearing - Rigid Hamilton R-70166-PR Rigid Caster 7000 16" Pneumatic 1220 Crimson Red |
| Item_package_weight | 32.0 32.1 |
| Item_type_keyword | plate-casters |
| Item_weight | 32.0 |
| Length | 0.0 0.00 16.0 18.75 7.5 |
| Link | https://m.media-amazon.com/images/I/31pEobOxujL._SL75_.jpg https://m.media-amazon.com/images/I/31pEobOxujL.jpg https://m.media-amazon.com/images/I/41SzQsRS1PL._SL75_.jpg https://m.media-amazon.com/images/I/41SzQsRS1PL.jpg https://m.media-amazon.com/images/I/61LevO1Eq3L.jpg |
| Material, MaterialType | Steel |
| ProductGroup | BISS BISS Basic Home Improvement |
| ProductType | HARDWARE MATERIAL_HANDLING |
| ProductTypeName | HARDWARE INDUSTRIAL_CASTERS MATERIAL_HANDLING |
| Product_description | All swivels are S.A.E. 1045 drop forged steel with an integrally forged kingpin and precision tapered thrust bearing to ensure easy swiveling and longer life. These shock-absorbing casters are popular for handling missile components, electronic equipment, ceramics, liquids, etc., as well as for use outdoors over rough surfaces. Pneumatic tires offer variable flotation: reduce inflation pressure to improve cushioning for lighter loads, or inflate fully for optimum rollability and capacity loads.A RigidA models are constructed of plate steel legs welded inside and outside to steel mounting plate.A |
| Product_site_launch_date | 2013-03-20T09:11:37.041Z 2017-09-11T08:00:01.000Z |
| ReleaseDate | 2017-09-11 |
| Sku | HAMILTON R-70166-PR |
| Street_date | 2017-09-11T00:00:01Z |
| String_value | 5.5 |
| Supplier_declared_dg_hz_regulation | unknown |
| Title | Hamilton Cush-N-Aire Pneumatic Caster - 16"Dia. Wheel - Tapered Bearing - Rigid Hamilton R-70166-PR RIGID CASTER 7000 16" PNEUMATIC 1220 Crimson Red Hamilton R-70166-PR Rigid Caster 7000 16" Pneumatic 1220 Crimson Red |
| Type | Each ean |
| URL | https://m.media-amazon.com/images/I/31pEobOxujL._SL75_.jpg https://m.media-amazon.com/images/I/41SzQsRS1PL._SL75_.jpg |
| Unit | inches pounds |
| Unit_count | 1.0 |
| Units | inches pixels pounds |
| Variant | MAIN PT01 |
| WebsiteDisplayGroup | biss_basic_display_on_website home_improvement_display_on_website |
| WebsiteDisplayGroupName | BISS Basic Home Improvement |
| Width | 0.0 0.00 16.0 16.00 193 385 5.5 58 7.5 925 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| G6182251 | 1 | 1 | 1 @ $275.99 | ||
| AE6VMH | 1 | 1 | 1 @ $580.33 | ||
| B000LA0DYM | 1 | -2 | 1 | 1 @ $355.88 | |
 National Supply Network | 1785001 | 1 | -2 | 1 | 1 @ $407.17 |
| sustainablesupply.com | C1565522 | 1 | -2 | 1 | 1 @ $360.37 |
| motionindustries.com | 01063416 | 1 | 1 | 1 @ $504.95 | |
 Zoro | G304872799 | 1 | 1 | 1 @ $599.99 | |
 Global Industrial | WBB356984 | 1 | -2 | 1 | 1 @ $405.95 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Hamilton Cush-N-Aire Pneumatic Caster - 16"Dia. Wheel - Tapered Bearing - Rigid
Brand: Hamilton
All swivels are S.A.E. 1045 drop forged steel with an integrally forged kingpin and precision tapered thrust bearing to ensure easy swiveling and longer life. These shock-absorbing casters are popular for handling missile components, electronic equipment, ceramics, liquids, etc., as well as for use outdoors over rough surfaces. Pneumatic tires offer variable flotation: reduce inflation pressure to improve cushioning for lighter loads, or inflate fully for optimum rollability and capacity loads.A RigidA models are constructed of plate steel legs welded inside and outside to steel mounting plate.A
Details
- Wheel Dia.: 16"
- Tapered
- Capacity: 1220 lbs.
- Overall Height: 18-3/4"
Listing
| Product group | Home Improvement |
|---|---|
| Product type | HARDWARE |
| Model | R-70166-PR |
| Part number | R-70166-PR |
| Items per pack | 1 |
| Label | Hamilton |
| Manufacturer | Hamilton |
Catalog
| Feature | Wheel Dia.: 16" |
|---|---|
| Category | Tools & Home Improvement |
| MPN | R-70166-PR |
| Product group | Home Improvement |
| Product type | HARDWARE |
| Manufacturer | Hamilton |
Hamilton R-70166-PR Rigid Caster 7000 16" Pneumatic 1220 Crimson Red
Brand: HamiltonBuhl
Details
- For the past 100 years, we've earned a reputation for building the industry's most durable casters and wheels
- The economic" kingpin less caster featured an unconventional upper raceway for added vertical load handling
- Manufactured in united states
Listing
| Binding | Misc. |
|---|---|
| Product group | BISS Basic |
| Product type | MATERIAL_HANDLING |
| Model | R-70166-PR |
| Part number | R-70166-PR |
| Items per pack | 1 |
| Label | Hamilton Caster & Mfg. Co. |
| Manufacturer | Hamilton Caster & Mfg. Co. |
Catalog
| Feature | "For the past 100 years, we've earned a reputation for building the industry's most durable casters and wheels" |
|---|---|
| Category | Industrial & Scientific |
| MPN | R-70166-PR |
| Product group | BISS |
| Product type | MATERIAL_HANDLING |
| Manufacturer | Hamilton Caster & Mfg. Co. |
