Where can I buy 182TTDBD6076?

182TTDBD6076 is available from Zoro, Grainger, Raptor Supplies, sustainablesupply.com, motorsandcontrol.com. See pricing comparison above.

What is the price of 182TTDBD6076?

Pricing ranges from $560.86 to $1497.67 depending on quantity and distributor.

Is 182TTDBD6076 in stock?

Yes, 182TTDBD6076 is currently in stock at multiple distributors with immediate availability.

Marathon Motors

Name: Marathon Motors
Brand: Marathon Motors
Price: 651.99 USD
Availability: OutOfStock

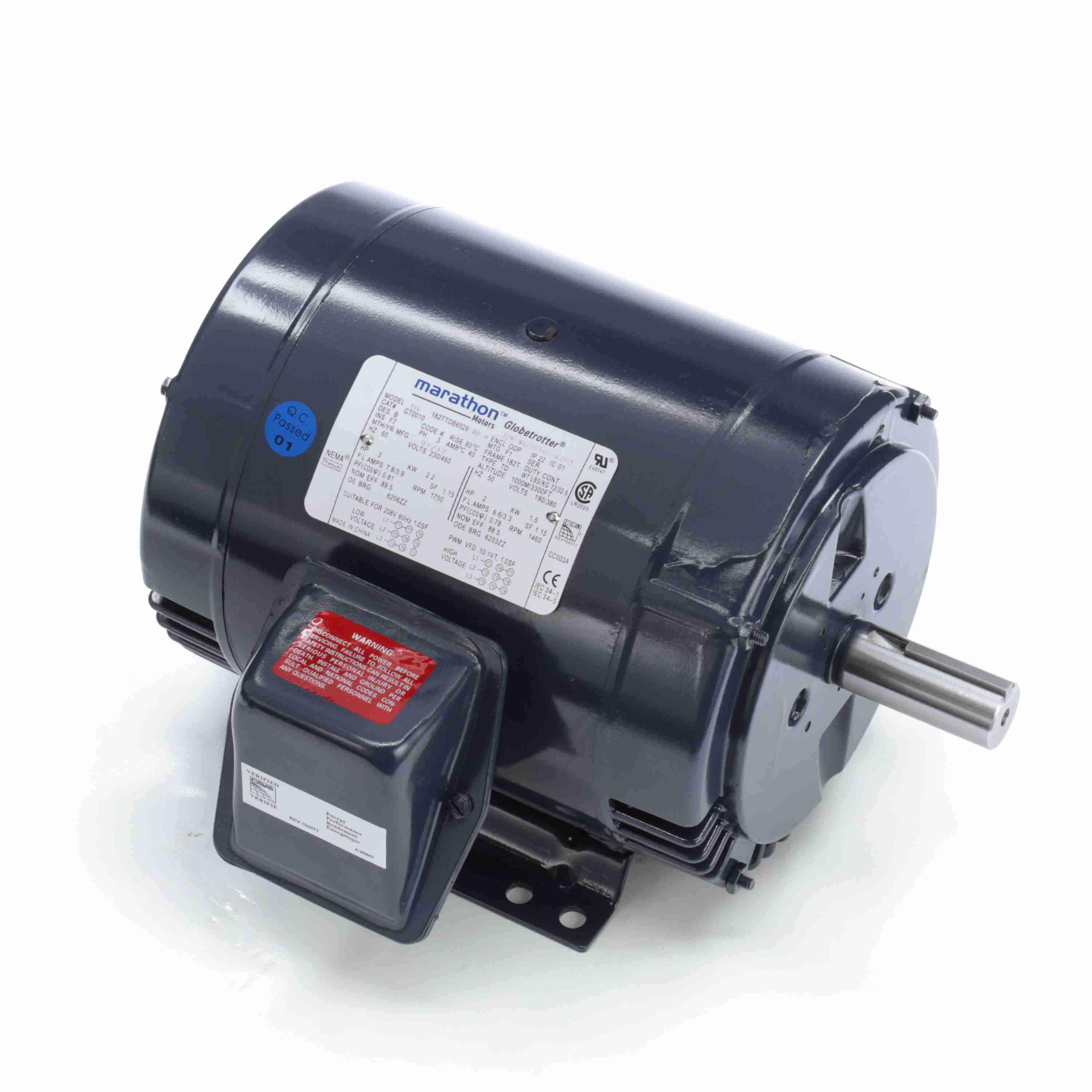

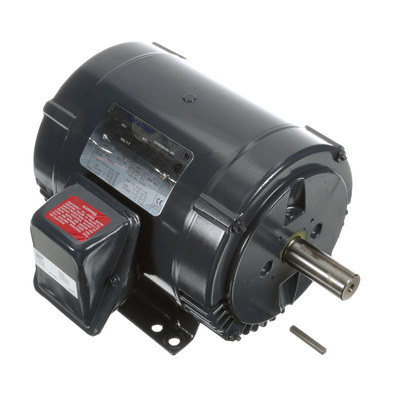

Motor 3-phase 1.5 Hp 1180 Rpm 208-230/460v | 44N956 | GT0005 | Worldwide Delivery | +44 203 287 5224 | [email protected]

Marathon Motors . 182TTDBD6076

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product Name	Marathon Motors
DimensionUnit	inch
GraingerSku	44N956
UnitOfMeasure	EA
Voltage	230/460V AC
Weight	71
WeightUnit	lbs
cali_prop65_orglabel, cali_prop65_whtlabel	False
countryOfOrigin	MX
extendedLead, moq, multiple, tierMinQty1, No of Speeds	1
height	14
jsonUrlData	924526ffbdad25e5923b
length	15.8
MPN	182TTDBD6076
qtyInStock, qtyInStockOverride	0
qtySource	qtyInStockOverride
SKU	G5707353
tierPrice1	651.99
url	https://www.zoro.com/marathon-motors-3-phase-general-purpose-motor-1-12-hp-182t-frame-230460v-ac-voltage-1-180-nameplate-rpm-182ttdbd6076/i/G5707353/
width	12.3
Item	General Purpose Motor
Motor Enclosure Design	Open Dripproof
Motor Mounting Type	Rigid Base
HP	1 1/2
RPM Range	1,101-1,200
Frame	182T
Motor Thermal Protection	None
Motor Service Factor	1.15
Voltage Compatibility	200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor Application	General Application
Motor Design	3-Phase
Nameplate RPM	1,180
Motor Shaft Rotation	CW/CCW
Motor Mounting Position	Horizontal
Motor Frame Material	Steel
Motor Shaft Design	Keyed
Standards	CE, CSA (LR2025), UL (E49747)
Includes	Conduit Box
Hz	60/50
Nominal Efficiency	86.5 %
Ins Class	F
Max Ambient Temp	40 Degrees C
RPM Group	1101-1200
Phase	Three
Length Less Shaft	9 1/2 in
Frame Material	Rolled steel
Manufacturers Warranty Length	1 yr
Shaft Length	2 3/4 in
Shaft Dia	1 1/8 in
Duty, Duty Cycle	Continuous
Motor Efficiency Group	NEMA Premium Efficient
Motor Bearings	Ball
CC Number	CC003A
Overall Length	12 1/4 in
Full Load Amps	4.6/2.3
Inverter Rated	Yes
Capacitor Required, Usable @ 200V, Usable @ 208V	No
Green Certification or Other Recognition	NEMA Premium(R) Rated
NEMA Design	A
Country of Origin (subject to change)	Mexico

Distributor offers

Seller	SKU	MOQ	In stock	Multiple	Prices
Zoro	G5707353	1		1	1 @ $651.99
Grainger	44N956	1		1
Raptor Supplies	AD4WFD	1		1	1 @ $1497.67
sustainablesupply.com	C1491815	1		1	1 @ $1204.94
motorsandcontrol.com	GT0005A	1		1	1 @ $0.00
Platt.com	2109230	1		1
Galco	182TTDBD6076-MARA	1		1	1 @ $560.86
simsupply.com	ZO-G5707353	1	2	1	1 @ $1195.27
