Grundfos 96416372 CR 32-2 A-G-A-V-HQQV 7.5HP 60 Pump End Only - MROSupply.com

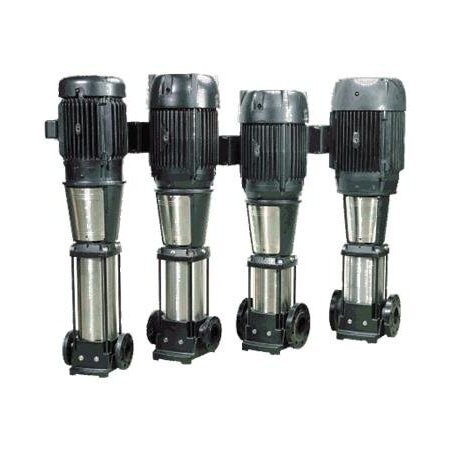

The 96416372 is produced by Grundfos and is described as a Grundfos 96416372 CR 32-2 A-G-A-V-HQQV 7.5HP 60 Pump End Only

Grundfos . 96416372

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Brand, Label, Man, Publisher, StudioGrundfos
CategoryL1Pumps
CategoryL2Centrifugal Pumps
CategoryL3Chemical Resistant
DimensionUnitmm
Extra Product NameGrundfos 96416372 CR 32-2 A-G-A-V-HQQV 7.5HP 60 Pump End Only - MROSupply.com
diameter, length, width118.4
length_Attrib, width_AttribActual impeller diameter
moq, multiple, tierMinQty1, Case, NumberOfItems, Number_of_items1
MPN, Part Number, Product no, Keyword, PartNumber, Part_number, Sku96416372
qtyInStock, Number of reduced-diameter impellers0
SKU5023762
snippetThe 96416372 is produced by Grundfos and is described as a Grundfos 96416372 CR 32-2 A-G-A-V-HQQV 7.5HP 60 Pump End Only
tierPrice13813.33
EAN, EANList, Identifier5700390669492
Product Group, ProductGroupBISS
Temperature range (F)-4 - 194
Density (lb/ftBi)62.29
Max pressure (psi)232
Pipe connection, Size of outlet connection, Size of inlet connection2 1/2 in
Stages, Impellers2
Flange size, Flange size for motor213TC
Rate flow (gpm)159
Density998.2 kg/m?
Power (P2) required by pump5.5 kW
Pump version, Material codeA
Pumped liquidWater
Product nameCR 32-2 A-G-A-V-HQQV
Pressure rating for connectionPN 16
Rated head40.5 m
Selected liquid temperature (?C)20
Temperature (?C)16 bar / -20
Max pressure at stated temp (?C)16 bar / 90
ApprovalsCE
Rated flow36 m?/h
Motor standardNEMA
Support bearingGraflon
BaseCast iron
Shaft seal arrangementSingle
Sales regionNamreg
Maximum operating pressure (bar)16
Low NPSHN
Flange rating inlet150 lb
Connect codeG
Curve tolerance2012 3B
Pump orientationVertical
ModelB
Pump speed on which pump data are based3467 RPM
Maximum head55.9 m
BearingSIC
Liquid temperature range (?C)-20 - 90
Type of connectionANSI
Code for shaft sealHQQV
ImpellerStainless steel
Code for rubberV
DOE pump energy index CL0.87
Actual impeller diameter118.4 mm
ASIN, AsinB00LBHR3EM
AdultProduct, Autographed, Memorabilia, TradeInEligibleFalse
Bullet_pointBrand: Grundfos Category: HVAC Free Shipping on this item! Product Number: 96416372 UGA KUBV 7.5HP 60PEO 96416372
CatIndustrial & Scientific
CatId16310091
CatTree16310091 16310161 256346011
ClassificationId720590011
DisplayNameHVAC Equipment
FeatureBrand: Grundfos
Height192 29
IdentifierTypeEAN
ItemClassificationBASE_PRODUCT
ItemName, Item_name, TitleGrundfos 96416372
Item_type_keywordindustrial-hvac-components
Linkhttps://m.media-amazon.com/images/I/31fXl73p9BL._SL75_.jpg https://m.media-amazon.com/images/I/31fXl73p9BL.jpg
ProductType, ProductTypeNameMECHANICAL_COMPONENTS
Product_descriptionGrundfos 96416372. UGA KUBV 7.5HP 60PEO 96416372
Product_site_launch_date2014-06-26T21:22:12.932Z
Typeean
URLhttp://ecx.images-amazon.com/images/I/31fXl73p9BL._SL75_.jpg https://m.media-amazon.com/images/I/31fXl73p9BL._SL75_.jpg
Unitspixels pounds
VariantMAIN
WebsiteDisplayGroupbiss_basic_display_on_website
WebsiteDisplayGroupNameBISS Basic
Weight0.000625
Width500 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MRO Supply5023762111 @ $3813.33
PlumbersStock424732111 @ $3520.00
AmazonTPB00LBHR3EM111 @ $3640.68
pumpproducts.com964163721(Ships Direct From Manufacturer)11 @ $4350.40
Edge Supply964163721-211 @ $3710.00
ZoroG005889782111 @ $5071.00
