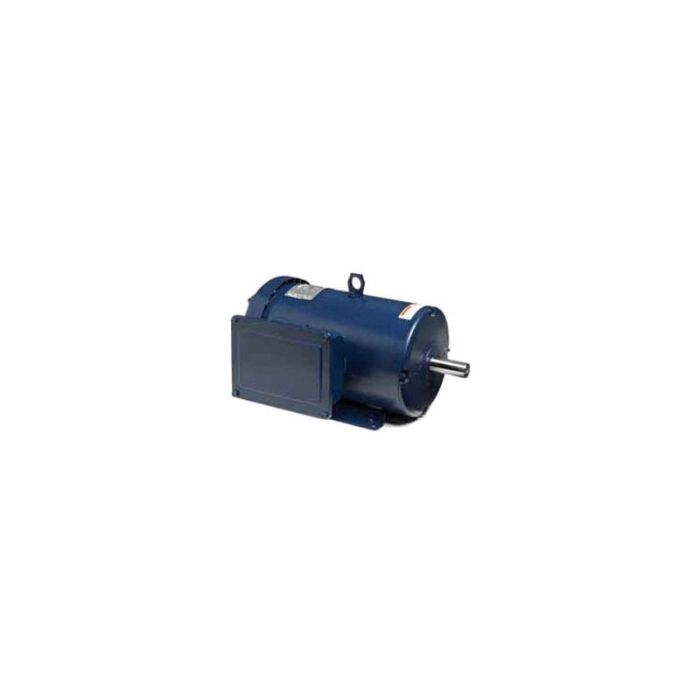

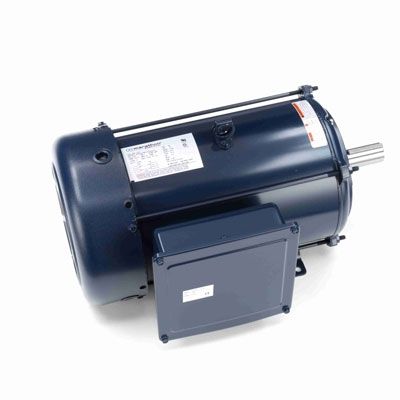

Capacitor-Start/Run General Purpose Motor, 10 HP, 208-230V AC Voltage, 215T Frame

Motor 10 Hp 3500 Rpm 208-230v | 44D155 | I225 | Worldwide Delivery | +44 203 287 5224 | [email protected]

Marathon Motors . 215TBFW7001

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMarathon Motors
DimensionUnitinch
Extra Product NameCapacitor-Start/Run General Purpose Motor, 10 HP, 208-230V AC Voltage, 215T Frame
UnitOfMeasureEA
Voltage208-230V AC
Weight141
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginMX
extendedLead25
extendedQty-2
extraShipping200.00
height14
jsonUrlData924526ffbdad25e5923b
length22.5
moq, multiple, tierMinQty1, Motor Service Factor, No of Speeds1
MPN215TBFW7001
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG5700746
tierPrice11303.69
urlhttps://www.zoro.com/marathon-motors-capacitor-startrun-general-purpose-motor-10-hp-208-230v-ac-voltage-215t-frame-215tbfw7001/i/G5700746/
width16.81
ItemGeneral Purpose Motor
Motor Enclosure DesignTotally Enclosed Fan-Cooled
Motor Mounting TypeRigid Base
HP10
RPM Range3,001-3,600
Frame215T
Motor Thermal ProtectionNone
Voltage Compatibility115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Motor ApplicationGeneral Application
Nameplate RPM3,500
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor DesignCapacitor-Start/Run
StandardsCE, CSA, UL Recognized
Overall Length20 1/4 in
Hz60
Motor BearingsBall
Full Load Amps44.0-41.5
Shaft Dia1 3/8 in
RPM Group3001-3600
Duty, Duty CycleContinuous
Manufacturers Warranty Length1 yr
Nominal Efficiency91.7 %
Max Ambient Temp40 Degrees C
Shaft Length3 15/32 in
Inverter Rated, Usable @ 200VNo
Length Less Shaft16 3/4 in
Frame MaterialRolled steel
PhaseSingle
Ins ClassF
Usable @ 208VYes
NEMA DesignL
Country of Origin (subject to change)Mexico

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG5700746111 @ $1303.69
Grainger44D15511
Raptor SuppliesAD4UUG111 @ $2771.55
Dealers Electric215TBFW70011511 @ $2131.72
sustainablesupply.comC27920021Add to Cart11 @ $1751.11
motorsandcontrol.comI225111 @ $0.00
pumpproducts.com215TBFW70011-211 @ $2878.37
mecampbell.com215TBFW70011Est Lead Time: 12 Bus Days11 @ $1842.68
Galco215TBFW7001-MARA111 @ $1898.50
