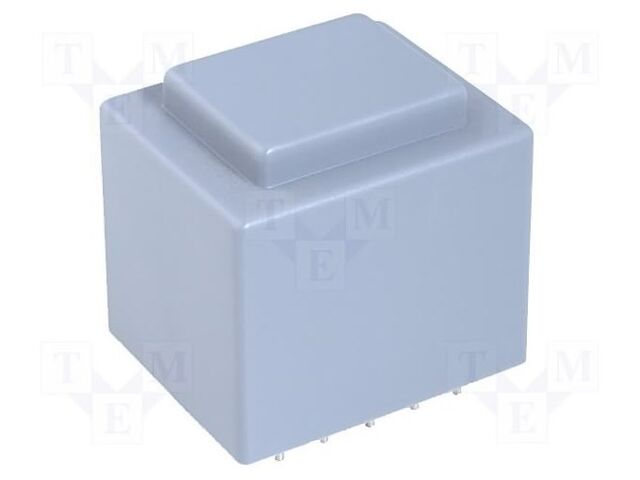

INDEL TSZZ3/010MP | Transformer: encapsulated; 3VA; 230VAC; 15V; 15V; 100mA; 100mA; PCB
INDEL TSZZ3/010MP | Transformer: encapsulated; 3VA; 230VAC; 15V; 15V; 100mA; 100mA; PC
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | INDEL |
|---|---|
| CategoryL1 | Transformers and Ferrite Cores |
| CategoryL2 | PCB transformers |
| Extra Product Name | INDEL TSZZ3/010MP | Transformer: encapsulated; 3VA; 230VAC; 15V; 15V; 100mA; 100mA; PCB |
| atoms, moq, multiple | 1 |
| jsonUrlData | 04ec3edfa9e7612ae78a64dca39b9496. |
| jsonUrlData2 | b90f17f0e719c519aefb |
| keywords | INDEL, TSZZ3/010MP, TSZZ2.8/2X15V |
| MPN | TSZZ3/010MP |
| qtyInStock | 0 |
| SKU | TSZZ2.8/2X15V |
| snippet | INDEL TSZZ3/010MP | Transformer: encapsulated; 3VA; 230VAC; 15V; 15V; 100mA; 100mA; PC |
| Type of transformer | encapsulated |
| Power | 3VA |
| Primary voltage | 230V AC |
| Secondary voltage 1, Secondary voltage 2 | 15V |
| Secondary winding current 1, Secondary winding current 2 | 0.1A |
| Mounting | PCB |
| IP rating | IP00 |
| Conform to the norm | PN EN 61558 |
| Thermal class | Ta40B |
| Secondary winding terminals | 6-7, 9-10 |
| Primary winding terminals | 1-5 |
| Insulation class | II |
| A dimension | 32.3mm |
| A1 dimension | 23.6mm |
| B dimension | 27.3mm |
| B1 dimension | 20.2mm |
| C dimension | 29mm |
| C1 dimension | 25.4mm |
| M dimension | 22mm |
| P dimension | 5.05mm |
| Electrical insulation strength | 4kV/60s |
