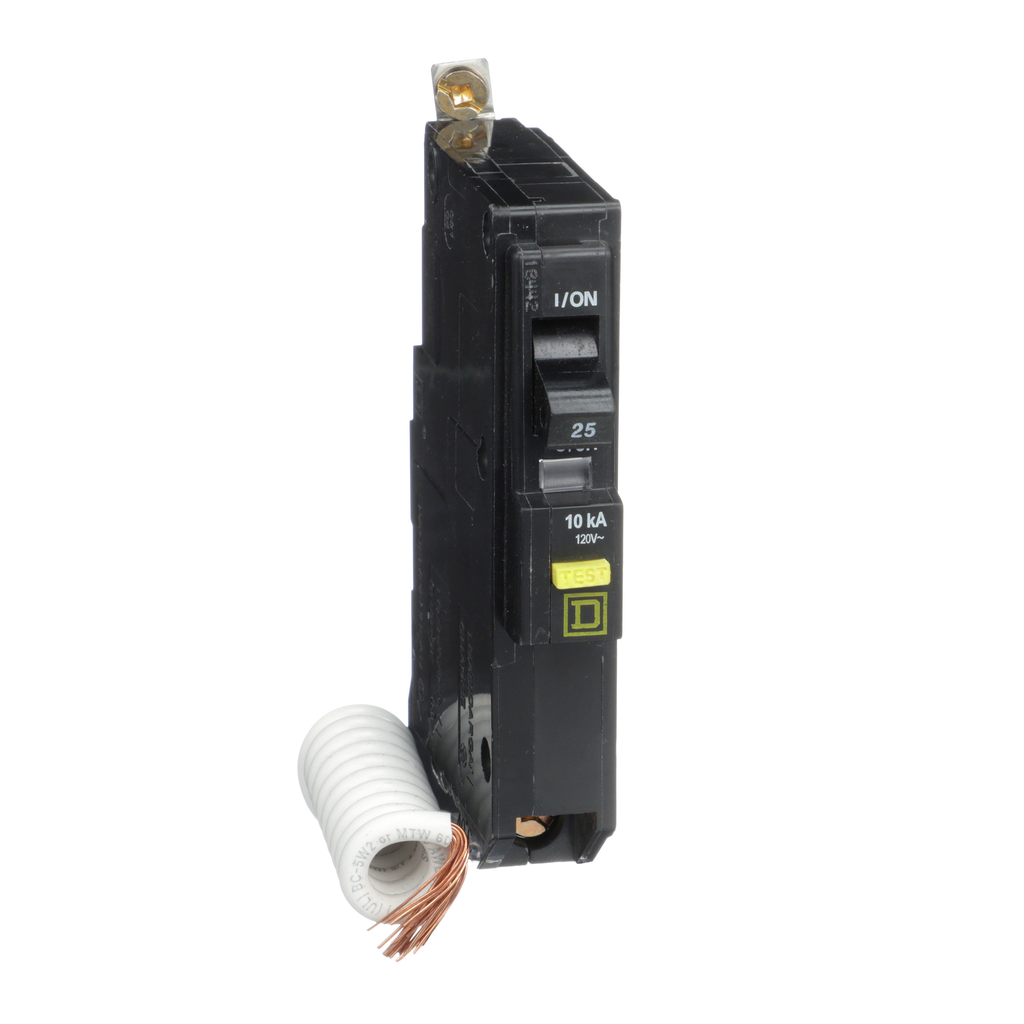

Mini circuit breaker, QO, 25A, 1 pole, 120VAC, 10kA, 6mA grd fault A, pigtail, bolt on mount | Mayer Electric

Mayer Electric Supply . QOB125GFI

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameMini circuit breaker, QO, 25A, 1 pole, 120VAC, 10kA, 6mA grd fault A, pigtail, bolt on mount | Mayer Electric
UPC785901368724
Weight0.254
WeightUnitkg
Weight_AttribNet Weight
depth, length74.0
height105.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Mini-circuit-breaker-QO-25A-1-pole-120-VAC-10-kA-6mA-grd-fault-A-pigtail-bolt-on-mount-785901368724
jsonUrlData2a360cc63-1949-4ac8-be78-abd20062df31
length_AttribDepth
moq, multiple, tierMinQty1, Number Of Spaces Required1
MPNQOB125GFI
qtyInStock0
SKUSQDQOB125GFI
tierPrice1237.39
width19.0
width_AttribWidth
Circuit Breaker Applicationnot rated
Circuit Breaker Typeground fault protecting class A 6 mA
Mounting Modebolt-on
Range Of ProductQO
Poles Description1P
Electrical Connectionpressure plate
Line Rated Current25 A
Product Or Component Typeminiature circuit-breaker
[Ue] Rated Operational Voltage120 V AC
Warranty18 months
Height105 mm
Breaking Capacity10 kA 120 V AC 50/60 Hz || 10 kA
Tightening Torque4.6-4.6 N.m 2.5-10 mm? (AWG 16...AWG 14) || 4.6-4.6 N.m 4-20 mm? (AWG 12...AWG 4)
Awg GaugeAWG 14...AWG 8 copper || AWG 12...AWG 8 aluminium
Width19 mm
Depth74 mm
Net Weight0.254 kg
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Circularity ProfileENVEOLI1406033
Rohs Exemption Information, Mercury FreeYes
Environmental DisclosureENVPEP1406033
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNINGCancer and Reproductive Harm - www.P65Warnings.ca.gov
Product CertificationsUL Listed || CSA
Ambient Air Temperature For Operation40 ?C

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDQOB125GFI111 @ $237.39
