| Brand name, Manufacturer name, Manufacturer | Uniview |
|---|
| Condition | NEWCONDITION |
|---|
| DimensionUnit | m |
|---|

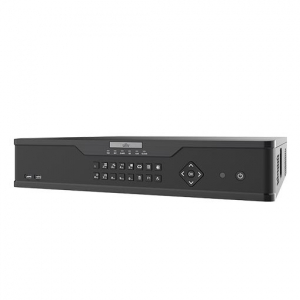

| Extra Product Name | Buy Uniview NVR304-32X, 4 SATA Series 32-Chanel Network Video Recorder - Prime Buy |
|---|
| Weight | 5.7 |
|---|
| WeightUnit | lbs |
|---|
| Weight_Attrib | Weight (without HDD) |
|---|
| moq, multiple, tierMinQty1, RS232, RS485 | 1 |
|---|
| MPN, SKU | NVR304-32X |
|---|
| qtyInStock | 2 Weeks Factory Lead Time |
|---|
| tierPrice1 | 2009.00 |
|---|
| width | 384.0 |
|---|
| width_Attrib | Incoming Bandwidth |
|---|
| IP Video Input | 32-ch |
|---|
| Two-Way Audio Input, Audio Output | 1-ch, RCA |
|---|
| Incoming Bandwidth, Outgoing Bandwidth | 384Mbps |
|---|
| Remote Users | 128 |
|---|
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS |
|---|
| Recording Resolution, Live View/Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|---|
| Audio Compression | G.711A, G.711U |
|---|
| Synchronous Playback, Smart Intrusion Prevention (SIP) by Camera, Alarm In | 16-ch |
|---|
| Liveview Display | 1/4/6/8/9/16/25/36 |
|---|
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
|---|
| FTP/Schedule/Event Snapshot | 32-ch snapshot, up to 4K resolution |
|---|
| Decoding Format | Ultra 265, H.265, H.264 |
|---|
| Capability | 2 x 12MP at 30, 4 x 4K at 30, 8 x 4MP at 30, 9 x 4MP at 25, 16 x 1080p at 30, 32 x 960p at 25 |
|---|
| SATA | 4 SATA interfaces |
|---|
| Capacity | up to 10TB for each HDD |
|---|
| eSATA | 1 eSATA interface |
|---|
| Disk Group | Support |
|---|
| Array Type | RAID 1, 5 |
|---|
| VCA Detection by Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Auto Tracking, Object Left Behind, Object Removed, Vehicle Control |
|---|
| VCA Search | Behavior Search, Vehicle Search |
|---|
| People Counting | People Flow Counting, Crowd Density Monitoring |
|---|
| General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Alarm input, Audio Detection |
|---|
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
|---|
| Network Interface | 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces |
|---|
| Alarm Out | 4-ch |
|---|
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) |
|---|
| Dimensions (WxDxH) | 442mm x426mmx 89mm (17.4" x 16.8" x 3.5") |
|---|
| Weight (without HDD) | ≤ 5.7Kg (12.57lb) |
|---|
| Certification | CE, FCC, UL, RoHS, WEEE |
|---|
| CE | EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 |
|---|
| FCC | Part15 Subpart B, ANSI C63.4 |
|---|
