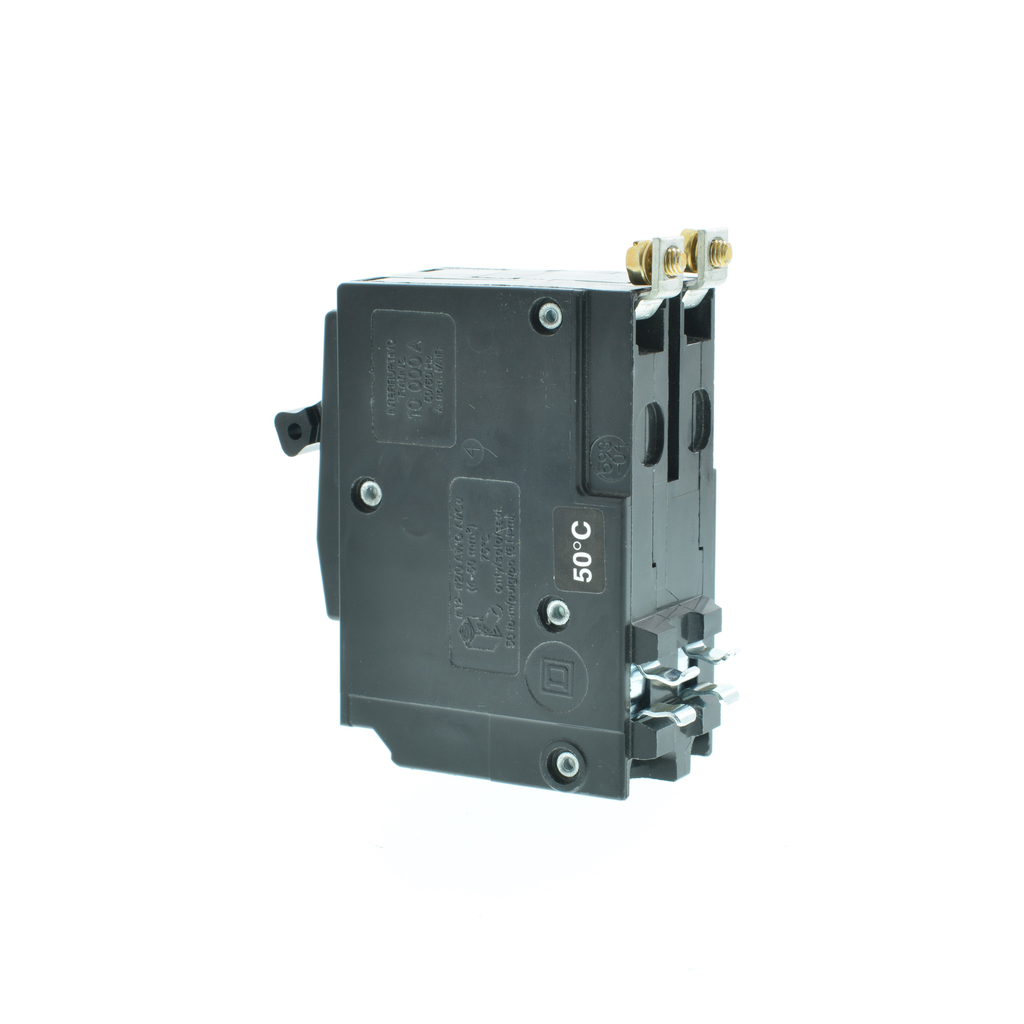

Mini circuit breaker, QO, 100A, 2 pole, 120/240VAC, 10kA, bolt on mount, 50 degrees C | Mayer Electric

SQUARE D . SQDQOB210035

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NameMini circuit breaker, QO, 100A, 2 pole, 120/240VAC, 10kA, bolt on mount, 50 degrees C | Mayer Electric
UPC3606486144541
Weight0.331
WeightUnitkg
Weight_AttribNet Weight
depth, length74.0
height89.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Mini-circuit-breaker-QO-100A-2-pole-120-240VAC-10kA-bolt-on-mount-50-degrees-C-SQDQOB210035
jsonUrlData257e4d5dc-eb8b-41c1-a185-aeea005769ce
length_AttribDepth
moq, multiple, tierMinQty11
MPN, SKUSQDQOB210035
qtyInStock0
tierPrice1254.17
width38.0
width_AttribWidth
Circuit Breaker ApplicationHACR rated
Circuit Breaker Typestandard
Mounting Modebolt-on
Range Of ProductQO
Poles Description2P
Electrical Connectionbox lugs
Line Rated Current100 A
Product Or Component Typeminiature circuit-breaker
[Ue] Rated Operational Voltage120/240 V AC || 120 V AC
Warranty18 months
Height89 mm
Breaking Capacity10 kA 120/240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
Tightening Torque4.6-4.6 N.m
Number Of Spaces Required2
Awg GaugeAWG 4...AWG 2/0 copper or aluminium
Width38 mm
Depth74 mm
Net Weight0.331 kg
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information, Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingCadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Halogen Content PerformanceHalogen free product
Product CertificationsUL Listed || CSA
Ambient Air Temperature For Operation50 ?C

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDQOB210035111 @ $254.17
