Where can I buy 96418606?

96418606 is available from MRO Supply, PlumbersStock, pumpproducts.com, Edge Supply, Zoro. See pricing comparison above.

What is the price of 96418606?

Pricing ranges from $9328.00 to $13290.00 depending on quantity and distributor.

Is 96418606 in stock?

Yes, 96418606 is currently in stock at multiple distributors with immediate availability.

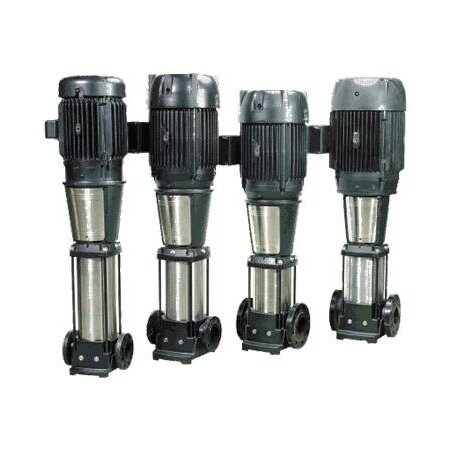

Grundfos 96418606 CR 32-7-2 A-G-A-V-HQQV 25HP 60 Pump End Only

Name: Grundfos 96418606 CR 32-7-2 A-G-A-V-HQQV 25HP 60 Pump End Only - MROSupply.com
Brand: Grundfos
Price: 10105.33 USD
Availability: OutOfStock

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Brand	Grundfos
CategoryL1	Pumps
CategoryL2	Centrifugal Pumps
CategoryL3	Chemical Resistant
DimensionUnit	mm
Extra Product Name	Grundfos 96418606 CR 32-7-2 A-G-A-V-HQQV 25HP 60 Pump End Only - MROSupply.com
diameter, length, width	118.4
length_Attrib, width_Attrib	Actual impeller diameter
moq, multiple, tierMinQty1	1
MPN, Product no, Keyword, PartNumber, Part_number	96418606
qtyInStock	0
SKU	5023902
snippet	The 96418606 is produced by Grundfos and is described as a Grundfos 96418606 CR 32-7-2 A-G-A-V-HQQV 25HP 60 Pump End Only
tierPrice1	10105.33
Temperature range (F)	-4 - 194
Density (lb/ftBi)	62.29
Max pressure (psi)	435
Pipe connection, Size of outlet connection, Size of inlet connection	2 1/2 in
Stages, Impellers	7
Flange size, Flange size for motor	284TC
Rate flow (gpm)	159
Density	998.2 kg/m?
Power (P2) required by pump	18.5 kW
Pump version, Material code	A
Pumped liquid	Water
Product name	CR 32-7-2 A-G-A-V-HQQV
Pressure rating for connection	PN 40
Rated head	144.8 m
Selected liquid temperature (?C)	20
Temperature (?C)	30 bar / -20
Max pressure at stated temp (?C)	30 bar / 90
Approvals	CE
Rated flow	36 m?/h
Motor standard	NEMA
Support bearing	Graflon
Base	Cast iron
Shaft seal arrangement	Single
Sales region	Namreg
Maximum operating pressure (bar)	30
Low NPSH	N
Flange rating inlet	300 lb
Connect code	G
Curve tolerance	2012 3B
Pump orientation	Vertical
Number of reduced-diameter impellers	2
Model	B
Pump speed on which pump data are based	3521 RPM
Maximum head	185.8 m
Bearing	SIC
Liquid temperature range (?C)	-20 - 90
Type of connection	ANSI
Code for shaft seal	HQQV
Impeller	Stainless steel
Code for rubber	V
DOE pump energy index CL	0.87
Actual impeller diameter	118.4 mm
ASIN, Asin	B00LBHZM0Y
AdultProduct, Autographed, Memorabilia, TradeInEligible	False
ClassificationId	554568
DisplayName	Power Water Pumps
Height, Width	75
Identifier	5700390727666
IdentifierType	EAN
ItemClassification	BASE_PRODUCT
ItemName, Item_name, Product_description, Title	grundfos 96418606
Item_type_keyword	portable-power-water-pumps
ProductGroup, WebsiteDisplayGroupName	Home Improvement
ProductType, ProductTypeName	PLUMBING_FIXTURE
Product_site_launch_date	2014-06-26T21:30:22.845Z
Type	ean
URL	https://images-na.ssl-images-amazon.com/images/I/01RmK+J4pJL._SL75_.gif
Units	pixels
WebsiteDisplayGroup	home_improvement_display_on_website

Distributor offers

Seller	SKU	MOQ	In stock	Multiple	Prices
MRO Supply	5023902	1		1	1 @ $10105.33
PlumbersStock	424763	1		1	1 @ $9328.00
pumpproducts.com	96418606	1	(Ships Direct From Manufacturer)	1	1 @ $11529.60
Edge Supply	96418606	1	-2	1	1 @ $9830.00
Zoro	G905889752	1		1	1 @ $13290.00
