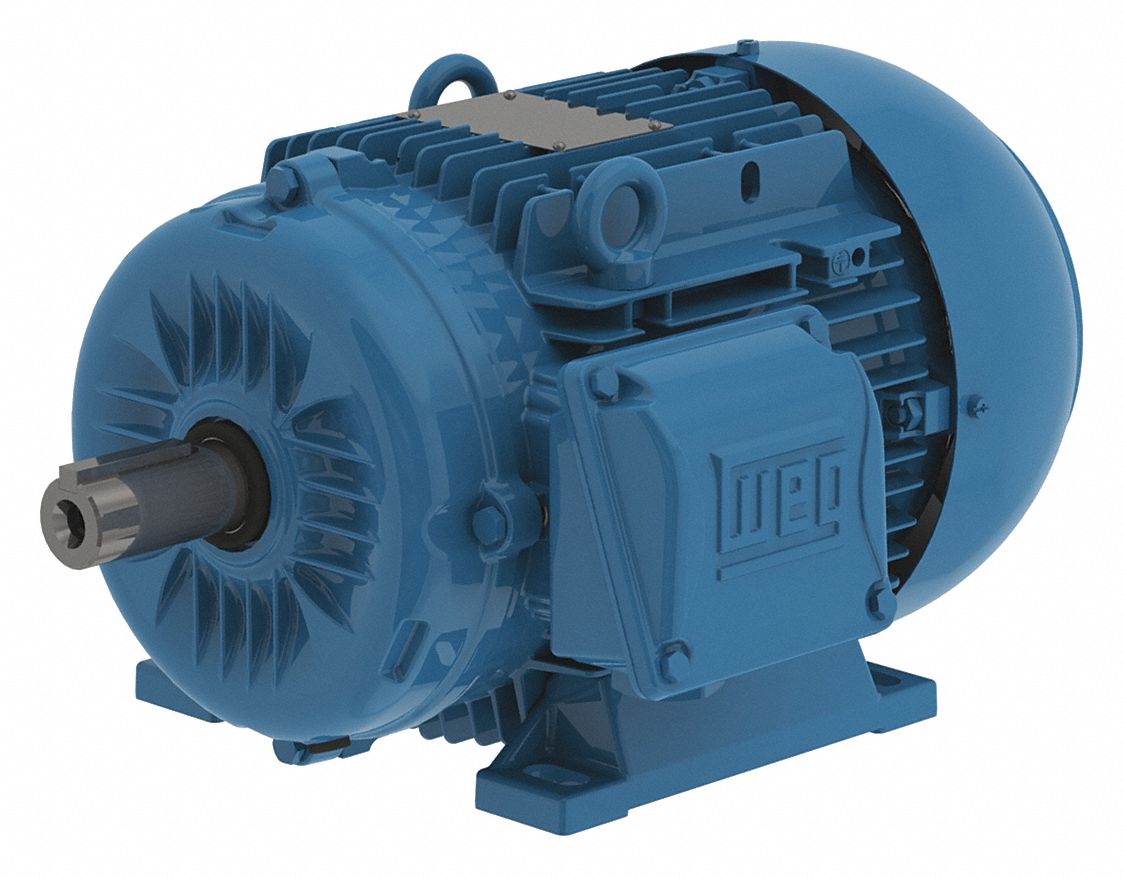

WEG, Totally Enclosed Fan-Cooled, Rigid Base Mount, Metric Motor - 482V90|13984841 - Grainger

WEG . 13984841

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerWEG
CategoryL1Motors
CategoryL2AC Motors
CategoryL3General Purpose AC Motors
DimensionUnitmm
HazmatFalse
Extra Product NameWEG, Totally Enclosed Fan-Cooled, Rigid Base Mount, Metric Motor - 482V90|13984841 - Grainger
Weight148
WeightUnitlbs
Weight_AttribWeight
diameter, length, width38.0
length_Attrib, width_AttribShaft Dia.
moq, multiple, tierMinQty1, No of Speeds1
MPN, Mfr Model?13984841
qtyInStock0
SKU, Item?482V90
tierPrice11262.73
Motor ApplicationGeneral Application
PhaseThree
Motor Design3-Phase
HP, HP @ 50Hz10
Nameplate RPM1,770
Voltage460V AC
Full Load Amps12.4
Frame132M
Usable @ 208V, Usable @ 200VNo
Hz60
Motor Service Factor1.25
Max Ambient Temp40 ?C
Motor Thermal ProtectionNone
Duty CycleContinuous
Ins ClassF
NEMA DesignN
Motor Enclosure DesignTotally Enclosed Fan-Cooled
Motor Shaft RotationCW/CCW
Motor Mounting TypeRigid Base
Motor Frame MaterialAluminum
Shaft Dia38 mm
Shaft Length80 mm
Motor BearingsBall
Length Less Shaft410 mm
Overall Length490 mm
IncludesEye Bolt
Nominal Efficiency91.7 %
CC NumberCC029A
StandardsIEC34; IEC79
Manufacturers Warranty Length3 yr
Full Load Amps @ 50Hz13.7; 14.1; 14.4
UNSPSC26101612
Country of OriginBrazil

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Grainger482V90111 @ $1262.73
ZoroG6569573111 @ $932.77
