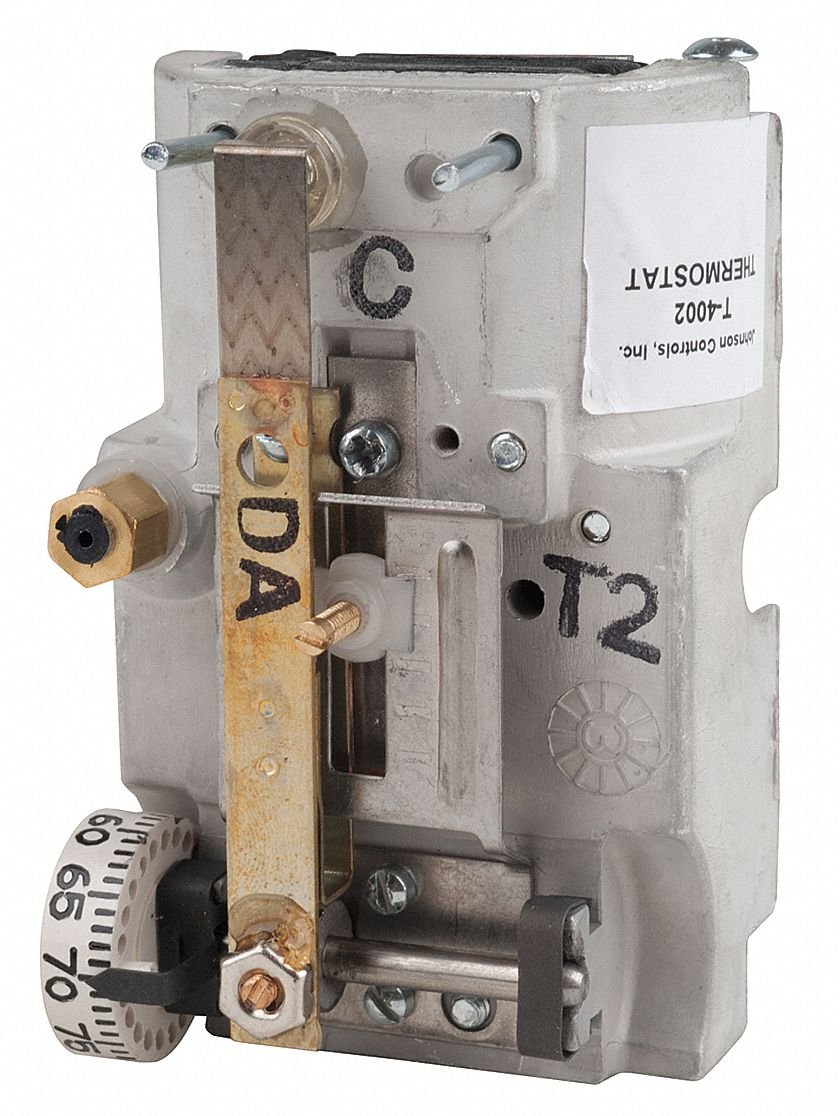

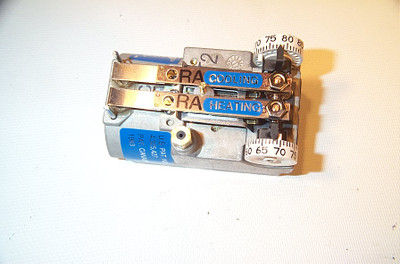

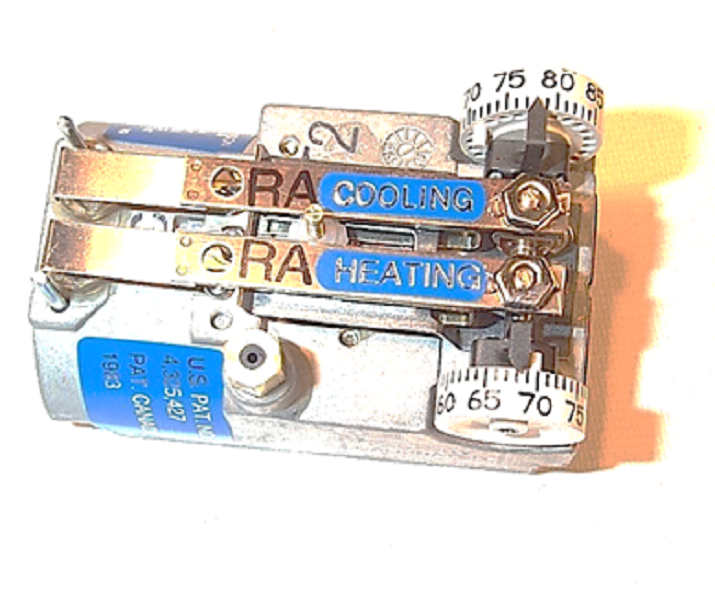

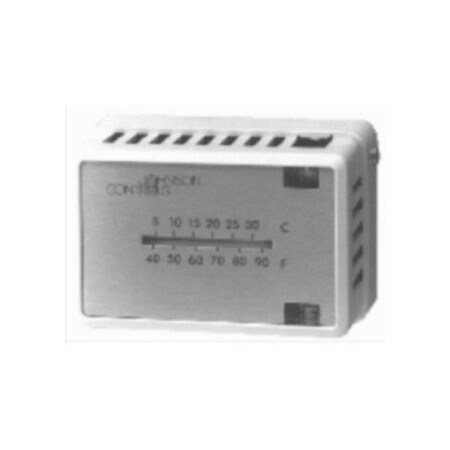

Pneumatic Thermostat, Dual Temperature, Heating and Cooling, 2 Pipe
Pneumatic Thermostat, Reverse Acting, 2 Pipe, Heating and Cooling, Dual Temperature, Control Air Pressure 3 to 15 psi, Air Connections 5/32 in Barb, Deadband 8 psig, Element Type Bi-Metal, Max. Air Pressure 25 psi, Max. Ambient Temp. 135 Degrees F, Mounting Style Horizontal, Height 2 3/32 in, Width 3 1/8 in, Depth 1 3/4 in, Temp. Control Range 55 Degrees to 85 Degrees F, Air Consumption 38 scim, Throttling Range 1 to 5 psi
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | Johnson Controls |
|---|---|
| CategoryId, CategoryIdL4 | 4761 |
| CategoryIdL1 | 30 |
| CategoryIdL2 | 4586 |
| CategoryIdL3 | 18089 |
| CategoryL1 | Heating & Cooling |
| CategoryL2 | HVACR and Appliance Controls |
| CategoryL3 | Controls |
| CategoryL4 | Pneumatic Controls |
| DimensionUnit | inch |
| GraingerSku | 20RG06 |
| Extra Product Name | Pneumatic Thermostat, Dual Temperature, Heating and Cooling, 2 Pipe |
| UPC | None |
| UnitOfMeasure | EA |
| Weight | 0.45 |
| WeightUnit | lbs |
| cali_prop65_orglabel, cali_prop65_whtlabel | False |
| countryOfOrigin | MX |
| height | 2.9 |
| jsonUrlData | 924526ffbdad25e5923b |
| length | 4.2 |
| moq, multiple, tierMinQty1 | 1 |
| MPN | T-4054-2 |
| qtyInStock, qtyInStockOverride | 0 |
| qtySource | qtyInStockOverride |
| SKU | G6071231 |
| tierPrice1 | 54.99 |
| url | https://www.zoro.com/johnson-controls-pneumatic-thermostat-dual-temperature-heating-and-cooling-2-pipe-t-4054-2/i/G6071231/ |
| width | 3.7 |
| Height | 2 3/32 in |
| Width, Overall Width | 3 1/8 in |
| Depth, Overall Depth | 1 3/4 in |
| Overall Height | 2 1/8 in |
| Air Connection Outside Diameter | 1/8 in |
| Item | Pneumatic Thermostat |
| Action Type - Pneumatic Thermostats, Reverse Acting / Direct Acting | Reverse Acting |
| No of Pipes, 1 Pipe / 2 Pipe | 2 Pipe |
| Thermostat Application | Heating and Cooling |
| Temperature Output Settings, Single Temp / Dual Temp | Dual Temperature |
| Control Air Pressure | 3 to 15 psi |
| Air Connections | 5/32 in Barb |
| Temp Control Range | 55 Degrees to 85 Degrees F |
| Deadband | 0 Degrees to 30 Degrees F |
| Mounting Style | Horizontal |
| Max Ambient Temp | 135 Degrees F |
| Max Air Pressure | 25 psi |
| Air Consumption | 38 scim |
| Includes | Bracket and Cover |
