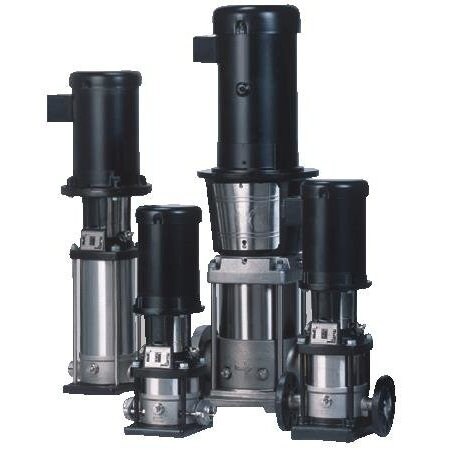

Grundfos 96418679 CRN 32-8-2 A-G-G-E-HQQE 30HP 60 Pump End Only - MROSupply.com

Name: Grundfos 96418679 CRN 32-8-2 A-G-G-E-HQQE 30HP 60 Pump End Only - MROSupply.com
Brand: Grundfos
Price: 15140.67 USD
Availability: OutOfStock

The 96418679 is produced by Grundfos and is described as a Grundfos 96418679 CRN 32-8-2 A-G-G-E-HQQE 30HP 60 Pump End Only

Grundfos . 96418679

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer	Grundfos
CategoryL1	Pumps
CategoryL2	Centrifugal Pumps
CategoryL3	Chemical Resistant
DimensionUnit	mm
Extra Product Name	Grundfos 96418679 CRN 32-8-2 A-G-G-E-HQQE 30HP 60 Pump End Only - MROSupply.com
diameter, length, width	118.4
length_Attrib, width_Attrib	Actual impeller diameter
moq, multiple, tierMinQty1	1
MPN, Product no	96418679
qtyInStock	0
SKU	5026067
snippet	The 96418679 is produced by Grundfos and is described as a Grundfos 96418679 CRN 32-8-2 A-G-G-E-HQQE 30HP 60 Pump End Only
tierPrice1	15140.67
Temperature range (F)	-40 - 248
Density (lb/ftBi)	62.29
Max pressure (psi)	435
Pipe connection, Size of outlet connection, Size of inlet connection	2 1/2 in
Stages, Impellers	8
Flange size, Flange size for motor	284TC
Rate flow (gpm)	159
Density	998.2 kg/m?
Power (P2) required by pump	22 kW
Pump version, Material code	A
Pumped liquid	Water
Product name	CRN 32-8-2 A-G-A-E-HQQE
Pressure rating for connection	PN 40
Rated head	170 m
Approvals for drinking water	NSF/ANSI 61
Selected liquid temperature (?C)	20
Temperature (?C)	30 bar / -40
Max pressure at stated temp (?C)	30 bar / 120
Approvals	CE
Rated flow	36 m?/h
Motor standard	NEMA
Support bearing	Graflon
Base, Impeller	Stainless steel
Shaft seal arrangement	Single
Sales region	Namreg
Maximum operating pressure (bar)	30
Low NPSH	N
Flange rating inlet	300 lb
Connect code	G
Curve tolerance	2012 3B
Pump orientation	Vertical
Number of reduced-diameter impellers	2
Model	B
Pump speed on which pump data are based	3541 RPM
Maximum head	215 m
Bearing	SIC
Liquid temperature range (?C)	-40 - 120
Type of connection	ANSI
Code for shaft seal	HQQE
Code for rubber	E
DOE pump energy index CL	0.87
Actual impeller diameter	118.4 mm

Distributor offers

Seller	SKU	MOQ	In stock	Multiple	Prices
MRO Supply	5026067	1		1	1 @ $15140.67
pumpproducts.com	96418679	1	(Usually Ships 7-10 Days)	1	1 @ $16771.21
Edge Supply	96418679	1	-2	1	1 @ $14729.00
Zoro	G405889962	1		1	1 @ $19778.00
