SunSource | 222AK00140B DANFOSS Industrial Hydraulics | SunSource.com

222AK00140B DANFOSS | Search our online catalog of Industrial Hydraulics. Start your quote online to connect with our team of technical experts for support.

DANFOSS . 222AK00140B

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDANFOSS
Extra Product NameSunSource | 222AK00140B DANFOSS Industrial Hydraulics | SunSource.com
jsonUrlData584064a8-58ae-4c52-b4e6-ae28000981df
keywords220SERIESMOBILEPISTON 222AK00140B
moq, multiple, tierMinQty11
MPN, SKU222AK00140B
qtyInStock, tierPrice10
snippet222AK00140B DANFOSS | Search our online catalog of Industrial Hydraulics. Start your quote online to connect with our team of technical experts for support.
ApplicationConstruction, Agriculture, Truck and Bus, Material Handling, Other Mobile
Auxiliary mounting, Control special features, Pump special features, Sub brandNone
Bearing life at rated pressure5850 hr

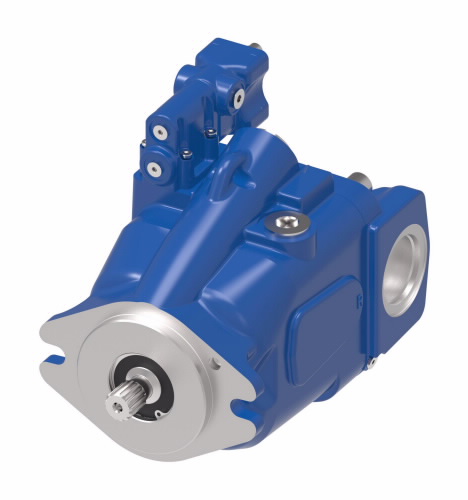

Code title220 Series Mobile Piston Pump
Continuous allowable case pressure19 psi
Controller typePressure Compensator
Design code11Second
Displacement28 cubic centimetre per revolution
EccnEAR99
Fluid cleanliness21/18/13
Front mounting2 Bolt B
Housing materialCast Iron
Icc2Mobile - OC Piston Pumps
IdentificationMark Eaton Product Number and Full Model Code On Label
Inlet pressure64 psi
Input shaftStraight Shaft Diameter 25.4 [1.00], Keyway with .375-24 UNF-2B Thread
Input speed at 0 8 bar absolute2700 revolutions per minute
Input speed at 1 0 bar absolute3000 revolutions per minute
Input speed maximum3600 revolutions per minute
Input speed minimum500 revolutions per minute
Maximum case pressure45 psi
Maximum displacement optionStandard Displacement
Maximum flow compensator setting, Minimum flow compensator setting0 bar
Maximum input power39.2 kilowatt
Maximum input torque1106 inch pound (pound inch)
Maximum pressure compensator setting213.7 bar
Maximum recommended operating viscosity40 centistokes
Minimum pressure compensator setting206.8 bar
Minimum recommended operating viscosity16 centistokes
Model CodeAEC028R31ABA1AC280000000100100CD01B
Nominal pressure rating4060 psi
PaintBlue Primer
Peak pressure rating5000 psi
Product height9.02
Product height uom, Product length uom, Product width uominch
Product length9.68
Product trade nameX20
Product weight35.9
Product weight uompound
Product width6.85
Shaft rotationRight
Shaft sealsViton
Torque control setting0 inch pound (pound inch)

Distributor offers

SellerSKUMOQIn stockMultiplePrices
sun-source.com222AK00140B111 @ $0.00
