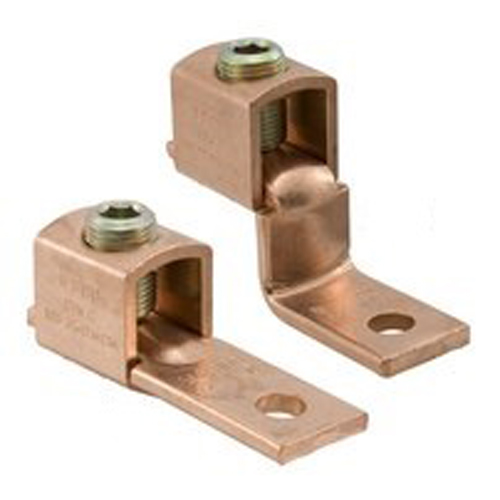

Copper Mechanical Lug Offset, Conductor Range 6-14, 1 Port, 1 Hole, #10in Bolt Size, UL, CSA | Mayer Electric

Shop ILSCO at Mayer. Copper Mechanical Lug Offset, Conductor Range 6-14, 1 Port, 1 Hole, #10in Bolt Size, UL, CSA

Mayer Electric Supply . SLU-35

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitinch
Extra Product NameCopper Mechanical Lug Offset, Conductor Range 6-14, 1 Port, 1 Hole, #10in Bolt Size, UL, CSA | Mayer Electric
UPC783669829464
Weight0.025
WeightUnitlbs
Weight_AttribWeight
color, Material, Conductor Material, ColorCopper
height0.927
height_AttribHeight
jsonUrlData/Product/ILSCO-Copper-Mechanical-Lug-Offset-Conductor-Range-6-14-1-Port-1-Hole-10in-Bolt-Size-UL-CSA-783669829464
jsonUrlData2b1517a99-75ed-4d1d-b0d4-abb200c8edf8
keywordsILSCO, Mayer ILSCO, 783669829464, SLU35
length1.188
length_AttribLength
moq, multiple, tierMinQty1, Number of Ports / Wireways, Number of Poles, Number of Mounting Holes, Bag Quantity, Number of Wire Binding Screws per Port1
MPNSLU-35
qtyInStock0
SKUILSSLU35
snippetShop ILSCO at Mayer. Copper Mechanical Lug Offset, Conductor Range 6-14, 1 Port, 1 Hole, #10in Bolt Size, UL, CSA
tierPrice13.36
width, Tang Width (IN)0.375
width_AttribWidth
Voltage Rating35 kV
Tang Offset (IN)0.43
Mounting Bolt/Stud Size (mm)254
Width BX (IN)5
Dimension G (mm)5.5626
Tang Offset (mm)10.922
Drive Type MainSlotted
Mounting Hole Diameter (IN)0.203
Tang Width (mm)9.525
Tang Length (IN)0.5
Tang Thickness (mm)1.8288
Dimension G (IN)0.219
Height BX (IN)2.25
Tang Thickness (IN)0.072
Mounting Hole Diameter (mm)5.1562
Tang Length (mm)12.7
Weight BX (LB)3.2
UL / CULUS SpecificationUL 486A/B Listed
UL File NumberE6207
CSA StandardC22.2 No. 65-03
UL Control Number453G
ROHS IndicatorIND
CSA File NumberLR-29601
Prop65 ComplianceThis product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
Mounting Hole TypeThru
Contains DE-OX?, Dual Rated, Direct BurialNo
Collar StyleV-Bottom
Number of Conductors2, 1
ConnectionMechanical
Wire Binding Hardware FinishZinc Clear Trivalent Chromate
Wire Binding Hardware MaterialSteel
Conductor Range CU Solid (Primary, run, main, line)10 Sol - 14 Sol
Conductor Range CU Stranded (Primary, run, main, line)6 Str - 14 Str
Wire Combinations(1) 10 Sol/Str and (1) 12 Sol/Str, (2) 10 Sol/Str, (2) 12 Sol/Str, (2) 14 Sol/Str, (1) 12 Sol/Str and (1) 14 Sol/Str
Conductor TypeSolid, Stranded
UPC Code78366982946
Carton Quantity DescriptionSTD PACK QTY 100
NEMA CodeS-588-3
Height0.927 in
Width0.375 in
Length1.188 in
Mounting Bolt/Stud Size#10
Wire Binding Torque2 AWG = 40, 4 - 6 AWG = 35, 10 - 18 AWG = 20, 8 AWG = 25
Wire Binding Screw Size1/4
Temperature Rating90?C

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comILSSLU35111 @ $3.36
