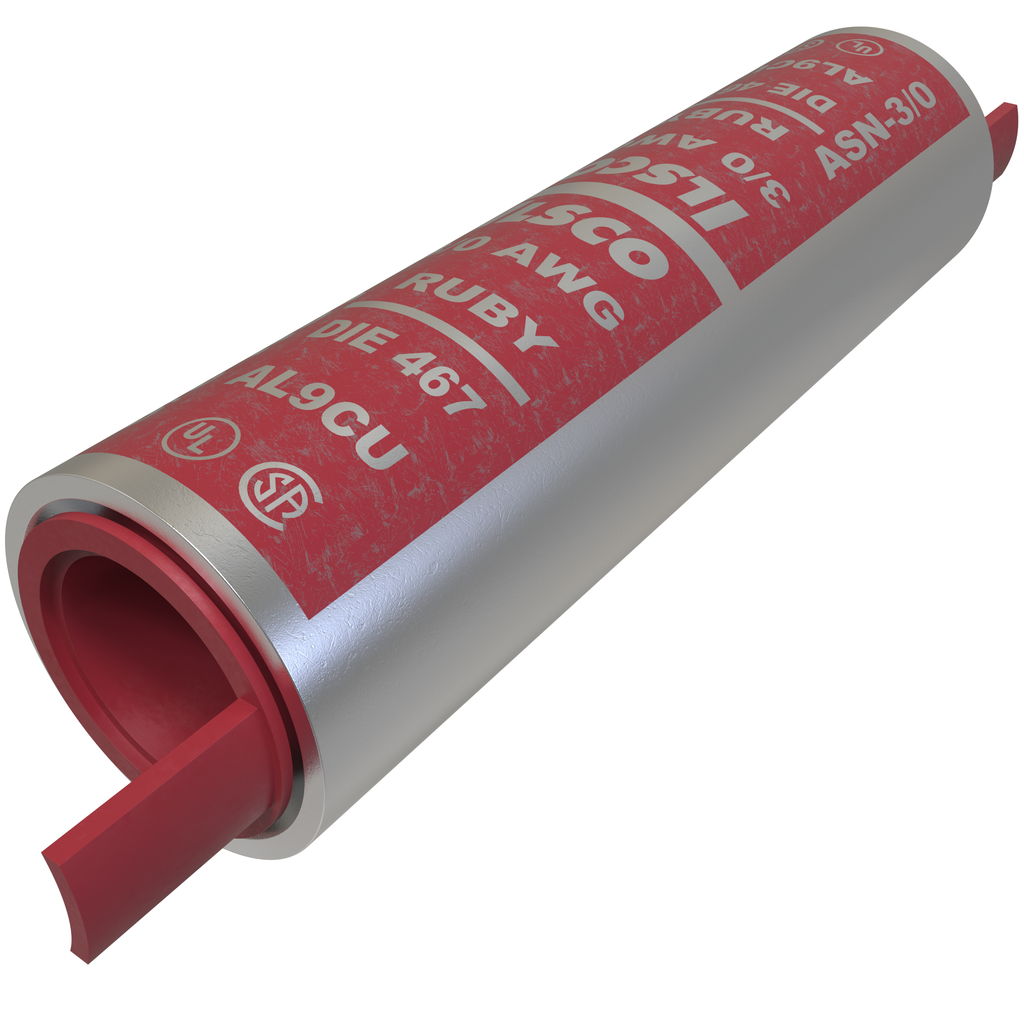

Surecrimp Aluminum Compression Sleeve, Conductor Size 3/0, Tin Plated, UL, CSA | Mayer Electric

Mayer Electric Supply . ASN-3/0

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameSurecrimp Aluminum Compression Sleeve, Conductor Size 3/0, Tin Plated, UL, CSA | Mayer Electric
UPC783669184785
Weight0.069
WeightUnitlbs
Weight_AttribWeight
color, ColorSilver
height, width, Outside Diameter (IN)0.761
height_AttribHeight
jsonUrlData/Product/ILSCO-Surecrimp-Aluminum-Compression-Sleeve-Conductor-Size-3-0-Tin-Plated-UL-CSA-783669184785
jsonUrlData26a933c5a-10bb-4795-94cc-abb200c8ec0d
length2.71
length_AttribLength
moq, multiple, tierMinQty1, Number of Conductors, Bag Quantity1
MPNASN-3/0
qtyInStock0
SKUILSASN30
tierPrice134.32
width_AttribWidth
Height, Width0.761 in | 19.3294 mm
Length2.71 in | 68.834 mm
Height BX (IN)2.25
Height (mm), Outside Diameter (mm), Width (mm)19.3294
Inside Diameter (IN)0.495
Inside Diameter (mm)12.573
Length (mm)68.834
Weight BX (LB)0.7807
Width BX (IN)5
Conductor TypeStranded
Barrel MarkingHard
Barrel TypeStandard
ConnectionCompression
Contains DE-OX?, Dual RatedYes
Flared EndNo
ILSCOs Die Index Number297
Conductor MaterialAluminum, Copper
Connector FinishTin
MaterialAluminum
Conductor Range AL Stranded (Primary, run, main, line), Conductor Range CU Stranded (Primary, run, main, line)3/0 Str
Expanded Conductor Range3/0 Str - 1 Str
Temperature Rating90?C
Color CodeRuby
Voltage Rating35 kV
CSA File NumberLR-29601
CSA StandardC22.2 No. 65-03
Prop65 ComplianceThis product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
UL Control Number453G
UL / CULUS SpecificationUL 486A/B Listed
UL File NumberE6207
Carton Quantity DescriptionSTD PACK QTY 10
NEMA CodeS-588-1
UPC Code78366918478

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comILSASN30111 @ $34.32
