Marathon Motors

http://www.sustainablesupply.com/cdn/shop/products/44P056_AS02_1024x.jpg

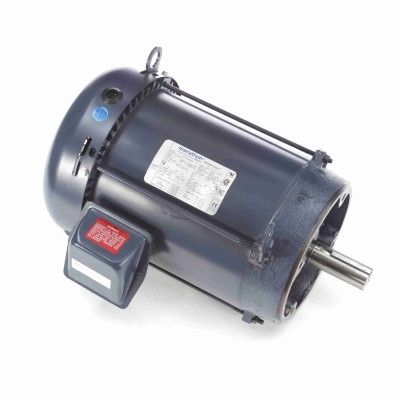

Marathon Motors . 213TTFBD6004

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameMarathon Motors
DimensionUnitinch
GraingerSku44P056
UPC, Motor Thermal ProtectionNone
UnitOfMeasureEA
Voltage, Voltage @ 50Hz230/460V AC
Weight151
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginMX
extendedLead26
extendedQty-2
height14
jsonUrlData924526ffbdad25e5923b
length22.5
moq, multiple, tierMinQty1, No of Speeds1
MPN213TTFBD6004
perItemShipping200.00
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG9816134
tierPrice11115.01
urlhttps://www.zoro.com/marathon-motors-3-phase-general-purpose-motor-7-12-hp-213tc-frame-230460v-ac-voltage-3-525-nameplate-rpm-213ttfbd6004/i/G9816134/
width16.81
ItemGeneral Purpose Motor
Motor Enclosure DesignTotally Enclosed Fan-Cooled
Motor Mounting TypeFace
HP, HP @ 50Hz7 1/2
RPM Range3,001-3,600
Frame213TC
Motor Service Factor, Service Factor @ 50Hz1.15
Voltage Compatibility200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor ApplicationGeneral Application
Motor Design3-Phase
Nameplate RPM, RPM @ 50Hz3,525
Motor Shaft RotationCW/CCW
Motor Mounting PositionHorizontal
Motor Frame MaterialSteel
Motor Shaft DesignKeyed
StandardsCE, CSA, UL Recognized
Hz60/50
Inverter RatedYes
Full Load Amps, Full Load Amps @ 50Hz18.4/9.2
Duty, Duty CycleContinuous
RPM Group3001-3600
Nominal Efficiency91.7 %
Motor Efficiency GroupNEMA Premium Efficient
Length Less Shaft15 3/4 in
Max Ambient Temp40 Degrees C
CC NumberCC003A
Shaft Dia1 3/8 in
Frame MaterialRolled steel
PhaseThree
Ins ClassF
Shaft Length3 3/8 in
Manufacturers Warranty Length1 yr
Overall Length19 1/8 in
Motor BearingsBall
Green Certification or Other RecognitionNEMA Premium(R) Rated
Usable @ 208V, Usable @ 200V, Capacitor RequiredNo
NEMA DesignB
Country of Origin (subject to change)Mexico

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG9816134111 @ $1115.01
Grainger44P05611
sustainablesupply.comC2791513111 @ $621.43
motorsandcontrol.comGT1315A111 @ $0.00
pumpproducts.com213TTFBD60041-211 @ $1666.98
Galco213TTFBD6004-MARA111 @ $823.92
