Johnson Controls

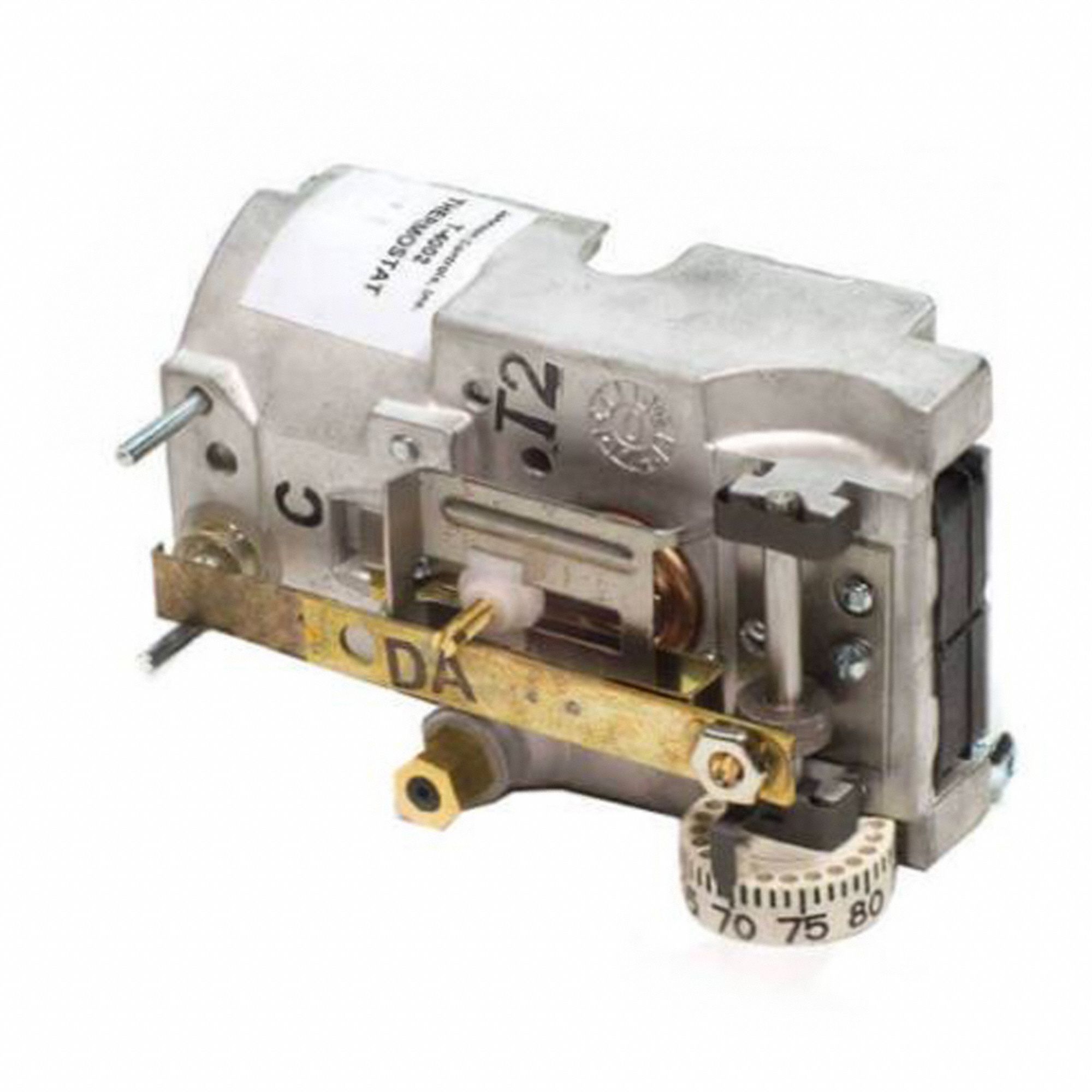

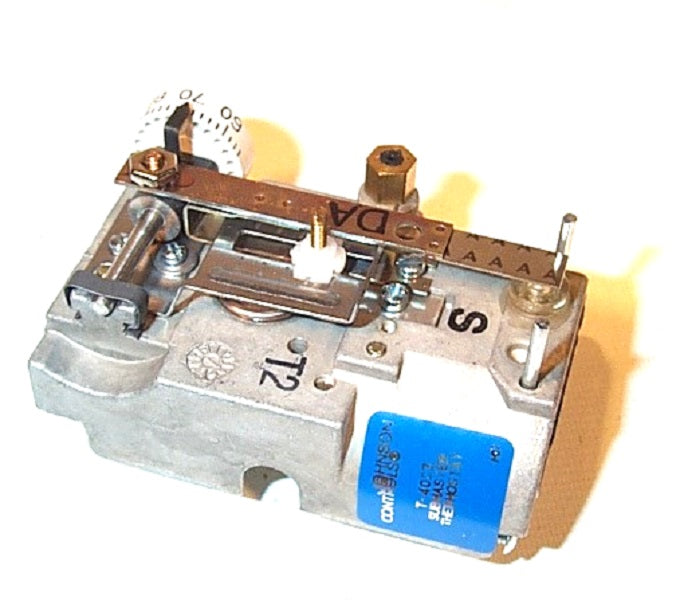

Johnson Controls horizontal mounted, two-pipe, direct acting pneumatic Submaster thermostat for a temperature range of 55-85°F. T-4003 thermostats can be reset from a remote location or in accordance with a reference temperature variation.

Johnson Controls . T-4003-201

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product Name, Fits BrandJohnson Controls
DimensionUnitinch
GraingerSku42C116
UPCNone
UnitOfMeasureEA
Weight0.38
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginMX
extendedLead40
extendedQty-2
height, length, moq, multiple, tierMinQty1, width, Number of Pipes1
jsonUrlData924526ffbdad25e5923b
MPNT-4003-201
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG0652541
tierPrice1199.00
urlhttps://www.zoro.com/johnson-controls-thermostat-dir-dr-horiz-f-t-4003-201/i/G0652541/
FeaturesDial Range: 55F to 85F
ItemThermostat Dir Dr Horiz F
Pneumatic Thermostat Type, Pneumatic Thermostat Type/Indexing SwitchRemote Reset
Overall Height2 1/8 in
Differential TypeFixed
Fitting ConnectionBarbed 5/32 in
Manual Indexing SwitchNo
Overall Depth1 3/4 in
Air Flow OutputHigh Volume
Sensor TypeBi-Metallic Spring
Air Connection Outside Diameter1/8 in
Minimum Control Temperature55 Degrees F
Thermostat Action, ActionDirect
Number of Pipes/Air Flow Output1 Pipe, High Volume
Number of DialsSingle
Maximum Air Pressure25 psig
Temperature SettingsSingle Temperature
Overall Width3 1/8 in
Mounting DirectionHorizontal
Air Flow Capacity400 scim
Maximum Control Temperature85 Degrees F
Control Air Pressure Settings13 psig (Day)/ 25 psig (Night)
Mounting Direction/Includes CoverHorizontal, No
Air Consumption20 scim
Temperature Control Range55 Degrees to 85 Degrees F
Temperature ScaleCelsius/Fahrenheit
Product TypePneumatic Thermostat
Country of Origin (subject to change)Mexico

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG0652541111 @ $199.00
RadwellT-4003-201111 @ $270.00
SupplyHouseT-4003-20111
ZoroG7033118111 @ $281.81
State SupplyJC12591-211 @ $335.14
h-mac.comJOHNSON-CONTROLS-NU-T-4003-20111
Voomi SupplyT-4003-201111 @ $284.86
uri.comT40032011-211 @ $597.80
cappusa.com5372681111 @ $227.16
midwestapplianceparts.comT-4003-201-JO-P1311 @ $290.78
furnacepartsource.comT-4003-2011311 @ $313.34
energycontrol.comT-4003-2011Call for Lead Time11 @ $266.31
Digi-Key1582668725012501 @ $323.95, 10 @ $320.95, 25 @ $314.95, 50 @ $311.95, 100 @ $308.95, 250 @ $299.95
gsistore.comT-4003-2011311 @ $268.91
hvacdiscountstore.comJOH--T-4003-201111 @ $304.42
waterpumpsnow.comT-4003-20111
homeessentialsdirect.comT-4003-2011-211 @ $293.39
GalcoT-4003-201-JHSN111 @ $310.00
industrialstores.comT-4003-2011Usually Ships 1-2 Weeks11 @ $313.84
blackhawksupply.comT-4003-2011-211 @ $263.03
alliedcontrols.comT-4003-2011Factory Stock11 @ $243.75
grainger.caJHCT4003201111 @ $192.11
