LVR033S-2 Littelfuse Inc. | Circuit Protection | DigiKey

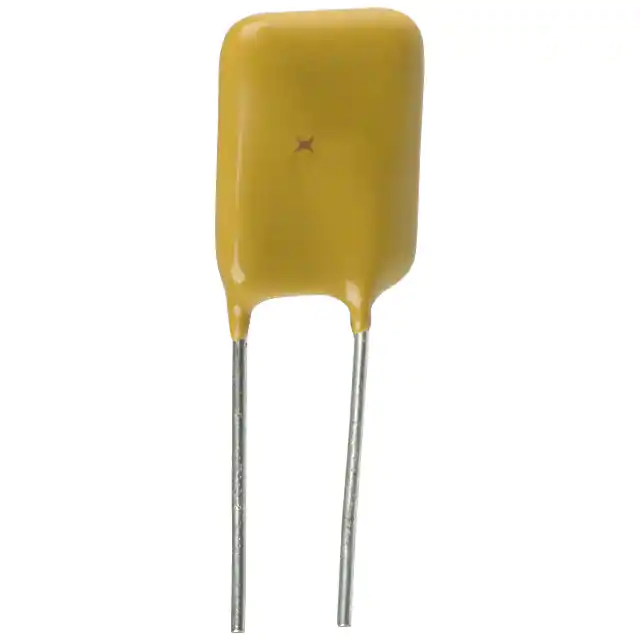

Polymeric PTC Resettable Fuse 240V (265V Int) 330 mA Ih Through Hole Radial, Disc
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Littelfuse Inc. |
|---|---|
| DimensionUnit | inch |
| Extra Product Name | LVR033S-2 Littelfuse Inc. | Circuit Protection | DigiKey |
| atoms, tierMinQty1 | 1 |
| extraShipping | 0 |
| height | 0.65 |
| height_Attrib | Height - Seated (Max) |
| moq, multiple | 2,000 |
| MPN | LVR033S-2 |
| qtyInStock | 3958 |
| SKU | 3885059 |
| snippet | Polymeric PTC Resettable Fuse 240V (265V Int) 330 mA Ih Through Hole Radial, Disc |
| tierMinQty10, tierMinQty6 | 250 |
| tierMinQty2 | 5 |
| tierMinQty3 | 10 |
| tierMinQty4 | 50 |
| tierMinQty5, tierMinQty9 | 100 |
| tierMinQty7 | 500 |
| tierMinQty8 | 1,000 |
| tierPrice1 | 1.0005 |
| tierPrice10 | 0.53116 |
| tierPrice2 | 0.9705999999999999 |
| tierPrice3 | 0.9085 |
| tierPrice4 | 0.75187 |
| tierPrice5 | 0.6265199999999999 |
| tierPrice6 | 0.6108339999999999 |
| tierPrice7 | 0.516879 |
| tierPrice8 | 0.45422699999999994 |
| tierPrice9 | 0.54480 |
| Category | Circuit Protection |
| Series | PolySwitch?, LVR |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 240V (265V Int) |
| Current - Max | 4.5 A |
| Current - Hold (Ih) (Max) | 330 mA |
| Current - Trip (It) | 740 mA |
| Time to Trip | 21 s |
| Resistance - Initial (Ri) (Min) | 770 mOhms |
| Resistance - Post Trip (R1) (Max) | 2.6 Ohms |
| Operating Temperature | -20?C ~ 85?C |
| Ratings, Thickness (Max) | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.449" L x 0.150" W (11.40mm x 3.80mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Lead Spacing | 0.200" (5.08mm) |
| Approval Agency | CQC, CSA, TUV, UL |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | 3885059 | 2000 | 3958 | 2000 | 1 @ $1.00, 5 @ $0.97, 10 @ $0.91, 50 @ $0.75, 100 @ $0.63, 250 @ $0.61, 500 @ $0.52, 1000 @ $0.45, 100 @ $0.54, 250 @ $0.53 |
| Win Source | LVR033S-2 | 1 | 10 | 1 | |
| Newark | 34AC4932 | 2000 | 2000 | 2000 @ $0.42, 4000 @ $0.38, 6000 @ $0.37, 10000 @ $0.36 | |
 iodParts | LVR033S-2 | 1 | 1 | ||
| Digi-Key | 5268572 | 6000 | 2570 | 6000 | 1 @ $0.99, 5 @ $0.96, 10 @ $0.90, 50 @ $0.74, 100 @ $0.62, 250 @ $0.60, 500 @ $0.51, 1000 @ $0.45 |
