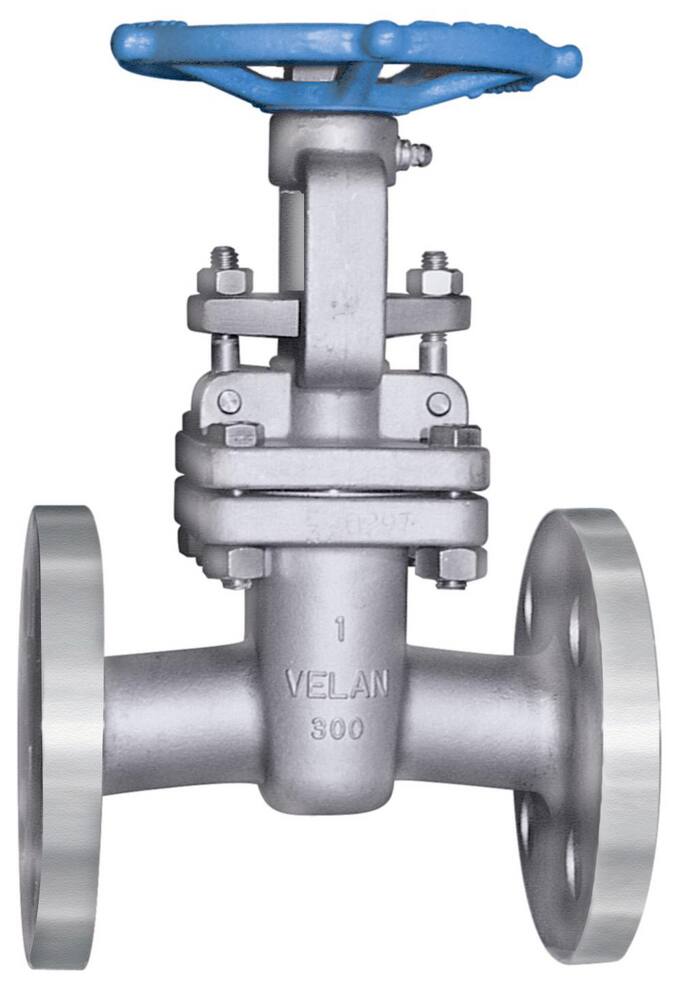

Velan Valve . F09-1064C-02TY
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | Velan Valve |
|---|---|
| DimensionUnit | inch |
| Weight | 76 |
| Weight_Attrib | Weight |
| height | 16.94 |
| height_Attrib | Height |
| length | 9.5 |
| length_Attrib | Length |
| moq, multiple, tierMinQty1 | 1 |
| MPN | F09-1064C-02TY |
| qtyInStock | -2 |
| qtySource | FieldMap |
| SKU | 189834 |
| tierPrice1 | 518.26 |
| API Specifications | API 600 |
| ASME Specifications | ASME B16.10, ASME B16.25, ASME B16.34, ASME B16.5, ASME Class 300 |
| Collection | Figure 1064C |
| End Connection 1, End Connection 2, End Connections | Flanged |
| FM Approved, NSF Certified, UL Listed | No |
| Height | 16-47/50 in |
| Length | 9-1/2 in |
| Material | Carbon Steel, Cast Carbon Steel, Stainless Steel |
| Material Type | CR 13, Stellite |
| Pressure Class | 300# |
| Valve Body Material | Cast Carbon Steel |
| Valve Body Style | Vertical |
| Valve Bonnet Type | Bolted |
| Valve Disc Material | CR 13 |
| Valve Operator | Handwheel |
| Valve Port Opening | Full Port |
| Valve Seat Material | Stellite |
| Valve Size | 2-1/2 in |
| Valve Stem | Outside |
| Valve Type | Gate Valve |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| 189834 | 1 | -2 | 1 | 1 @ $518.26 |
