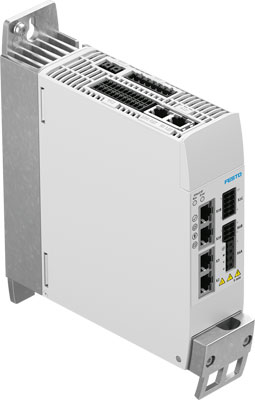

CMMT-AS-C4-3A-EP-S1 – Coast Pneumatics

Festo

Festo . 5340825

Attributes

Brand name, Manufacturer name, ManufacturerFesto
DimensionUnitm
Extra Product NameCMMT-AS-C4-3A-EP-S1 – Coast Pneumatics
Weight1400
WeightUnitg
Weight_AttribProduct weight
height2000.0
height_AttribMax. installation height
length25.0
length_AttribMax. length of motor cable without ext. mains filter
moq, multiple, tierMinQty1, Number of floating switching outputs, Number of inputs for motor temperature sensor, Hardware fault tolerance, Number of analog setpoint inputs1
MPN, SKU5340825
qtyInStock-2
qtySourceDefault field
tierPrice11729.51
Type codeCMMT-AS
Fieldbus interface, functionBus connection, incoming/forwarding EtherNet/IP slave
KC charactersKC EMC
Fieldbus interface, transmission rate100 Mbit/s
Mounting positionFree convection Vertical
Information on max installation height1% power reduction/100 m above 1000 m.
Ethernet interface, protocolTCP/IP
Ethernet interface, functionParameterization and commissioning
Encoder interface, functionEnDat? 2.1 encoder EnDat? 2.2 encoder Hiperface encoder Incremental encoder Nikon SIN/COS encoder
Fieldbus interface, connection technologyRJ45
Mains typesTT TN IT
Protection classI
Encoder interface 2, functionIncremental encoder SIN/COS encoder
Fieldbus interface, protocolEtherNet/IP
Overvoltage categoryIII
Synchronization interface, functionEncoder emulation A/B/Z Encoder input A/B/Z Pulse/direction signals CLK/DIR CW/CCW counting signals
Fieldbus interface, connection type2x socket
Number of high-speed switching outputs, Number of diagnostic outputs, Number of high-speed logic inputs, Number of safe 2-pin inputs, Contamination level2
Max current of the floating switching outputs50 mA
Max continuous output of the external braking resistor (IEC)350 W
Pulse energy for braking resistor230 Ws
Max output current of holding brake1 A
System voltage to EN 61800-5-1300 V
Max short circuit protection of mains100 kA
Braking resistor nominal power (IEC)23 W
Max voltage drop from logic supply to brake output0.8 V
Time resolution of high-speed logic inputs, Time resolution of high-speed switching outputs1 ?s
Max current consumption for logic supply with parking brake1.5 A
Max installation height2000 m
Based on normEN 50581 EN 60204-1 EN 61508-1 EN 61508-2 EN 61508-3 EN 61508-4 EN 61508-5 EN 61508-6 EN 61508-7 EN 61800-2 EN 62061
Conforms to standardEN 61800-3 EN 61800-5-1 EN 61800-5-2 EN ISO 13849-1
Active PFCno
Line filterIntegrated
Safety functionSafe brake control (SBC) Safe torque off (STO) Safe stop 1 (SS1)
Safety integrity level (SIL)Safe brake control (SBC)/SIL 3/SILCL 3 Safe torque off (STO)/SIL 3/SILCL 3
Performance Level (PL)Safe brake control (SBC)/category 3, performance level e Safe torque off (STO)/category 4, performance level e
DisplayLED green/yellow/red
Control elementsOptional: CDSB operating unit
Output frequency0 Hz … 599 Hz
Output voltage range AC3x (0 ? input) V
Braking resistor, external67 Ohm … 100 Ohm
Braking resistor, integrated100 Ohm
Diagnostic coverage97 %
Characteristics of digital logic outputsFreely configurable in some cases Not galvanically isolated Diagnostic outputs in some cases
Impedance of setpoint input70 kOhm
Pulse power of braking resistor1.6 kVA
Max current of digital logic outputs20 mA
Max length of motor cable without ext mains filter25 m
Max peak current duration2 s
Max DC link voltage395 V
Nominal operating voltage AC230 V
Input voltage range AC100 V … 230 V
Controller nominal power700 VA
Nominal voltage, logic supply DC24 V
Nominal voltage, load supply DC320 V
Nominal current load supply5.6 A
Nominal current per phase, effective4 A
Mains frequency48 Hz … 62 Hz
Nominal operating voltage phases1-phase
SFF safe failure fraction99 %
Peak power2000 VA
Peak current, load supply16.8 A
Peak current per phase, effective12 A
Surge resistance6 kV
Max current consumption for logic supply without clamping brake0.5 A
Max current consumption for logic supply with clamping brake and I/O2.3 A
Load supply permissible range-20 %/+15 %
Permissible range of logic voltage? 20 %
Permissible voltage fluctuations-20 % / +15 %
Certificate issuing authorityGerman Technical Control Board (T?V) Rheinland 01/205/5640.00/18 UL E331130
CE marking (see declaration of conformity)As per EU EMC directive as per EU machinery directive As per EU low voltage directive As per EU RoHS directive
Storage temperature-25 ?C … 55 ?C
Relative air humidity5 – 90 % Non-condensing
Degree of protectionIP20
Ambient temperature0 ?C … 50 ?C
Note on ambient temperatureAbove an ambient temperature of 40 ?C, the power must be reduced by 3%/?C.
UL-ambient temperature0 ?C … 40 ?C
CertificationRCM compliance mark German Technical Control Board (T?V) c UL us – Listed (OL)
Product weight1400 g
Number of digital logic outputs 24 V DC6
Number of digital logic inputs12
Communication profileDriveProfile
Process interfacingAdjustable-Speed Drives Drives with positioning function
Logic input specificationBased on IEC 61131-2, type 3
Work range of logic input-3 V … 30 V
Work range of setpoint input, Operating range of analog inputs? 10 V
Encoder interface output, characteristics1 MHz maximum output frequency max. 16384 ppr
