Keri Systems PXL-500W-1 Tiger II Controller for Wiegand Type Readers

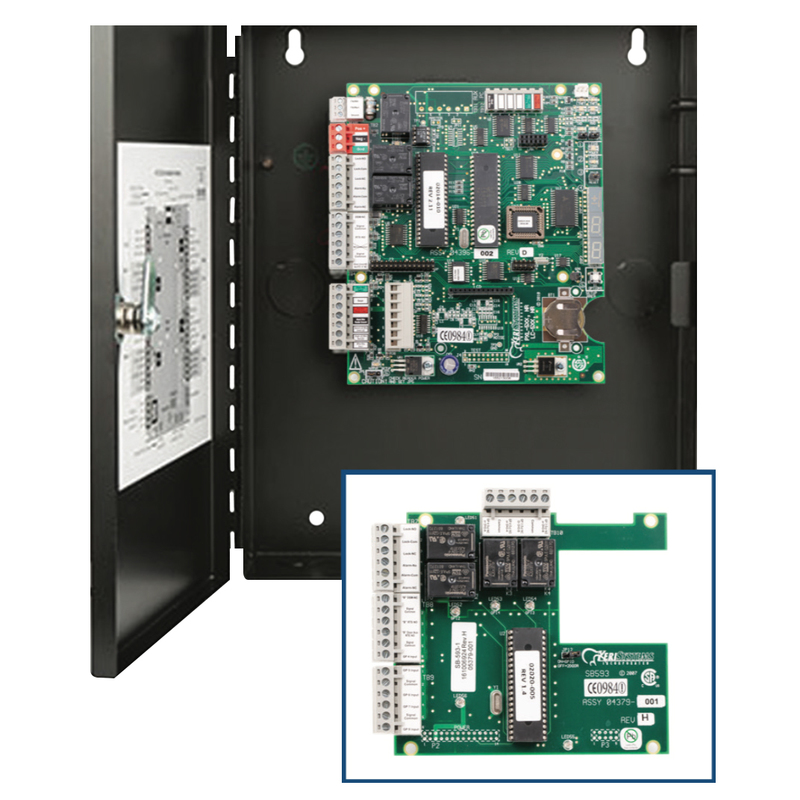

Keri Tiger II Platform Keri’s PXL-500 Tiger II Controller is an RS-485 based hardware platform with a loyal following and years of proven reliability. Provides sophisticated access control solutions for up to 256 doors at a single site and thousands of doors spread over a number of remote sites. Its companion SB-593 Satellite Expansion Board simply takes flexibility and expandability one step further. The system is managed by Keri’s Doors32 software or Doors.NET software, with Doors.NET being recommended for all new installations. RS-232 serial port for direct connection to PC or via TCP/IP or modem for remote site management 100% intelligence at each door Expandable by 1 or 2 doors at a time User Capacity: 65,000 RS-485 Controller Network for up to 256 doors per site

Keri Systems Incorporated Keri Systems Incorporated Keri Systems PXL-500W-1 Tiger II... Additional Information Manufacturer Keri Systems Incorporated Model PXL-500W-1 Dimensions (Enclosure) 13" H x 9" W x 4" D (33.15 cm x 22.95 cm x 6.35 cm) Dimensions (PC Board) 5.6" H x 6.6" W x l.6" D (14.28 cm x 16.83 cm x 2.55 cm) Reader Type Wiegand-compatible device Power Requirements +12 VDC @ 125mA (PXL-500) add 375mA for SB-593 Inputs Door Sense, Request to Exit, Auxiliary/External Time Zone, Card Reader (2), A & B Outputs Form C Lock Relay (3 Amp). Form C Alarm Relay (3 Amp). RS-232 Serial Port (DB-9M). Output for Optional LCD Display Buffer Capacity 65,000 Cardholders, 3,600 Events Temperature/Humidity 32°F to 140°F (0°C to 60°C) 0-90% Non Condensing Communication Between Controllers: RS-485, 9600 Baud PC to Master: RS-232 Lithium Battery 5 Years Memory Retention U.L. Listed UL/CSA Certification: The PXL-500 is UL certified under UL-508 (Control Equipment) Warranty Limited Warranty Weight 8.0000 PXL-500W-1
