113 Switchcraft Inc. | Connectors, Interconnects | DigiKey

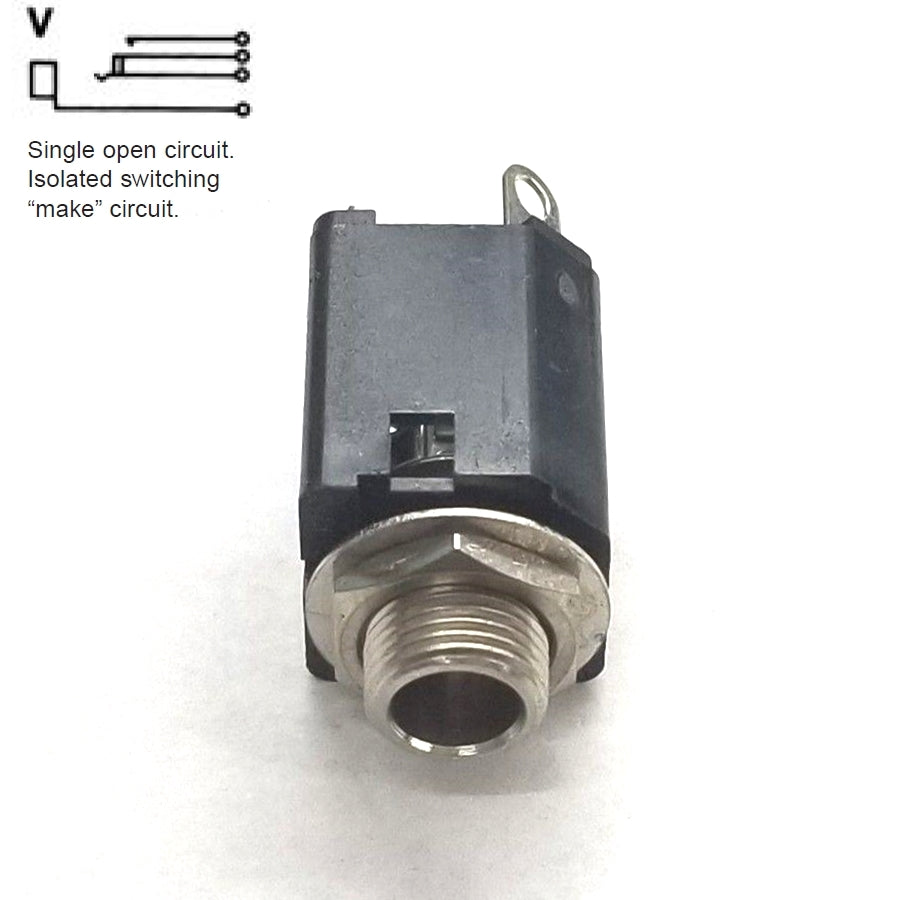

This is a Switchcraft 113 1/4", 2 Conductor Mono Panel Mount, Switched Female Jack.?This connector is a good quality connector made by Switchcraft, not an overseas import. This jack has an?Isolated "Make", Single Open Circuit - Normally Open (When a Plug is Inserted, a Separate Circuit is Closed). This?Connector is?New

Switchcraft Inc. . 113

Attributes

Brand name, Manufacturer name, Manufacturer, MfrSwitchcraft Inc.
DimensionUnitinch
Extra Product Name113 Switchcraft Inc. | Connectors, Interconnects | DigiKey
atoms, moq, multiple1
diameter, length, width6.35
extraShipping, qtyInStock0
length_Attrib, width_AttribIndustry Recognized Mating Diameter
MPN113
SKU109575
CategoryConnectors, Interconnects
SeriesHi-D? 11*
Package, Insulation Color, Operating Temperature, Voltage - Rated, Mating Length/Depth, Cable Opening, Panel Hole Size-
Part StatusObsolete
Connector TypePhone Jack
GenderFemale
Signal LinesMono
Industry Recognized Mating Diameter6.35mm (0.250", 1/4") - Headphone
Actual Diameter0.250" (6.35mm)
Number of Positions/Contacts2 Conductors, 4 Contacts
Internal Switch(s)Single Switch
Mounting TypePanel Mount, Through Hole
TerminationSolder Eyelet(s)
ShieldingUnshielded
FeaturesMounting Hardware, Thread Lock
Contact Material - PlatingTin
Body MaterialCopper Alloy
Body ColorSilver, Black
Includes3 pcs - 1 Connector, 1 Nut, 1 Washer
Housing MaterialPolyester
Contact MaterialBrass
Thread Size3/8"-32

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Digi-Key10957511
Onlinecomponents.com113111
marvac.com21965015111 @ $2.99
