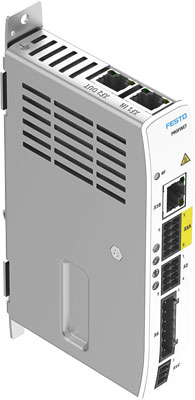

CMMT-ST-C8-1C-PN-S0 – Coast Pneumatics

8084004 FESTO | Search our online catalog of Pneumatics. Start your quote online to connect with our team of technical experts for support.

Festo . 8084004

Attributes

Brand name, Manufacturer name, ManufacturerFesto
DimensionUnitm
Extra Product NameCMMT-ST-C8-1C-PN-S0 – Coast Pneumatics
Weight350
WeightUnitg
Weight_AttribProduct weight
height2000.0
height_AttribMax. installation height
length25.0
length_AttribMax. length of motor cable without ext. mains filter
moq, multiple, tierMinQty1, Number of floating switching outputs, Number of diagnostic outputs, Number of safe 2-pin inputs, Hardware fault tolerance1
MPN, SKU8084004
qtyInStock-2
qtySourceDefault field
tierPrice1700.28
Type codeCMMT-ST
Fieldbus interface, functionBus connection, incoming/forwardingPROFINET slave
KC charactersKC EMC
Fieldbus interface, transmission rate100 Mbit/s
Mounting positionFree convectionVertical
Ethernet interface, protocolTCP/IP
Ethernet interface, functionParameterization and commissioning
Encoder interface, functionBiSS-CIncremental encoder
Fieldbus interface, connection technologyRJ45
Protection classIII
Proof test intervalSTO / 20 a (stepper motor/EC-motor without diagnostics)
Fieldbus interface, protocolPROFINET IRTPROFINET RT
Overvoltage categoryI
Fieldbus interface, connection type2x socket
Number of high-speed switching outputs, Number of high-speed logic inputs, Contamination level, Number of digital logic outputs 24 V DC2
Max current of the floating switching outputs, Max current of digital logic outputs100 mA
Max output current of holding brake, Max current consumption for logic supply without clamping brake1 A
Max voltage drop from logic supply to brake output1 V
Time resolution of high-speed logic inputs, Time resolution of high-speed switching outputs1 ?s
Max current consumption for logic supply with parking brake2 A
Max installation height2000 m
Diagnostic coverageSTO: 87% (EC motor without diagnostics)STO / 90% (stepper motor)STO: 92% (EC motor with diagnostics)
Adjustable current reduction, Nominal current settingVia software
Protective functionI?t monitoringTemperature monitoringCurrent monitoringVoltage failure detectionContouring error monitoringSoftware end position detection
Safety functionSafe torque off (STO)Safe stop 1 with time control (SS1-t)
Safety integrity level (SIL)STO / SIL 2 / SILCL 2 (EC motor without diagnostics)STO / SIL 3 / SILCL 3 (stepper motor/EC motor with diagnostics)
Performance Level (PL)STO: cat. 3 PLd (EC motor without diagnostics)STO/cat. 3, PLe (stepper motor/EC motor with diagnostics)
DisplayLED green/yellow/red
Output frequency0 Hz … 20000 Hz
Output voltage range AC0 V up to input voltage
Characteristics of digital logic outputsConfigurableNot galvanically isolated
Max length of motor cable without ext mains filter25 m
Max peak current duration3 s
Max DC link voltage60 V
Nominal output current, Nominal current per phase, effective8 A
Controller nominal power300 VA
Nominal voltage, logic supply DC24 V
Nominal voltage, load supply DC24 V … 48 V
Peak power400 VA
Peak current per phase, effective10 A
Load supply permissible range-15% / +15%
Permissible range of logic voltage? 15 %
Certificate issuing authorityGerman Technical Control Board (T?V) Rheinland 01/205/5696.00/19UL E331130
CE marking (see declaration of conformity)As per EU EMC directiveas per EU machinery directiveAs per EU RoHS directive
Storage temperature-25 ?C … 55 ?C
Relative air humidity5 – 90 %Non-condensing
Degree of protectionIP20
Ambient temperature0 ?C … 50 ?C
Note on ambient temperatureObserve derating with regard to assembly distance and output current.
CertificationRCM compliance markc UL us – Listed (OL)
Product weight350 g
Number of digital logic inputs6
Communication profilePROFIdrivePROFIenergy
Process interfacingAC1: Adjustable-Speed DrivesAC3: drives with positioning functionAC4: Synchronous Servo Application
Logic input specificationBased on IEC 61131-2, type 3
Work range of logic input-3 V … 30 V
Characteristics of logic inputFreely configurable in some casesSafety inputs in some casesNot galvanically isolated
Input switching logic, Switching logic at outputsNPN (negative switching)PNP (positive switching)
Type of mountingMounting plate, screwed onWith H-rail
Note on materialsContains paint-wetting impairment substancesRoHS-compliant

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Coast Pneumatics80840041-211 @ $700.28
sun-source.com8084004111 @ $0.00
