Grainger.com

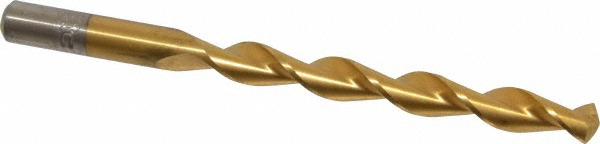

Jobber Length Drill Bit, Drill Bit Size U, Drill Bit Point Angle 135 Degrees , High Speed Steel, TiN, Decimal Equivalent 0.3680, Letter, Drill Bit Point Type Split Point, Non-Coolant Through, Number of Coolant Holes 0
Gallery
Attributes
| Brand name, Manufacturer name | CHICAGO-LATROBE |
|---|---|
| Manufacturer | CHICAGO-LATROBE Chicago Latrobe Greenfield |
| Extra Product Name | Grainger.com |
| extendedQty, qtyInStock | 0 |
| moq, multiple, Case, NumberOfItems | 1 |
| MPN, Part Number, Keyword, ModelNumber, Model_number, Mpns, PartNumber, Part_number, StrippedMpns | 53888 |
| qtySource | updateFromUrlEntry |
| SKU | 434L24 |
| Product Group | BISS |
| ASIN | B01BH7CD5O B08MVWVM9T |
| AdultProduct, Autographed, Memorabilia, TradeInEligible | False |
| Amount | 34.99 |
| Asin | B000LF4JBK B01BH7CD5O B08MVWVM9T B09TJQ86CL |
| Brand, Man | Chicago Latrobe |
| Bullet_point | 135 degree self-centering split point reduces thrust with easier penetration Drill Bit Grouping : Drill Bit Shank Type : Straight Drill Bit Point Angle : 135 Degrees Standards : ANSI Flute Type : Spiral Decimal Equivalent : 0.3680 Drill Bit Dimension Type : Letter Item : Jobber Length Drill Bit Cutting Direction : Right Hand Point Type : K-Notch Split Depth x Dia. Ratio : 8xD Point Angle : 135 Drill Style : Jobber Drill Left/Right Hand : Right Diameter : 0.339 Measurement System : Letter Shank Length : 1-3/8" Shank Size : 0.339 Coolant Fed : Non-Coolant Through Depth:Dia. Ratio : 8xD Helix Angle : 40 Degrees Primary Material Application : Steel Finish - Machining : TiN Drill Bit Point Type : Split Point Spiral Direction : Right Hand Shank Type - Machining : Straight Maximum Drilling Depth : 2.944" Drill Diameter Tolerance : +0.0000"/-0.0010" Price For: Each Overall Length : 5" Drill Bit Material : High Speed Steel Grade : General Purpose Number of Flutes : 2 Drill Bit Finish : TiN Material : High Speed Steel Flute Length : 3-5/8" Application : Low Carbon Steel, Soft Alloy Steel, Aluminum, Non-Ferrous Materials, Deep-hole Drilling Drill Bit Size : U Shank Dia. : 0.3680" List Number : 150DH-TN Coolant Through : No Primary Material Application ISO Code : P Material - Machining : High Speed Steel Drill Point Length : 0.0000 Series : 150DH-TN Drill Length Class : Jobber Length Material Grade - Machining : General Purpose Country of Origin (subject to change) : United States Engineered for deep-hole drilling up to 8 to 12 x diameter depth, depending on drill diameter Manufactured from premium high-speed steel Parabolic flute configuration with proprietary Convoflute flute design offers wider flute space, dispersing chips away from the cutting edges more rapidly and increasing coolant flow volume Titanium nitride (TiN) coating adds lubricity and hardness, enhancing chip flow, finished hole quality, and drill life.Made in the USA |
| Cat | Tools & Home Improvement |
| CatId | 228013 |
| CatTree | 228013 328182011 468240 551236 552794 |
| ClassificationId | 256275011 306506011 |
| Currency, CurrencyCode | USD |
| Cutting_angle_string | 135.0 |
| DisplayName | Industrial Electrical Jobber Drill Bits |
| Feature | Chicago Latrobe U Dia. 5" OAL TiN Coated High Speed Steel Parabolic |
| Finish_type | Titanium Nitride |
| Height | 0.42 0.63 11 26 400 450 600 75 8 |
| Identifier | 0662355538883 662355538883 7440139326931 |
| IdentifierType | EAN UPC |
| Included_components | Bare-Tool |
| ItemClassification | BASE_PRODUCT |
| ItemName, Item_name | Chicago Latrobe 150DHT Series High-Speed Steel Jobber Length Drill Bit, TiN Coated, Round Shank, Parabolic Flute, 135 Degree Split Point, Letter Size U (Pack of 6) Greenfield 53888 150 DHT LET-U (53888) (6/Each) U 5.000 U 5.000" HSS 135 Deg. Jobber Length Drill Bit |
| Item_package_quantity, Number_of_items, PackageQuantity | 1 6 |
| Item_package_weight | 0.12 |
| Item_type_keyword | electronic-components jobber-drill-bits |
| Label, Publisher, Studio | CHICAGO-LATROBE Chicago Latrobe |
| Length | 2.06 6 6.0 |
| Link | https://m.media-amazon.com/images/I/111nGABBrUL._SL75_.jpg https://m.media-amazon.com/images/I/111nGABBrUL.jpg https://m.media-amazon.com/images/I/213bc3IKKBL._SL75_.jpg https://m.media-amazon.com/images/I/213bc3IKKBL.jpg https://m.media-amazon.com/images/I/21UhjKklmCL._SL75_.jpg https://m.media-amazon.com/images/I/21UhjKklmCL.jpg https://m.media-amazon.com/images/I/31nn+e0MvZL._SL75_.jpg https://m.media-amazon.com/images/I/31nn+e0MvZL.jpg |
| List_price | 153.6 |
| Material, MaterialType | Alloy Steel High Speed Steel Low Carbon Steel |
| Mfg_series_number | 150DHT |
| ProductGroup | BISS BISS Basic |
| ProductType | DRILL_BITS |
| ProductTypeName | DRILL_BITS MECHANICAL_COMPONENTS |
| Product_description | 'Drill Bit, Letter, Drill Bit Size U, Decimal Equivalent 0.3680, Drill Bit Point Angle 135 Degrees , Drill Bit Material High Speed Steel, Drill Bit Finish TiN, Shank Type Straight, Flute Type Parabolic, Coolant Fed Non-Coolant Through, Cutting Direction Right Hand, Overall Length 5.000 In., Grade General Purpose, Shank Dia. 0.368 In., Flute Length 3.625 In., Point Type Split, List Number 150DH-TN, Standards ANSI' GREENFIELD 53888 150 DHT LET-U (53888) (6/each) |
| Product_site_launch_date | 2010-10-06T00:00:01-07:00 2016-02-03T19:22:19.124Z 2021-07-09T07:37:36.728Z 2024-01-19T23:18:37.312Z |
| Size | U |
| String_value | 0.3680 3-5/8 5 |
| Style | jobbers' |
| Surface_recommendation | Alloy Steel |
| Title | Chicago Latrobe U Dia. 5" OAL TiN Coated High Speed Steel Parabolic Drill U 5.000 U 5.000" HSS 135 Deg. Jobber Length Drill Bit |
| Type | Count Parabolic Round Spiral Straight ean upc |
| URL | http://ecx.images-amazon.com/images/I/119M9pZZ2lL._SL75_.jpg https://m.media-amazon.com/images/I/213bc3IKKBL._SL75_.jpg https://m.media-amazon.com/images/I/218n9peSqUL._SL75_.jpg https://m.media-amazon.com/images/I/21UhjKklmCL._SL75_.jpg |
| Unit | degrees inches kilograms pounds |
| Unit_count | 1.0 6.0 |
| Units | inches pixels pounds |
| Variant | MAIN |
| WebsiteDisplayGroup | biss_basic_display_on_website |
| WebsiteDisplayGroupName | BISS Basic |
| Weight | 0.00 0.2645547144 1.00 |
| Width | 0.63 250 3.38 400 450 600 75 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Grainger | 434L24 | 1 | 1 | ||
 Zoro | G2827522 | 1 | 12 | 1 | 1 @ $15.99 |
| 53888 | 1 | 1 | 1 @ $19.55 | ||
 bscsource.com | 53888 | 1 | 1 | 1 @ $51.29 | |
| Guardian | 80904212 | 1 | 1 | ||
| 53888 | 6 | -2 | 6 | 1 @ $19.55 | |
| 53888 | 1 | -2 | 1 | 1 @ $19.55 | |
| 80904212 | 6 | -2 | 6 | 1 @ $29.06 | |
 MRO Supply | 6131211 | 1 | 1 | 1 @ $16.00 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Chicago Latrobe 150DHT Series High-Speed Steel Jobber Length Drill Bit, TiN Coated, Round Shank, Parabolic Flute, 135 Degree Split Point, Letter Size U (Pack of 6)
Brand: Chicago Latrobe
Details
- Parabolic flute configuration with proprietary Convoflute flute design offers wider flute space, dispersing chips away from the cutting edges more rapidly and increasing coolant flow volume
- Manufactured from premium high-speed steel
- 135 degree self-centering split point reduces thrust with easier penetration
- Engineered for deep-hole drilling up to 8 to 12 x diameter depth, depending on drill diameter
- Titanium nitride (TiN) coating adds lubricity and hardness, enhancing chip flow, finished hole quality, and drill life.Made in the USA
U 5.000
Brand: Chicago Latrobe
'Drill Bit, Letter, Drill Bit Size U, Decimal Equivalent 0.3680, Drill Bit Point Angle 135 Degrees , Drill Bit Material High Speed Steel, Drill Bit Finish TiN, Shank Type Straight, Flute Type Parabolic, Coolant Fed Non-Coolant Through, Cutting Direction Right Hand, Overall Length 5.000 In., Grade General Purpose, Shank Dia. 0.368 In., Flute Length 3.625 In., Point Type Split, List Number 150DH-TN, Standards ANSI'
Details
- Price For: Each Overall Length : 5" Drill Bit Material : High Speed Steel Grade : General Purpose Number of Flutes : 2 Drill Bit Finish : TiN Material : High Speed Steel Flute Length : 3-5/8" Application : Low Carbon Steel, Soft Alloy Steel, Aluminum, Non-Ferrous Materials, Deep-hole Drilling Drill Bit Size : U Shank Dia. : 0.3680" List Number : 150DH-TN Coolant Through : No
- Drill Bit Grouping : Drill Bit Shank Type : Straight Drill Bit Point Angle : 135 Degrees Standards : ANSI Flute Type : Spiral Decimal Equivalent : 0.3680 Drill Bit Dimension Type : Letter Item : Jobber Length Drill Bit Cutting Direction : Right Hand Point Type : K-Notch Split Depth x Dia. Ratio : 8xD Point Angle : 135 Drill Style : Jobber Drill Left/Right Hand : Right Diameter : 0.339
- Measurement System : Letter Shank Length : 1-3/8" Shank Size : 0.339 Coolant Fed : Non-Coolant Through Depth:Dia. Ratio : 8xD Helix Angle : 40 Degrees Primary Material Application : Steel Finish - Machining : TiN Drill Bit Point Type : Split Point Spiral Direction : Right Hand Shank Type - Machining : Straight Maximum Drilling Depth : 2.944" Drill Diameter Tolerance : +0.0000"/-0.0010"
- Primary Material Application ISO Code : P Material - Machining : High Speed Steel Drill Point Length : 0.0000 Series : 150DH-TN Drill Length Class : Jobber Length Material Grade - Machining : General Purpose Country of Origin (subject to change) : United States
Listing
| Product group | BISS |
|---|---|
| Product type | MECHANICAL_COMPONENTS |
| Part number | 53888 |
| Items per pack | 1 |
| Label | Chicago Latrobe |
| Manufacturer | Chicago Latrobe |
Catalog
| Feature | Chicago Latrobe U Dia. 5" OAL TiN Coated High Speed Steel Parabolic |
|---|---|
| Category | Tools & Home Improvement |
| MPN | 53888 |
| Product group | BISS |
| Product type | MECHANICAL_COMPONENTS |
| Manufacturer | Chicago Latrobe |
U 5.000" HSS 135 Deg. Jobber Length Drill Bit
Brand: Chicago Latrobe
Listing
| Product group | BISS Basic |
|---|---|
| Product type | DRILL_BITS |
| Part number | 53888 |
| Label | CHICAGO-LATROBE |
| Manufacturer | CHICAGO-LATROBE |
Greenfield 53888 150 DHT LET-U (53888) (6/Each)
Brand: Chicago Latrobe
GREENFIELD 53888 150 DHT LET-U (53888) (6/each)
