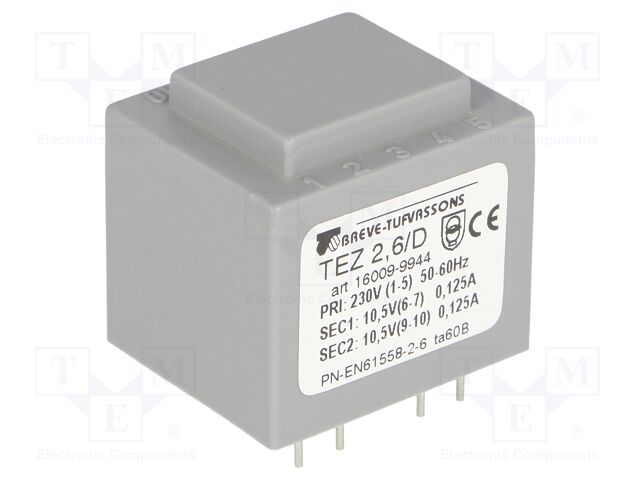

BREVE TUFVASSONS TEZ2.6/D230/10.5-10.5V | Transformer: encapsulated; 2.5VA; 230VAC; 10.5V; 10.5V; 119mA; PCB
BREVE TUFVASSONS TEZ2.6/D230/10.5-10.5V | Transformer: encapsulated; 2.5VA; 230VAC; 10.5V; 10.5V; 119mA; PC
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | BREVE TUFVASSONS |
|---|---|
| CategoryL1 | Transformers and Ferrite Cores |
| CategoryL2 | PCB transformers |
| Extra Product Name | BREVE TUFVASSONS TEZ2.6/D230/10.5-10.5V | Transformer: encapsulated; 2.5VA; 230VAC; 10.5V; 10.5V; 119mA; PCB |
| atoms, moq, multiple | 1 |
| jsonUrlData | e8473f8ee701e1732a65c7b1440a3aad. |
| jsonUrlData2 | 21d00e35c1e06a153845 |
| keywords | BREVE TUFVASSONS, TEZ2.6/D230/10.5-10.5V, TEZ2.6/D/10.510.5V |
| MPN | TEZ2.6/D230/10.5-10.5V |
| qtyInStock | 0 |
| SKU | TEZ2.6/D/10.510.5V |
| snippet | BREVE TUFVASSONS TEZ2.6/D230/10.5-10.5V | Transformer: encapsulated; 2.5VA; 230VAC; 10.5V; 10.5V; 119mA; PC |
| Type of transformer | encapsulated |
| Power | 2.5VA |
| Primary voltage | 230V AC |
| Secondary voltage 1, Secondary voltage 2 | 10.5V |
| Secondary winding current 1, Secondary winding current 2 | 119mA |
| Mounting | PCB |
| IP rating | IP00 |
| Conform to the norm | PN EN 61558-1:2000 |
| Thermal class | Ta60B |
| Secondary winding terminals | 6-7, 9-10 |
| Primary winding terminals | 1-5 |
| A dimension | 28mm |
| A1 dimension, A2 dimension | 20mm |
| B dimension | 33mm |
| C dimension | 30mm |
| Manufacturer series | TEZ |
| Electrical insulation strength | 4kV/60s |
