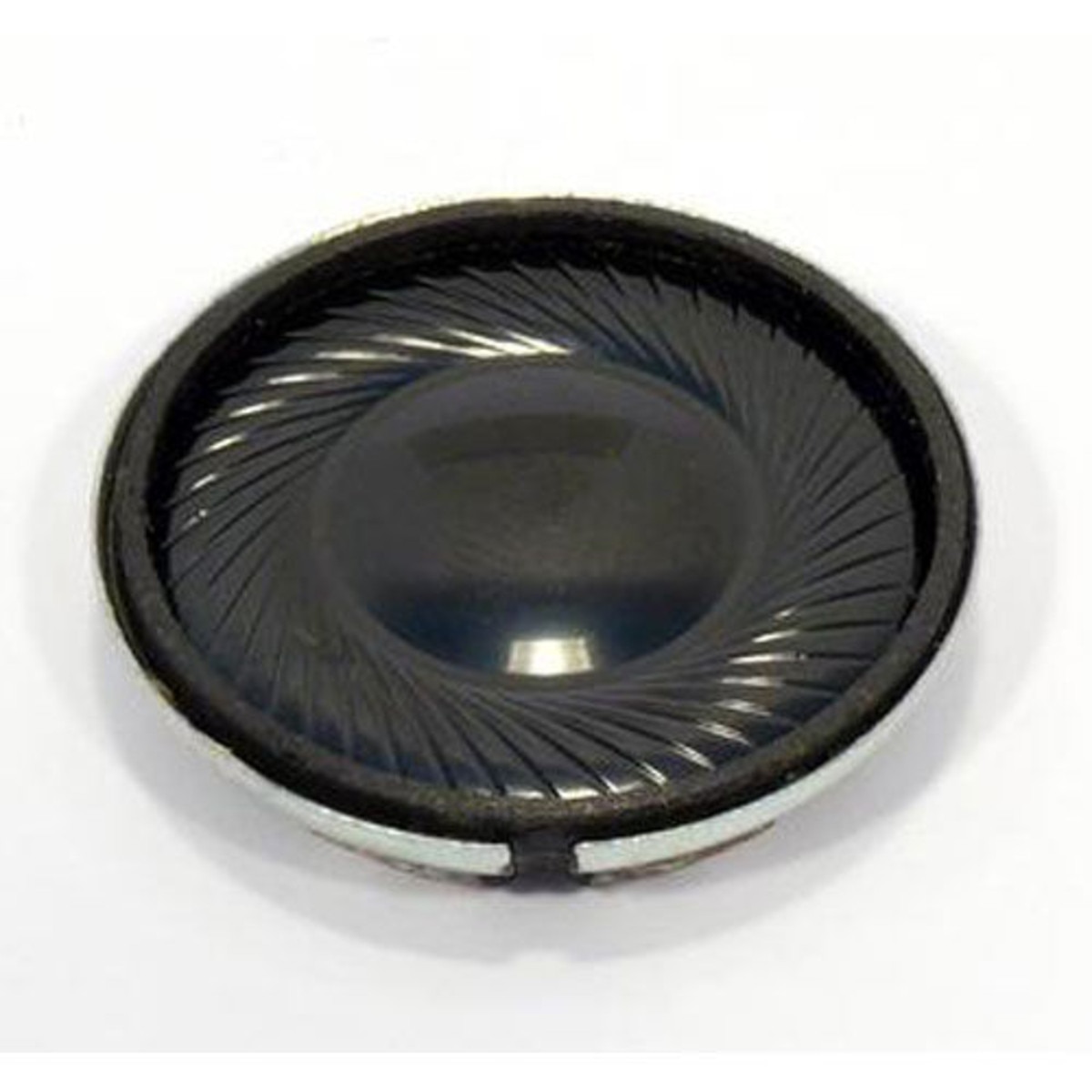

Visaton K 28 WP 1.1" Miniature Speaker 8 Ohm
Visaton K 28 WP 1.1" Miniature Speaker 8 Ohm. Part Number: 292-618 by Visaton.
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Brand | Visaton |
|---|---|
| DimensionUnit | inch |
| Extra Product Name | Visaton K 28 WP 1.1" Miniature Speaker 8 Ohm |
| Weight | 0.02 |
| WeightUnit | lbs |
| depth, length | 0.22 |
| diameter, height, width | 1.1 |
| height_Attrib, width_Attrib | Overall Outside Diameter |
| length_Attrib | Depth |
| moq, multiple, tierMinQty1 | 1 |
| MPN, Model | K 28 |
| qtyInStock | Back-Ordered |
| SKU, Part Number | 292-618 |
| snippet | Visaton K 28 WP 1.1" Miniature Speaker 8 Ohm. Part Number: 292-618 by Visaton. |
| tierMinQty2 | 10 |
| tierMinQty3 | 25 |
| tierPrice1 | 4.52 |
| tierPrice2 | 4.39 |
| tierPrice3 | 4.20 |
| Unit of Measure | Each |
| Nominal Diameter | 1" |
| Power Handling (RMS) | 1 Watts |
| Power Handling (MAX) | 2 Watts |
| Impedance | 8? |
| Frequency Response | 300 to 20,000Hz |
| Sensitivity | 75dB 2.83V/1m |
| Voice Coil Diameter | 0.39" |
| Resonant Frequency (Fs) | 700Hz |
| Maximum Linear Excursion (Xmax) | 0.5mm |
| Cone Material | Poly / Mylar Diaphragm |
| Overall Outside Diameter | 1.10" |
| Baffle Cutout Diameter | 0.83" |
| Depth | 0.22" |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| 292-618 | 1 | Back-Ordered | 1 | 1 @ $4.52, 10 @ $4.39, 25 @ $4.20 |
